What is the Management Information Base or MIB?

If you have ever wondered how network devices like routers, switches, or servers “talk” to monitoring tools, the Management Information Base (MIB) is a key part of the answer. Networks today can be complex, and IT teams require a method to monitor device performance, identify issues, and implement changes efficiently. MIBs make this possible. In this article, we will explore what MIB is in networking, its types, importance, and more.

What is a Management Information Base (MIB) in networking?

A Management Information Base (MIB) is a structured collection of data used to describe and monitor the components of network devices. It acts as a reference library that network management systems rely on to understand device status, performance, configuration, and behavior.

Each item in the  MIB is organized in a hierarchical format, making it easy for tools, especially those using SNMP, to access and manage device information consistently across different manufacturers and platforms.

What is MIB used for?

MIB uses a structured collection of data that describes the resources and behavior of network devices. Here are some key uses of MIB:

• Monitoring device status: A management information base provides real-time information about the uptime, error rates, and connectivity status of devices.

• Tracking performance and capacity: Administrators can assess network load, bandwidth usage, and resource allocation, enabling better planning and optimization of network performance.

• Translating raw data: MIB converts complex raw numerical data into readable formats, making it easier for network managers to analyze and interpret data.

• Troubleshooting network issues: By offering detailed information about devices and their interactions, MIBs help pinpoint the source of problems, such as a specific port, CPU, or memory issue.

• Enhancing reliability and security: MIBs log events, monitor access attempts, and alert administrators to unusual or suspicious activity, ensuring proactive maintenance and protection.

How does a Management Information Base (MIB) work?

A management information base works as a structured framework for organizing device data. Each device has its own MIB, and the objects within it are arranged in a hierarchical tree structure. At the top of the tree are broad categories such as system information, network interfaces, and device protocols. These categories branch into smaller, more detailed objects that hold specific data points.

When a network monitoring tool wants information, it uses a network management protocol such as SNMP (Simple Network Management Protocol) or RMON1 (Remote Network Monitoring 1) to send a request to the device. The device’s SNMP agent retrieves the requested data from its MIB, and sends it back to the monitoring tool.

Some MIB objects are read-only, meaning the monitoring tool can only view the data. Others are read-write, allowing administrators to change settings remotely, like enabling or disabling a network interface.

Because management information bases are standardized, monitoring tools can interact with devices from different vendors without needing unique configurations. This enables efficient and reliable management of large, mixed devices on networks.

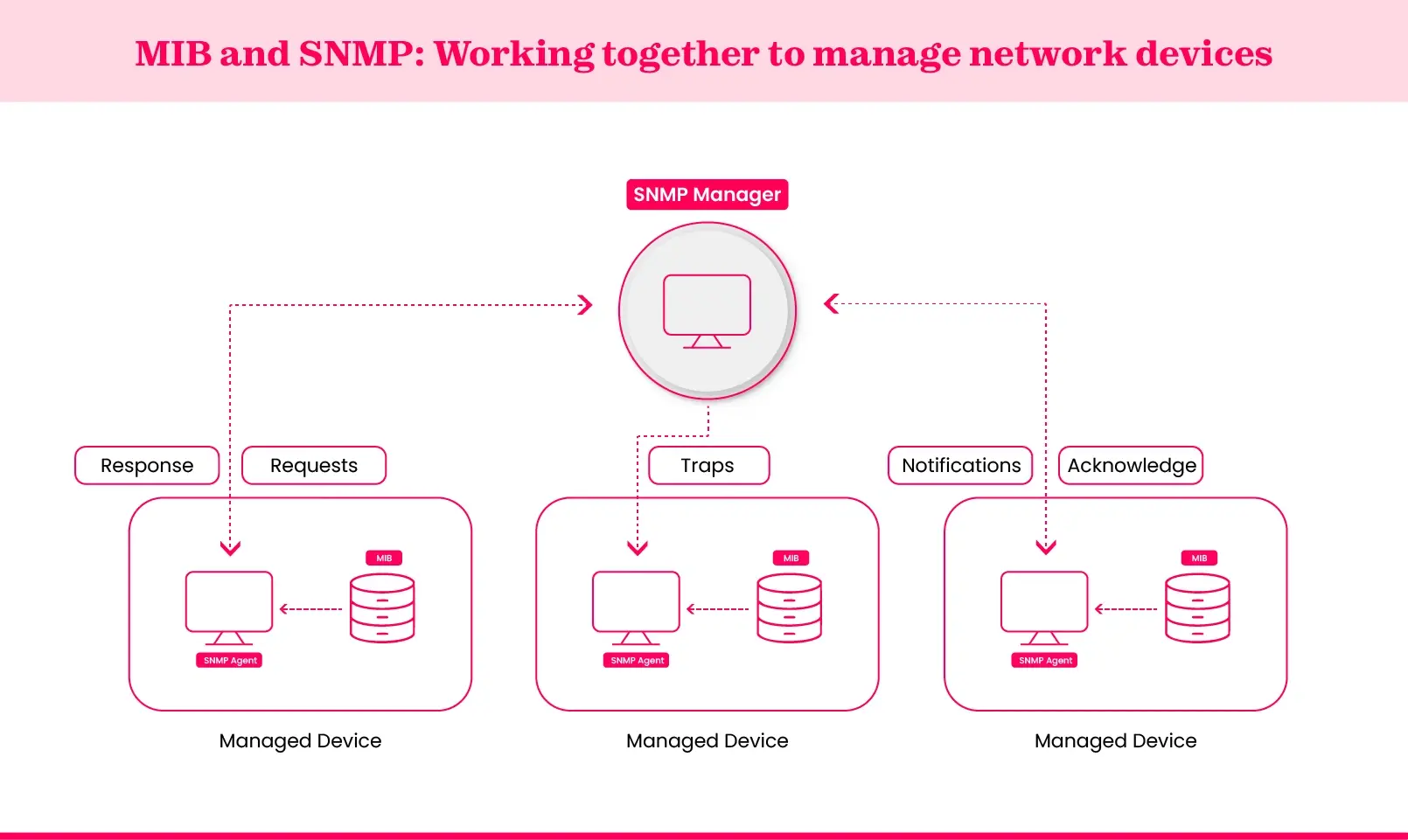

How do MIB and SNMP work together?

The MIB and SNMP form a close partnership in network management. MIB provides the definitions, and SNMP provides the communication. Here is how they complement each other:

• MIB as a reference: Each MIB file acts as a guidebook listing all the data a device can report, such as CPU usage, interface status, or memory load, along with their unique identifiers (OIDs) for SNMP communication.

• Agent interaction: The SNMP agent on a device collects information about its current status and organizes it according to the structure defined in the MIB. It uses OIDs to label each piece of data when sending it to the manager.

• Manager interpretation: The SNMP manager relies on the MIB to decode messages from the agent. Without it, the manager would only see numeric OIDs with no context.

• Data translation: Using the MIB, the manager converts OIDs into understandable text, giving administrators meaningful insights into device performance and operational status.

• Management actions: The manager can also send instructions to the agent by specifying a particular OID and the value to be applied, allowing for configuration changes or updates remotely.

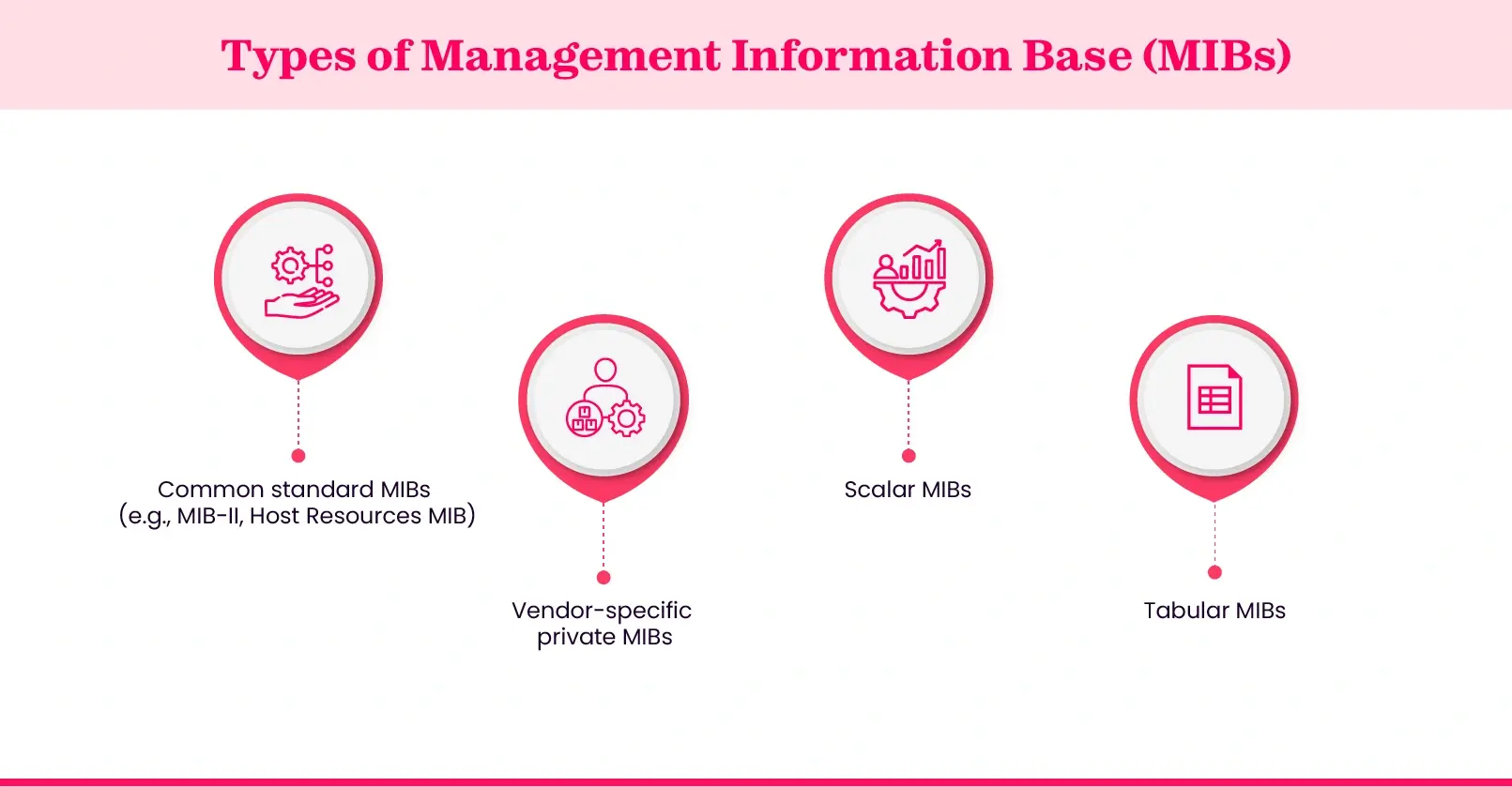

What are the different types of MIBs?

MIBs are not one-size-fits-all. They come in different types based on their structure and purpose. Here, have a look at the types of MIBs:

Common standard MIBs (e.g., MIB-II, Host Resources MIB)

Standards organizations define common standard MIBs and are widely supported across devices. MIB-II is one of the most common MIBs, providing general network statistics such as interface status, IP addresses, and error counts. The Host Resources MIB tracks system-level metrics, such as CPU usage, memory, and storage, helping you monitor the health of servers and workstations.

Vendor-specific private MIBs

Device manufacturers create vendor-specific private MIBs to provide information about proprietary features not covered by standard MIBs. For example, Cisco, Juniper, and HP devices may include private MIBs for advanced routing, firewall functions, or special hardware metrics. Using these MIBs allows you to access vendor-specific capabilities and detailed device insights.

Scalar MIBs

Scalar MIBs represent single data points for a device. Examples include the total number of interfaces, system uptime, or the current CPU load. These are useful when you need one specific metric rather than a list of related values.

Tabular MIBs

Tabular MIBs organize information in tables, where each row represents an entity, such as an interface or routing table entry. For instance, a network interface table lists all interfaces on a router with their current status, speed, and error counters. Tabular MIBs are ideal for monitoring multiple similar components in a structured way.

Why are MIBs important?

MIBs play a crucial role in keeping your network running smoothly. Here is why they matter:

• Enabling real-time performance monitoring and diagnostics: MIBs let you track device metrics like CPU usage, memory load, and interface activity in real time. This helps you quickly identify performance issues or potential failures before they impact your network.

• Facilitating device configuration and troubleshooting: By providing standardized access to device settings and status, MIBs allow you to configure devices remotely and troubleshoot problems without physically accessing them. This speeds up maintenance and reduces downtime.

• Supporting network security and event management: MIBs provide the data needed to detect unusual activity, such as unexpected traffic spikes or unauthorized access attempts. They also enable event logging and alerts, helping you respond promptly to security threats or operational issues.

• Standardizing data exchange across diverse devices: Different devices and vendors can store data in different formats, but MIBs provide a uniform structure. This standardization ensures that SNMP managers can collect and interpret data consistently, making network monitoring more efficient and reliable.

Conclusion

Understanding what MIB is and how it works is essential for anyone managing a network. The Management Information Base provides a standardized way to efficiently monitor, configure, and troubleshoot devices. By combining MIBs with SNMP, you can ensure real-time performance tracking, enhance security, and maintain smooth operations across diverse network environments.
