What is NAT traversal, and how does it work?

In the modern landscape of internet connectivity, devices constantly communicate across complex networks. However, a significant hurdle exists in this communication process: Network Address Translation (NAT). While NAT is essential for preserving IPv4 addresses and providing security, it inadvertently breaks the end-to-end connectivity required by many peer-to-peer (P2P) applications. This is where NAT traversal becomes a critical technology. This guide provides a comprehensive look at what NAT traversal is, how it works, and more.

What is NAT traversal?

NAT traversal is a set of networking techniques that allow devices behind Network Address Translation (NAT) to connect directly over the internet. NAT lets multiple devices share one public IP by modifying packet headers, which blocks unsolicited inbound traffic, creating issues for peer-to-peer apps.

The main goal of NAT traversal is to enable direct, bidirectional connections. It helps devices discover their public IP and port, then creates a pathway through the NAT so incoming traffic reaches the correct internal device, allowing apps like VoIP, gaming, and file sharing to function seamlessly.

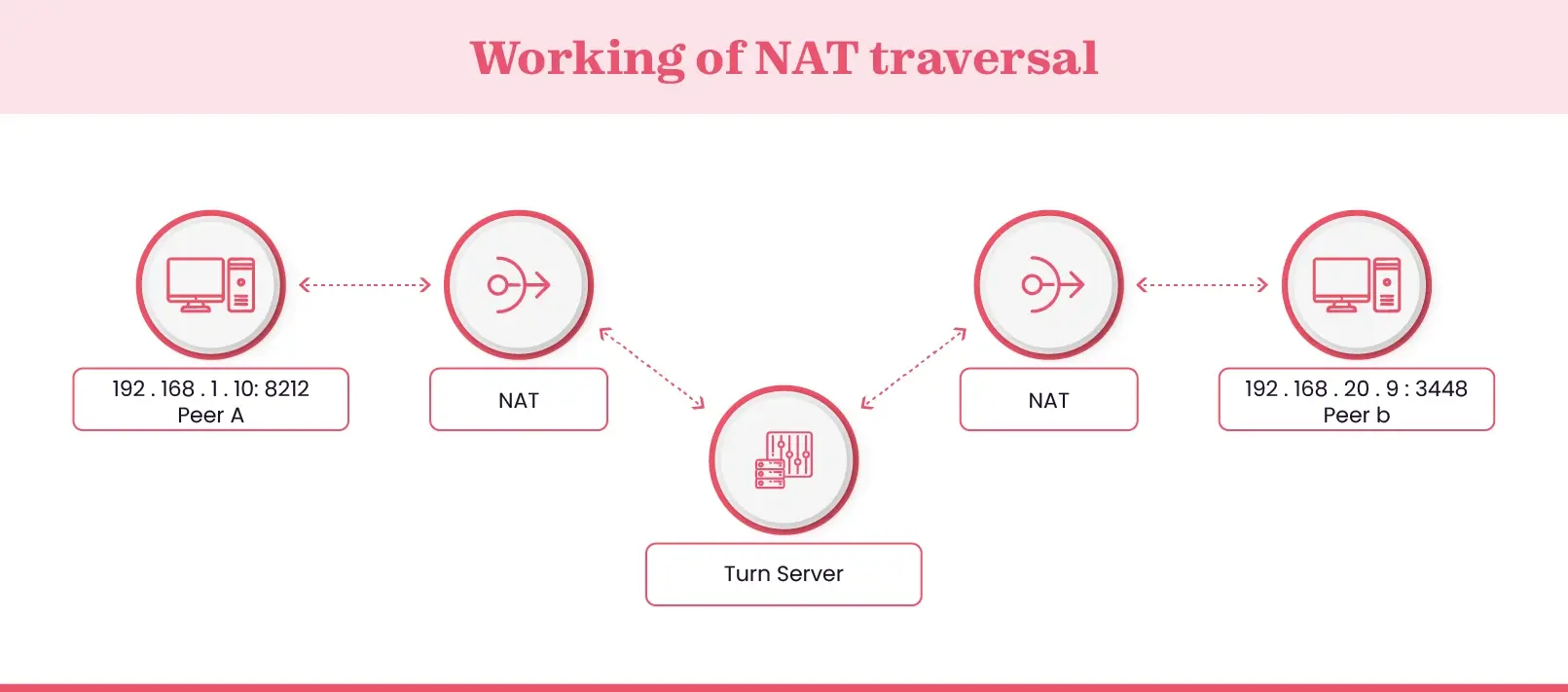

How does NAT traversal work?

NAT traversal isn’t a single technique but a set of methods used to enable direct communication across NAT devices. The choice of method depends on the network environment and the strictness of NAT rules. Here are the most common approaches:

• Port mapping: NAT keeps track of which ports each internal device uses. Applications can request a specific port be opened, allowing external devices to send data directly to the intended host.

• Keep-alive messages: Small periodic packets are sent to the NAT device to prevent idle connections from closing, keeping the communication channel active for longer.

• UDP hole punching: Both devices send UDP packets to each other simultaneously, creating temporary openings in their NATs. This allows inbound traffic from the peer to pass through and establish a direct connection.

• STUN (Session Traversal Utilities for NAT): A public server helps a device identify its external IP and port. This information is shared with peers, enabling direct communication even behind NATs.

What are the types of NAT?

NAT generally falls into two main categories based on how it maps private IP addresses to public ones.

Static NAT

In Static NAT, a specific private IP address is permanently mapped to a specific public IP address. This one-to-one mapping is typically used for servers (like web or mail servers) hosted within a private network that need to be consistently accessible from the internet.

Dynamic NAT

Dynamic NAT involves a pool of public IP addresses. When an internal device wants to access the internet, the router assigns it an available public IP address from the pool. This mapping is temporary. Most home and small office routers use a variation of this called PAT (Port Address Translation), or "NAT Overload," where all private devices share one public IP but are distinguished by unique port numbers.

Why does NAT create connectivity barriers?

Network Address Translation (NAT) plays a crucial role in modern networking by allowing multiple devices on a private network to share a single public IP address and adding a layer of security by masking internal IPs. However, this convenience comes with trade-offs. NAT modifies packet headers as they pass through the router, which prevents external devices from initiating unsolicited connections directly to devices behind the NAT.

This creates a connectivity barrier for peer-to-peer (P2P) applications, real-time communication tools like VoIP, multiplayer games, and file-sharing platforms. Since devices behind different NATs cannot see each other’s private addresses, they rely on indirect routing or specialized traversal techniques to establish a connection. Essentially, NAT enforces a “client-only” model for outbound traffic, blocking inbound traffic unless a pathway is explicitly opened.

Understanding this limitation is key to implementing NAT traversal methods like port mapping, UDP hole punching, or STUN, which restore end-to-end connectivity while maintaining the benefits of NAT.

What is the impact of NAT behaviour on traversal success?

Not all routers behave the same way. The difficulty of NAT traversal depends heavily on how the router manages mappings.

• Full cone NAT (One-to-One NAT): Once an internal device sends a packet, any external host can reply to that mapped port. Easiest to traverse.

• Restricted cone NAT: Only external hosts that the internal device has contacted can send packets back.

• Port-restricted cone NAT: Only the exact IP and port the internal device contacted can send replies. Common in home routers.

• Symmetric NAT: Assigns a unique port for each external destination. Direct connections usually fail, requiring a TURN server for traffic relay.

Why is NAT traversal crucial?

NAT traversal is the invisible glue holding together modern real-time internet communication.

• Seamless VoIP & video conferencing: NAT traversal allows protocols like SIP and WebRTC to establish direct media streams (RTP) between users. This reduces dependency on centralized servers, lowers latency, and ensures clear, real-time audio and video communication.

• Smooth online gaming & P2P sharing: Multiplayer games and peer-to-peer applications rely on direct connections between devices. NAT traversal ensures that consoles and computers can exchange packets efficiently, minimizing lag, improving responsiveness, and speeding up file transfers like torrents.

• IoT & remote device connectivity: Smart home devices, security cameras, and industrial IoT sensors often sit behind private networks. NAT traversal enables secure remote access from smartphones or other networks without complex manual configuration.

• Reliable VPN connections: Standard IPsec VPNs can break behind NAT because header modifications cause integrity checks to fail. NAT traversal (NAT-T) wraps IPsec packets in UDP, allowing NAT devices to forward traffic while keeping the encrypted payload intact, ensuring secure and stable remote access.

Conclusion

While Network Address Translation (NAT) is essential for conserving IP addresses and securing networks, it creates obstacles for direct device-to-device communication. NAT traversal techniques, ranging from simple keep-alive signals to advanced protocols like STUN, TURN, and ICE, overcome these barriers. They enable applications to discover peers and establish connections, ensuring seamless, low-latency, real-time experiences across gaming, VoIP, IoT, and other digital services.
