What is Network Bandwidth? A complete guide

In today’s connected world, bandwidth determines how fast and efficiently data moves across your network. Whether streaming, gaming, or managing a business network, understanding bandwidth is key. This guide explains what is network bandwidth, how it’s measured, and how to optimize it for peak performance.

What is network bandwidth?

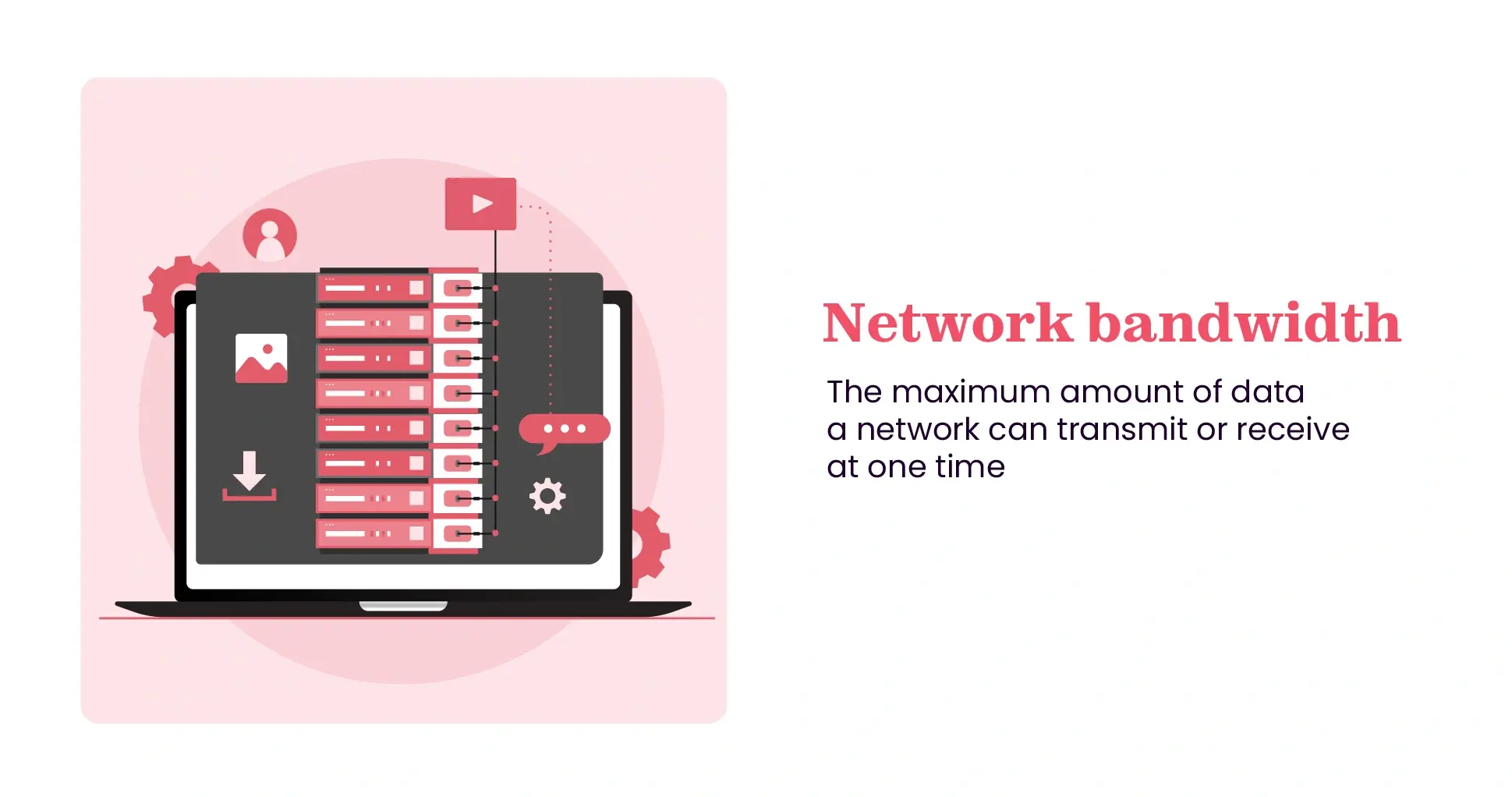

Network bandwidth is the maximum capacity of a wired or wireless connection to transmit data over a network in a given amount of time. It represents the potential volume of information that can be sent or received at any moment.

Importantly, bandwidth is not the same as network speed. Instead of measuring how fast data travels, it measures how much data can flow through the connection simultaneously.

A higher-bandwidth connection can handle a larger volume of data at once, resulting in faster perceived performance because more information reaches your device in the same timeframe.

To visualize bandwidth, think of your internet connection as a highway and data packets as cars traveling on it:

• The number of lanes represents bandwidth. An eight-lane highway (high bandwidth) can carry many more cars than a single-lane road (low bandwidth).

• Traffic flows more smoothly on the wider highway, reducing congestion.

• Even if both highways have the same speed limit (velocity), the wider highway delivers more cars to the destination at once because of its greater capacity.

How is bandwidth measured?

Bandwidth is measured by the number of bits transmitted per second:

• bps (bits per second): The basic unit of bandwidth.

• Kbps (Kilobits per second): 1,000 bits per second.

• Mbps (Megabits per second): 1,000,000 bits per second. This is standard for most residential broadband.

• Gbps (Gigabits per second): 1,000,000,000 bits per second. Common in fiber-optic and enterprise networks.

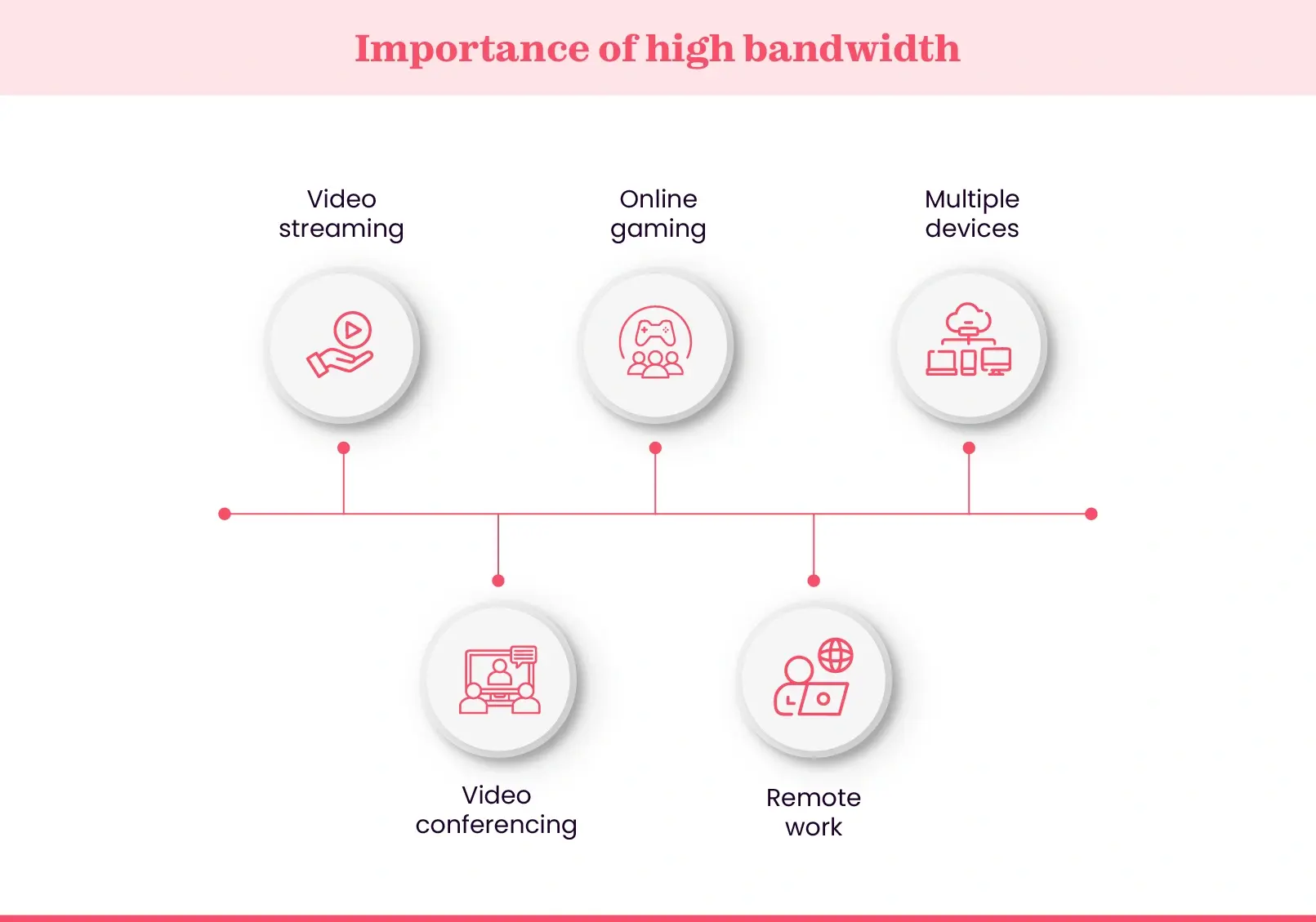

Why is high bandwidth important for your internet experience?

High bandwidth determines how many data-heavy tasks your network can handle at once without slowing down. As file sizes grow and digital content becomes richer, “wider pipes” are essential for a smooth online experience.

• Video streaming: HD and 4K streams require substantial bandwidth. Low bandwidth causes buffering, pixelation, and reduced resolution.

• Online gaming: While low latency is key, adequate bandwidth prevents lag spikes and packet loss, allowing seamless communication with game servers.

• Multiple devices: Smart homes with phones, laptops, TVs, and cameras need high bandwidth to prevent one device from slowing down the rest.

• Video conferencing & remote work: Platforms like Zoom or Teams require steady upload/download capacity. Low bandwidth leads to frozen video, choppy audio, and dropped calls.

Bandwidth vs. Speed vs. Throughput vs. Latency

Bandwidth is the network’s maximum data capacity, speed is how fast data can travel, throughput is the actual data successfully delivered, and latency is the time it takes for data to reach its destination.

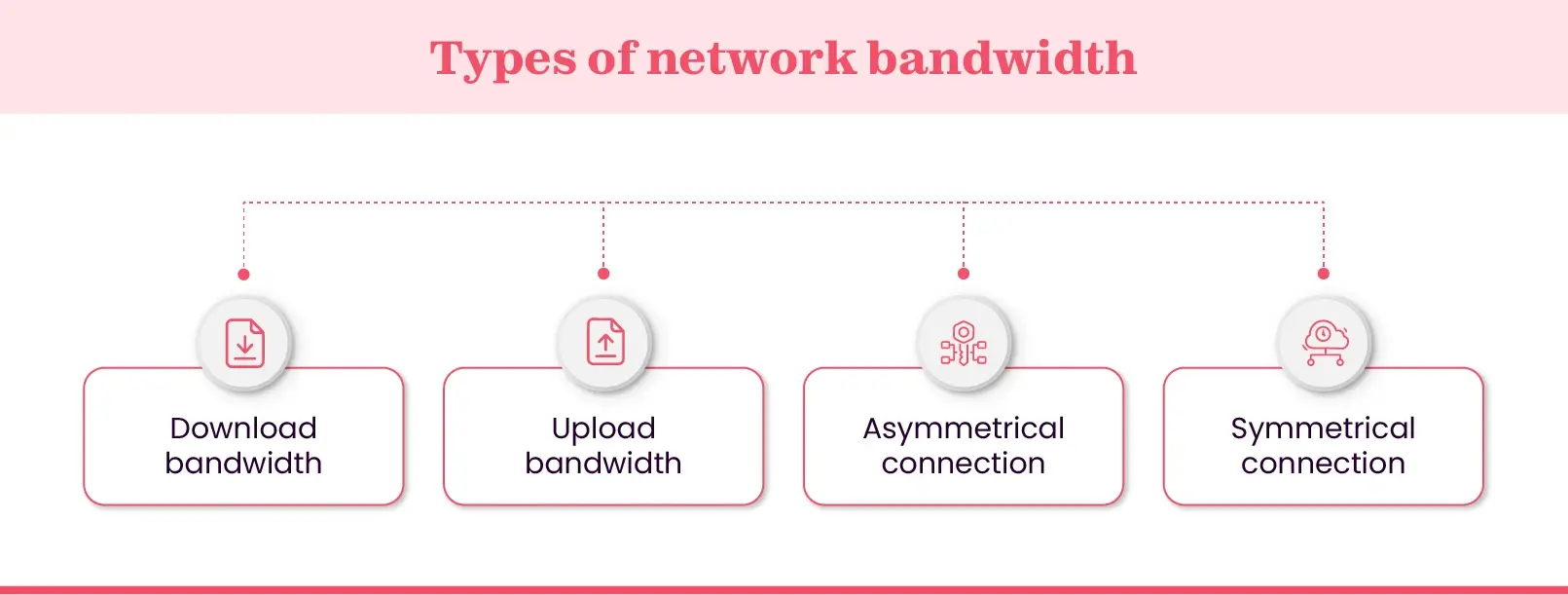

What are the different types of network bandwidth?

Bandwidth is generally divided into two channels: data coming in and data going out.

Download vs. upload bandwidth

• Download bandwidth: Measures the capacity to receive data from the internet. It’s used for loading websites, streaming videos, downloading files, and receiving emails.

• Upload bandwidth: Measures the capacity to send data to the internet. It’s needed for video calls, posting to social media, backing up files to the cloud, and sending emails.

Symmetrical vs. asymmetrical connections

• Asymmetrical connection: Download speeds are much higher than upload speeds. This is common in cable and DSL plans, as most users consume more content than they create.

• Symmetrical connection: Download and upload speeds are equal. Found in fiber-optic and business-grade connections, it’s ideal for content creators, remote workers, and businesses that need fast two-way data transfer.

How much bandwidth do you actually need?

The amount of bandwidth you need depends on the types of online activities you perform and how many devices are connected to your network.

• Basic web browsing and email: 1-5 Mbps per device is usually sufficient for reading emails, browsing websites, and social media.

• HD and 4K video streaming: Streaming in HD requires 5-8 Mbps, while 4K Ultra HD can demand 15-25 Mbps per device.

• Competitive online gaming: 3-10 Mbps is generally enough, but low latency is critical for smooth gameplay.

• Large file downloads and uploads: Higher bandwidth, often 50 Mbps or more, ensures faster transfers for cloud backups, software downloads, and video uploads.

How to measure your current bandwidth?

You can check whether you’re getting the internet speed you pay for by running a bandwidth test.

Using online speed test tools

Websites like Speedtest.net, Fast.com, or Google’s built-in speed test let you measure your connection. For the most accurate results:

• Close all bandwidth-heavy applications, such as streaming or downloads.

• Connect directly to your router via Ethernet if possible.

• Run tests at different times to spot peak congestion periods.

Interpreting your speed test results

• Download speed: Indicates how quickly you can receive data. Compare it to your ISP plan to see if you’re getting the expected service.

• Upload speed: Shows how fast you can send data, important for video calls, cloud backups, and uploads.

• Ping (Latency): Measures delay in milliseconds. Lower is better, ideally under 20ms for gaming and under 100ms for regular browsing.

What factors limit your network bandwidth?

Several factors can affect the total bandwidth available to your devices, impacting speed, reliability, and overall network performance:

• Internet plan limits: Your ISP caps bandwidth based on your plan. No matter how fast your hardware is, you can’t exceed this limit.

• Network congestion: Multiple devices using the network simultaneously can reduce available bandwidth, especially during peak hours.

• Hardware limitations: Routers, modems, and network cards have maximum capacities. Older equipment may not handle higher speeds.

• Wi-Fi interference: Physical obstacles, distance from the router, and interference from other wireless devices can lower effective bandwidth.

• Background applications: Downloads, streaming, and cloud backups running in the background consume bandwidth, leaving less for other tasks.

• Server-side limitations: The speed of the websites or servers you access can also restrict how quickly data reaches you.

What are the steps to increase and optimize your bandwidth?

If your internet feels slow, these steps can help reclaim and maximize your bandwidth:

• Choose the right internet plan: Assess your household’s total bandwidth needs. If multiple devices struggle simultaneously, upgrading your plan may be the easiest solution.

• Upgrade or optimize your router/modem: Use modern standards like Wi-Fi 6, reboot regularly, and keep firmware updated to fix performance issues.

• Use wired connections for key devices: Connect bandwidth-heavy devices, like smart TVs, gaming consoles, or desktops, via Ethernet to free up Wi-Fi for mobile devices.

• Manage bandwidth-hungry apps: Prioritize critical traffic using QoS settings and limit background processes like cloud backups or software updates.

• Limit active devices: Disconnect unused devices and use guest networks to prevent them from consuming unnecessary bandwidth.

Conclusion

Network bandwidth is the backbone of our digital lives. It determines how much data can flow through your connection at once, powering everything from simple emails to high-definition streaming and real-time video conferencing. Often mistaken for speed, bandwidth is really about capacity, not velocity.

By learning how to measure, monitor network, and optimize it, you can eliminate bottlenecks, minimize frustration, and ensure a smooth, seamless online experience for every device on your network.
