What is port forwarding and how does it work?

Port forwarding is a networking technique that allows external devices to access services on a private network. Whether it is hosting a game server, connecting to a home security camera, or running a remote desktop session, port forwarding plays a crucial role in making private network resources accessible from the internet. This comprehensive guide explains what port forwarding is, how port forwarding works, the types available, and more.

What is port forwarding?

Port forwarding is the process of redirecting communication requests from one address and port number combination to another. So, what does port forwarding do? It allows external devices to reach a specific device or service within a private network.

For example, if you want to access a home server from outside your network, port forwarding ensures that requests sent to your router on a certain port are directed to your server.

To understand port forwarding, it is important to know what ports are. In networking, a port is a virtual endpoint that identifies a specific process or service on a device. Each port is assigned a number, like 80 for HTTP traffic or 22 for SSH connections. Ports allow multiple services to run on a single device without interfering with each other.

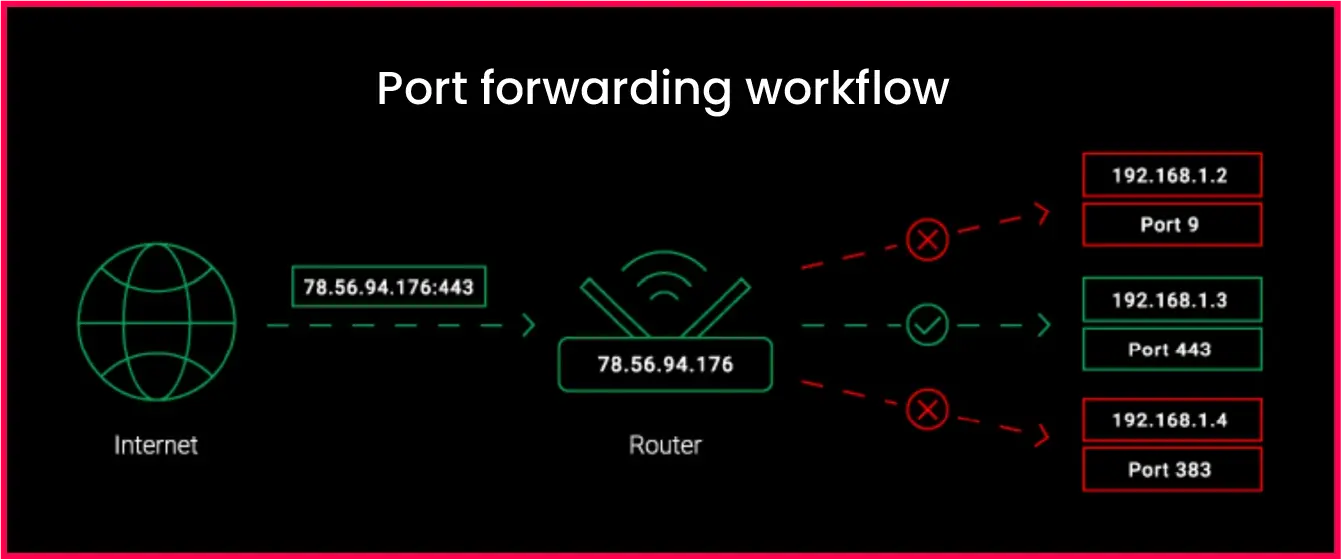

How does port forwarding work?

Port forwarding works by creating a rule on your router that maps an external port to an internal IP address and port on your network. Here, have a look at the steps:

1. Identify the device and service: Decide which device on your network needs to be accessed externally and determine which service or application (like a web server, game server, or camera feed) requires a specific port.

2. Assign a static internal IP address: Ensure the device has a fixed internal IP so the router always forwards traffic to the correct device. Dynamic IPs may change and break the port forwarding rule.

3. Access the router's settings: Log in to your router’s admin panel, usually through a web browser, using the router’s IP address and your admin credentials.

4. Create a port forwarding rule: Specify the external port number, internal IP address, internal port number, and protocol (TCP, UDP, or both) that corresponds to the service you want to forward.

5. Save and apply the settings: Once the rule is added, save your settings. Most routers will require a restart or a reboot for the new rule to take effect.

6. Test the forwarded port:  Verify the setup by accessing the service externally. You can use port checking tools or attempt to connect from a device outside your network.

Port triggering vs. port forwarding

Both port triggering and port forwarding allow external access to devices on a private network, but they differ in how and when the ports are opened.

What are the common applications of port forwarding?

Port forwarding is widely used to make private network resources accessible from the internet. Here are some common applications:

1. Enabling remote access to home and office networks: Port forwarding allows you to connect to devices on your private network from anywhere in the world. This is useful for accessing files, managing applications, or using internal servers without physically being at home or the office.

2. Enhancing online gaming and hosting game servers: Many online games require open ports to allow direct connections between players. Port forwarding improves connection stability, reduces latency, and enables users to host multiplayer servers for friends or the public.

3. Facilitating P2P file sharing and torrenting: Peer-to-peer applications, like torrent clients, need direct connections to other users for efficient file sharing. Port forwarding ensures that these applications can communicate with peers reliably, improving download and upload speeds.

4. Accessing networked devices: IoT, IP cameras, and servers: Home automation devices, security cameras, and personal servers often need remote access for monitoring and control. Port forwarding allows you to securely connect to these devices from outside your network, providing convenience and flexibility.

5. Supporting remote desktop and VPN services: Remote desktop and VPN services rely on open ports to establish secure connections to your computer or network. Port forwarding enables these connections, making it possible to work remotely, troubleshoot systems, or access internal resources safely.

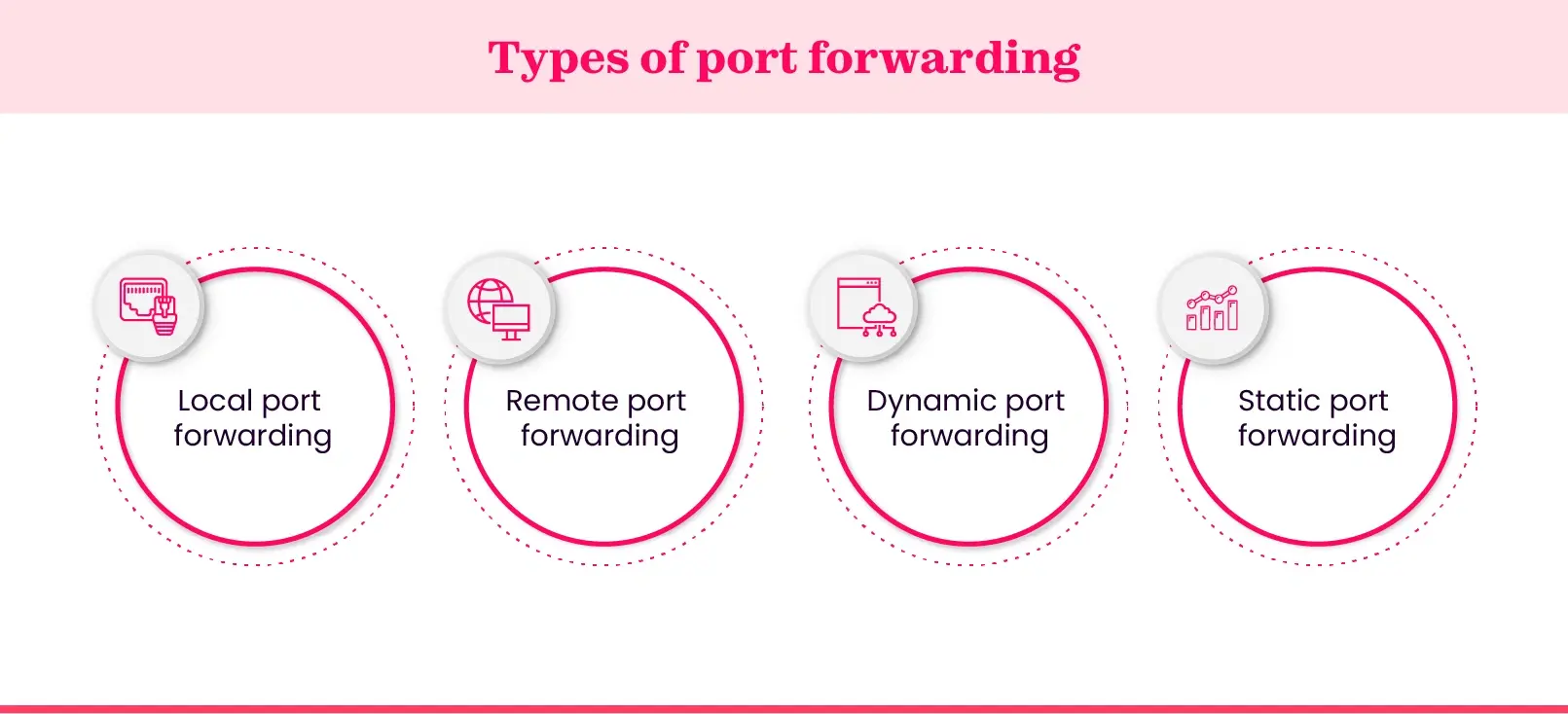

What are the different types of port forwarding?

Port forwarding comes in several types, each designed for specific networking needs. Here’s an overview:

• Local port forwarding: Redirects traffic from a local device to a remote server through a specified port. It is commonly used to access services on a remote network from a local machine securely.

• Remote port forwarding: This type of port forwarding allows an external device to connect to a specific port on your internal network. This is useful for providing access to internal services without changing network configurations on the host side.

• Dynamic port forwarding: Creates a flexible port mapping system that allows multiple ports to be forwarded dynamically as needed. Often used with SOCKS proxies to route traffic securely through a single gateway.

• Static port forwarding: A fixed port is always forwarded to a designated internal IP address. This is ideal for services that require constant availability, such as game servers or home servers.

How to configure port forwarding?

Setting up port forwarding requires a few precise steps to ensure your network traffic reaches the correct device safely. Here’s how to do it:

Step 1: Set a static internal IP address

Assign a fixed IP address to the device that will receive the forwarded traffic. This ensures the router always knows which device to send incoming connections to, preventing issues caused by dynamic IP changes.

Step 2: Navigate your router's administration interface

Access your router’s settings by entering its IP address into a web browser. Log in with your administrator credentials to reach the configuration panel, where port forwarding settings are typically located under “Advanced,” “NAT,” or “Port Forwarding.”

Step 3: Create a new port forwarding rule

Add a new rule specifying the external port (the port that will be accessed from the internet), the internal port (the port used by the device), and the internal IP address. Select the appropriate protocol (TCP, UDP, or both) depending on the service you want to forward.

Step 4: Test Your Port-Forwarded Connection

After saving the rule, verify the setup using online port checking tools or by accessing the service from an external network. Ensure that the device or service responds correctly to confirm that the port forwarding is functioning.

How to test port forwarding?

Once you have configured port forwarding, it’s important to verify that it works correctly. Testing ensures that external devices can reach the intended service or device on your network. Here’s how to do it:

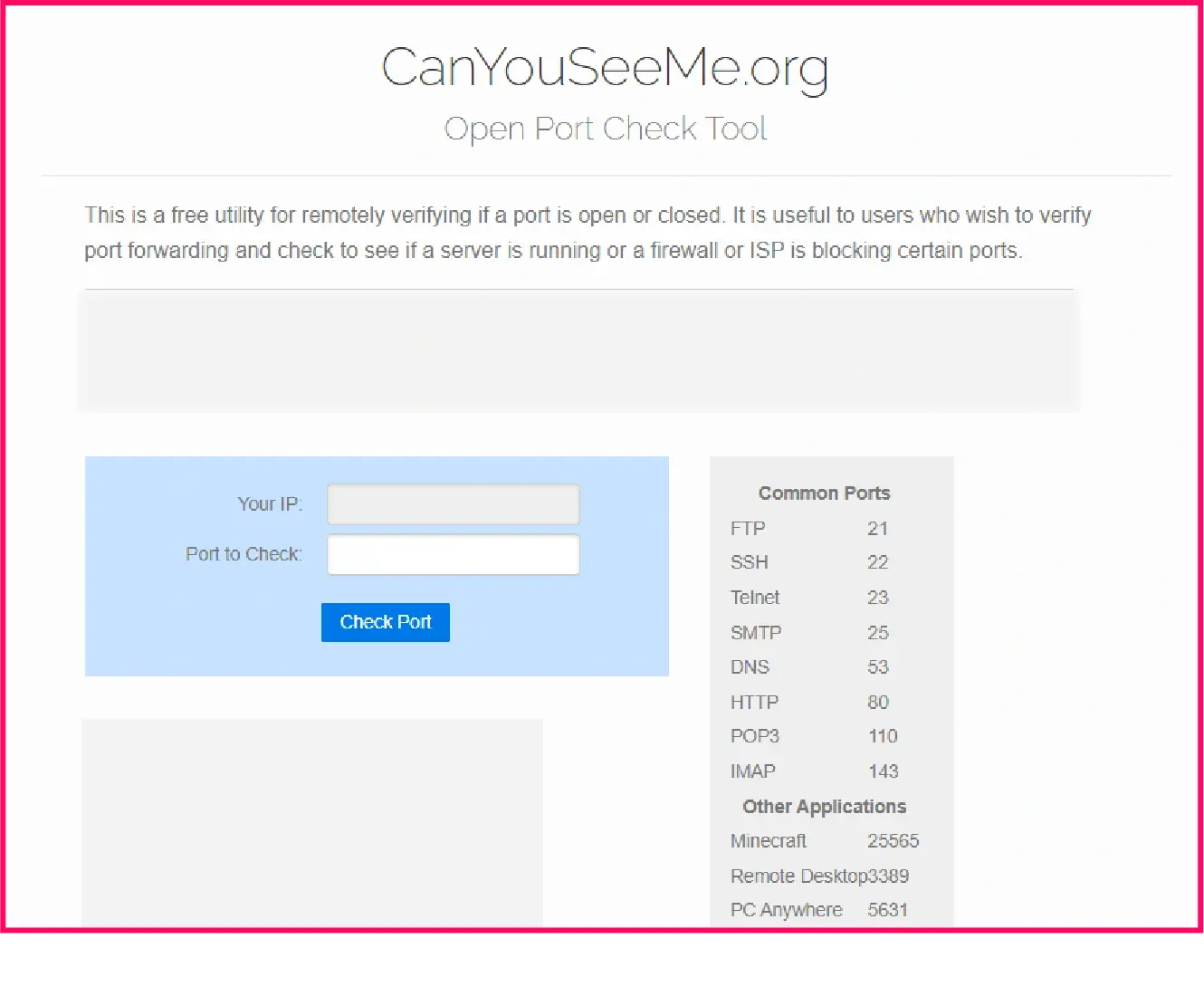

1. Use an online port checker

Tools like canyouseeme.org or yougetsignal.com allow you to check if a specific port on your public IP is open and reachable. Enter the port number you forwarded and click “Check.”

1. Test from an external device
   Try accessing the service or device from a device that is not connected to your local network. For example, connect via mobile data or another Wi-Fi network to see if the forwarded port responds correctly.

2. Check the application or service
   For servers, games, or remote desktop setups, attempt to connect using the configured port. If the connection is successful, port forwarding is working.

3. Troubleshoot if needed
   If the port test fails, check that the internal IP is correct, the port forwarding rule is active, and any firewalls on the device or router are not blocking the connection.

Conclusion

Port forwarding is a powerful networking tool that allows you to open doors from the internet to devices on your private network. While it can seem technical, understanding what port forwarding is and how port forwarding can help you run servers, play games online, or access devices remotely with confidence.

Always remember to use port forwarding wisely and securely to protect your network from unwanted access.
