What is CONFIG.SYS and how does it work?

For early PC enthusiasts, CONFIG.SYS is more than just a filename, it’s a symbol of hands-on computing. This crucial system file in MS-DOS and early Windows controlled hardware and system settings during boot, allowing users to optimize memory, manage drivers, and fine-tune performance. In this guide, let us explore what CONFIG.SYS is, how it works and more.

What is CONFIG.SYS?

CONFIG.SYS is a plain text file located in the root directory of the boot drive in MS-DOS and DOS-based Windows systems. Its main role is to load device drivers and configure critical system parameters before the operating system kernel initializes. In essence, CONFIG.SYS controlled how the computer’s hardware was detected, allocated, and utilized from the very start of the boot process, shaping the foundation for system performance and stability.

In early MS-DOS systems, CONFIG.SYS was essential for making the computer work properly and efficiently. Its instructions allowed users to:

• Add hardware: Load drivers for devices like CD-ROMs, sound cards, and mice.

• Manage memory: Optimize conventional, expanded, and extended RAM for applications and games.

• Set system resources: Allocate buffers, file handles, and other essentials for smooth operation.

• Customize the environment: Define the command interpreter, set regional settings, and control error handling.

Brief history of CONFIG.SYS

CONFIG.SYS made its debut with MS-DOS 2.0 in 1983, providing users with a way to customize system settings at boot. As personal computers evolved and hardware became more diverse, the need for configurable boot options grew.

CONFIG.SYS remained a core component in every subsequent MS-DOS release and continued to function in Windows 3.x, Windows 95, Windows 98, and Windows Millennium Edition (Me), all of which were built on a DOS foundation.

Its relevance began to wane with the arrival of Windows NT, which introduced a new architecture and configuration methods, ultimately making CONFIG.SYS obsolete in modern operating systems.

Example file structure

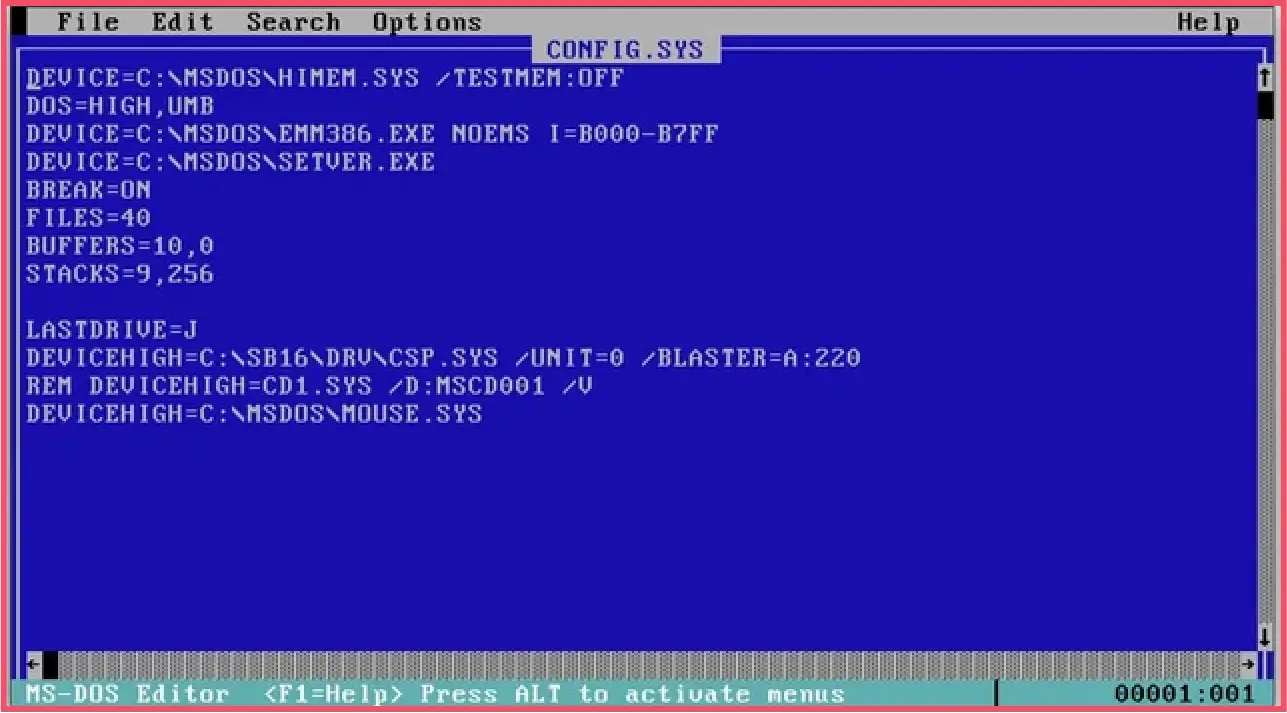

A typical CONFIG.SYS file might look something like this:

Each line represents a directive or command that the system would process sequentially during startup.

How CONFIG.SYS works during system boot?

The magic of CONFIG.SYS unfolded early in a computer’s startup, long before the familiar DOS prompt or Windows desktop appeared. Its execution was a foundational step, ensuring the system hardware and resources were properly initialized.

When an MS-DOS or DOS-based Windows computer powered on, it followed a precise sequence:

1. BIOS initialization: The Basic Input/Output System (BIOS) performs a Power-On Self-Test (POST) to verify essential hardware components.

2. Boot sector: BIOS locates a bootable drive and loads the boot sector.

3. IO.SYS / IBMBIO.COM: The boot sector loads the hidden system file, IO.SYS (or IBMBIO.COM in IBM DOS), which manages low-level hardware communication.

4. MSDOS.SYS / IBMDOS.COM: This file loads the DOS kernel, providing core operating system functions.

5. CONFIG.SYS execution: CONFIG.SYS is read and executed, instructing the system on memory management, device driver loading, and other critical resource configurations.

6. AUTOEXEC.BAT: Handles further environment setup, launching additional programs and utilities.

7. Command Prompt / GUI: Finally, the system presents the command prompt or loads Windows.

Interaction with other boot files:

CONFIG.SYS worked closely with IO.SYS and MSDOS.SYS rather than in isolation:

• IO.SYS / IBMBIO.COM: Served as the interface between DOS and hardware, providing basic input/output services.

• MSDOS.SYS / IBMDOS.COM: Contained the DOS kernel, offering essential services like file management, memory allocation, and process control.

• CONFIG.SYS: Acted as the customization layer, directing MSDOS.SYS which device drivers to load (communicating via IO.SYS) and configuring system tables such as FILES and BUFFERS, effectively tailoring the generic DOS environment to specific hardware and user needs.

Through this process, CONFIG.SYS transformed the computer’s startup into a carefully orchestrated sequence, ensuring optimal hardware utilization and a stable, functional operating environment.

What are the key directives and commands in CONFIG.SYS?

The power of CONFIG.SYS lay in its various directives and commands, each serving a specific purpose in shaping the system's behavior. Mastering these commands was essential for any DOS power user.

How to use CONFIG.SYS?

In the DOS era, CONFIG.SYS was essential for configuring hardware and managing memory during the boot process. It was a simple plain text file located in the root of the boot drive (e.g., C:\CONFIG.SYS), with each command on a separate line and comments added using REM. Users typically edited it with basic text editors like EDIT to load device drivers, optimize memory, and set system parameters.

Because CONFIG.SYS directly affected startup, misconfigurations could prevent booting or cause system instability. Tools such as the F5 “clean boot” (which bypassed CONFIG.SYS) and F8 “single-step” mode helped users isolate problematic lines, while commenting out Windows commands or creating a minimal configuration allowed systems to recover. On modern Windows versions, including NT-based systems and later, CONFIG.SYS is no longer used; hardware and system configuration are managed through the Windows Registry, making the file obsolete for contemporary PCs.

Why CONFIG.SYS was critical for system performance?

In early PCs, with limited memory and computing resources, CONFIG.SYS was essential for optimizing system performance. It helped manage memory by loading drivers and DOS into the High Memory Area (HMA) and Upper Memory Blocks (UMBs), maximizing conventional memory for applications and games.

Directives like FILES and BUFFERS allowed fine-tuning of system resources, while device driver commands ensured hardware compatibility for CD-ROMs, sound cards, and SCSI devices. CONFIG.SYS also supported locale settings and stack management, preventing crashes and enhancing stability. Proper configuration transformed a basic PC into a highly functional, customized system.

CONFIG.SYS vs AUTOEXEC.BAT

CONFIG.SYS and AUTOEXEC.BAT were often configured together and are frequently confused, but they served distinct purposes in the MS-DOS boot process.

Troubleshooting common CONFIG.SYS issues

Even though CONFIG.SYS is no longer in use, understanding its common troubleshooting scenarios helps appreciate the challenges of early computing and the advancements in modern OS stability.

• Boot failures: Incorrect paths or driver errors could prevent startup (e.g., HIMEM.SYS issues).

• Error messages: Messages like "Bad or missing filename" or "Stack Overflow" indicated directive problems.

• Hardware not working: Typos or missing DEVICE lines disabled associated peripherals.

• System instability: Conflicting drivers or memory managers caused crashes or GPFs.

• Clean boot (F5): Bypasses CONFIG.SYS and AUTOEXEC.BAT to isolate issues.

• Single-step boot (F8): Confirms each line of CONFIG.SYS to find problematic commands.

• Minimal CONFIG.SYS: Boot with a bare-bones file and gradually re-add commands.

• Commenting lines (REM): Temporarily disables suspected problematic lines for testing.

• Boot disks: Use floppy disks with known-good CONFIG.SYS/AUTOEXEC.BAT to recover systems.

Best practices for editing CONFIG.SYS

To minimize troubleshooting, users adopted several best practices:

• Always backup: Before making any changes, a copy of CONFIG.SYS (e.g., CONFIG.BAK) was made.

• Test incrementally: New drivers or changes were added one at a time, followed by a reboot, to quickly identify the source of any new problems.

• Use comments: REM lines were used liberally to explain the purpose of complex directives or to temporarily disable lines.

• Keep it lean: Only essential drivers and settings were included to conserve memory and reduce potential conflicts.

Conclusion

CONFIG.SYS stands as a testament to the creativity and precision required to manage computing resources in the early days of personal computing. From its introduction with MS-DOS to its eventual obsolescence in modern Windows, this simple text file was a powerhouse of system configuration.

It enabled users to load essential device drivers, optimize limited memory, and customize the operating environment, directly shaping a computer’s ability to run applications and games efficiently. Though contemporary operating systems handle these complexities automatically, the legacy of CONFIG.SYS highlights the ingenuity, challenges, and triumphs that defined the evolution of PC resource management.
