What is an expansion bus and how does it work?

Modern computers are marvels of engineering, capable of performing countless tasks simultaneously. Behind this seamless performance lies a critical component often overlooked: the expansion bus. But what exactly is an expansion bus, and why is it so important for connectivity and system expansion? Let’s break it down.

What is an expansion bus?

An expansion bus is a key component in a computer, serving as a communication channel that allows the CPU to interact with peripheral devices, memory, and add-on cards. Think of it as a highway within the motherboard, enabling data, addresses, and control signals to flow efficiently between all system components. Without it, devices would operate in isolation, limiting the computer’s functionality.

The primary role of expansion buses is to extend a computer’s capabilities beyond its basic configuration. While modern motherboards include many built-in peripherals, expansion buses and their slots remain essential for:

• Customization: Adapting a system to specific needs, whether for gaming, professional design, or scientific computing.

• Upgradability: Boosting performance or adding new features as technology advances, without replacing the entire computer.

• Supporting specialized hardware: Connecting devices that demand dedicated processing power or high-speed data transfer, beyond what integrated components can handle.

What are the key components of the expansion bus?

An expansion bus is made up of components that work together to enable smooth communication between the CPU, memory, and peripheral devices. The most visible elements are expansion slots and expansion cards.

Expansion slots are the physical sockets on a motherboard where add-on circuit boards are inserted. These slots provide direct electrical connections, allowing expansion cards to communicate with the system. When a card is installed, its metallic pins make contact with the slot, creating a pathway for data, addresses, and control signals. Even when unused, the underlying bus remains active, managing communication for built-in components.

Expansion cards, or adapter cards, are circuit boards that add new capabilities or enhance existing ones. They allow computers to perform tasks beyond their baseline configuration. Common examples include graphics cards for high-quality visuals, network cards for faster or more stable internet, sound cards for enhanced audio, storage adapter cards for additional drives, USB expansion cards for more peripherals, TV tuner or video capture cards, and specialized RAID or industrial I/O cards for servers and professional systems.

Together, expansion slots and cards provide flexibility, upgradability, and the ability to integrate specialized hardware, enabling computers to evolve and meet diverse user needs beyond their default setup.

Additional read: Everything about Network Monitoring

How does an expansion bus work?

An expansion bus functions as a structured pathway for electronic communication within a computer, enabling the CPU, memory, and peripheral devices to exchange data efficiently.

At its core, the bus carries data, address, and control signals in precise patterns, linking components and ensuring information reaches the correct destination. To manage these exchanges, expansion buses rely on communication protocols, which are sets of rules that govern how devices send, receive, and interpret signals. These protocols ensure compatibility and seamless interaction between diverse hardware components and the CPU.

Each device connected to the bus is assigned a unique address, allowing the CPU to target specific devices when sending commands or data. Additionally, devices use interrupts to signal the CPU when they require attention, such as when data is ready or an error occurs, preventing the CPU from constantly polling each device and enabling timely, efficient responses.

The expansion bus works closely with the CPU and motherboard chipset, which acts as a traffic controller. The chipset coordinates the flow of information between the high-speed CPU and potentially slower peripheral devices, ensuring smooth communication. The CPU initiates most transfers, while the chipset manages timing and synchronization, allowing the system to integrate a wide range of hardware efficiently.

In essence, the expansion bus provides the backbone for connectivity and coordination, allowing computers to handle multiple devices and tasks with speed and precision.

Additional read: How does modern network monitoring work?

What are the benefits of the expansion bus?

Expansion buses enhance a computer’s flexibility, performance, and longevity by enabling users to add or upgrade hardware as needed.

• Extended functionality: They allow specialized components, like high-performance graphics cards, fast network adapters, or dedicated sound cards, transforming a basic PC into a gaming rig, workstation, or multimedia system.

• Customization and upgradability: Expansion buses let users upgrade individual components, such as GPUs, storage, or network cards, without replacing the entire system, improving performance, reducing costs, and extending system lifespan.

• Support for specialized hardware: They enable niche applications by connecting devices like TV tuners, RAID controllers, or industrial I/O cards, allowing computers to handle professional, scientific, or industrial tasks beyond standard capabilities.

What are the types of expansion bus architectures?

Expansion buses come in several architectures, each designed to meet specific performance, compatibility, and connectivity needs. Understanding these types helps in selecting the right solution for a system’s requirements.

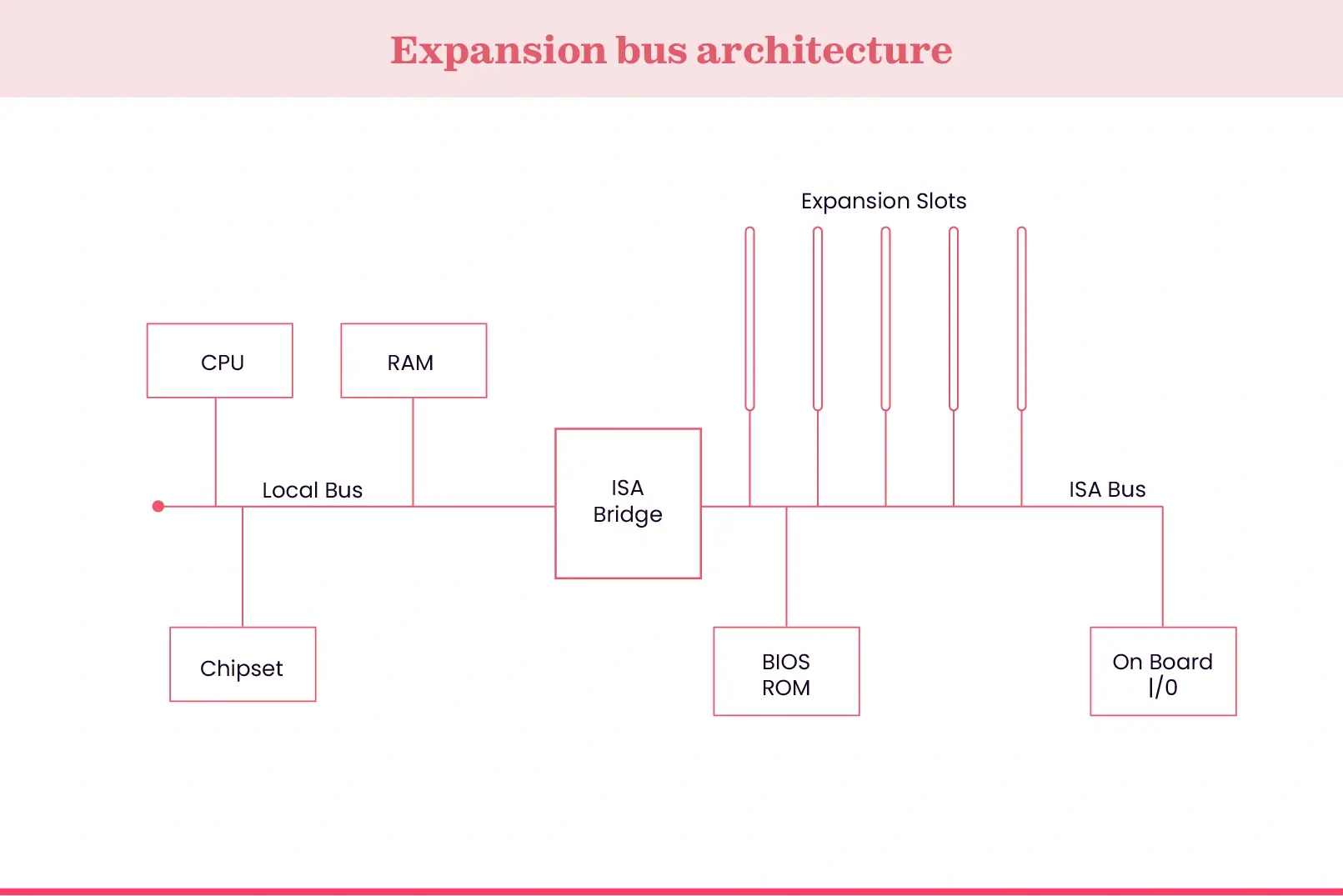

1. ISA (Industry Standard Architecture)

One of the earliest bus designs, ISA was widely used in the 1980s and 1990s for connecting basic peripherals like modems, sound cards, and network adapters. It offers a simple 8- or 16-bit interface but has limited speed and bandwidth, which makes it largely obsolete in modern systems. ISA played a foundational role in establishing standardized internal communication.

2. PCI (Peripheral Component Interconnect)

PCI became a popular standard in the 1990s, providing faster, more reliable communication than ISA. It supports multiple devices simultaneously and is suitable for internal hardware such as network cards, sound cards, and older graphics cards. PCI remains relevant in some legacy systems and industrial applications.

3. PCI Express (PCIe)

The modern standard for high-performance computing, PCIe offers scalable, high-speed data transfer through serial lanes. Each lane can transmit data in both directions simultaneously, enabling multiple devices, like GPUs, NVMe SSDs, and high-speed network cards, to operate efficiently without bottlenecks. PCIe is the preferred choice for gaming rigs, professional workstations, and servers.

4. AGP (Accelerated Graphics Port)

AGP was designed specifically to accelerate graphics performance by providing a dedicated channel for video data between the GPU and the CPU. While it offered significant performance improvements in its time, it has been replaced by PCIe, which provides greater speed and flexibility for multiple device types.

5. External Buses (USB and Thunderbolt)

Although technically external, buses like USB and Thunderbolt act as expansion pathways for connecting peripherals. USB supports a wide range of devices, from printers to storage drives, while Thunderbolt provides ultra-high-speed connectivity for external GPUs, docking stations, and professional multimedia equipment. These buses complement internal architectures by extending system flexibility and connectivity.

What are the common applications and uses of expansion slots?

Expansion slots are fundamental to customizing and enhancing a computer's capabilities for a wide array of tasks.

How to install and manage expansion cards?

Installing and managing expansion cards is a straightforward process, but doing it carefully ensures optimal performance and prevents hardware issues. Follow these key steps:

• Prepare your computer: Before installing an expansion card, always power down your computer and unplug it from the power source. To prevent static damage to sensitive components, ground yourself using an anti-static wrist strap or by touching a metal part of the case. Proper preparation is essential for protecting your hardware.

• Identify the correct slot: Determine which expansion slot your card requires, such as PCIe x16 for a GPU or PCIe x1 for a network or sound card. Check that the slot is free and that there’s enough space around it for the card, including room for cooling solutions or other nearby components.

• Insert the card: Remove the metal bracket corresponding to the slot on the back of your case. Align the card’s connectors with the slot and gently but firmly press it into place until fully seated. Secure the card to the chassis using screws or the case’s retention mechanism to prevent movement.

• Connect any additional cables: Some expansion cards require additional connections, such as power from the PSU or links to other components like storage drives, monitors, or audio systems. Follow the manufacturer’s instructions carefully to ensure proper installation and functionality.

• Power on and install drivers: Once the card is installed, boot your computer and allow the operating system to detect the new hardware. Install the latest drivers from the manufacturer to guarantee compatibility and unlock the full functionality of your card.

• Manage and monitor the card: Use system tools like Windows Device Manager or macOS System Information to verify that the card is recognized and functioning correctly. For high-performance cards, monitor temperature, usage, and performance regularly, and keep drivers and firmware updated to maintain stability.

• Tips for smooth operation: Avoid overcrowding expansion slots and ensure proper airflow around high-performance cards. Document installed cards for future upgrades or troubleshooting, and periodically check all connections, especially if the computer is moved or transported.

Conclusion

While modern motherboards increasingly integrate graphics, audio, networking, and USB ports, expansion buses remain essential for high-performance and specialized applications. PCIe and other expansion slots provide the flexibility, speed, and modularity needed for gaming, professional workstations, servers, and niche industries, ensuring computers can adapt to evolving hardware and user demands.
