What is XMP and how to enable it?

When you build or upgrade a PC, you expect it to perform at its best, especially if you have invested in faster RAM. But here’s a surprise many users discover later: your memory might not actually be running at its advertised speed.

The reason is simple: most systems default to slow, standard RAM settings unless you manually enable a feature called XMP.

In this guide, we will break down what XMP is, how it works, how to enable it, and what you should consider before turning it on.

What is XMP (Extreme Memory Profile)?

XMP (Extreme Memory Profile) is a technology developed by Intel that allows users to automatically apply higher-performance settings to their RAM with a single option in the BIOS or UEFI.

Think of it as a pre-tested “turbo mode” for your memory. RAM manufacturers store factory-verified overclocking profiles directly on the memory sticks. When you enable XMP, your PC loads those optimized settings: higher clock speeds, lower latency timings, and correct voltages, instantly.

Without XMP, most RAM runs at slow, fail-safe defaults.

RAM comes with two types of speed settings:

• JEDEC – These are standard baseline speeds defined by the industry (e.g., 2133 MHz or 2666 MHz). These speeds are guaranteed to work on any system.


• XMP profiles – These are higher, manufacturer-rated speeds like 3200 MHz, 3600 MHz, 4000 MHz, etc. These settings are safe but require BIOS support to run correctly.

Example:

You buy 3600 MHz RAM.

Your system will likely run it at 2133/2666 MHz unless you enable XMP.

How do XMP profiles work with your hardware?

Every XMP-enabled RAM kit stores one or more predefined profiles. Each profile includes: memory frequency (speed), primary and secondary timings, and required voltage

When you enable XMP:

1. The motherboard reads the profile from the RAM.

2. It automatically adjusts the memory controller settings.

3. The CPU and motherboard apply the optimal voltage/timing combination.

This means you don't have to manually tweak anything, no guessing, no trial-and-error BIOS tuning.

It is overclocking without the usual complexity.

XMP support depends on:

• Motherboard BIOS

• CPU memory controller

• RAM modules

If one component doesn’t support XMP, the profile won’t load.

How to enable XMP in your PC's BIOS/UEFI?

Enabling XMP is usually a quick and simple process. Most systems only require a few clicks, and you don’t need advanced overclocking knowledge.

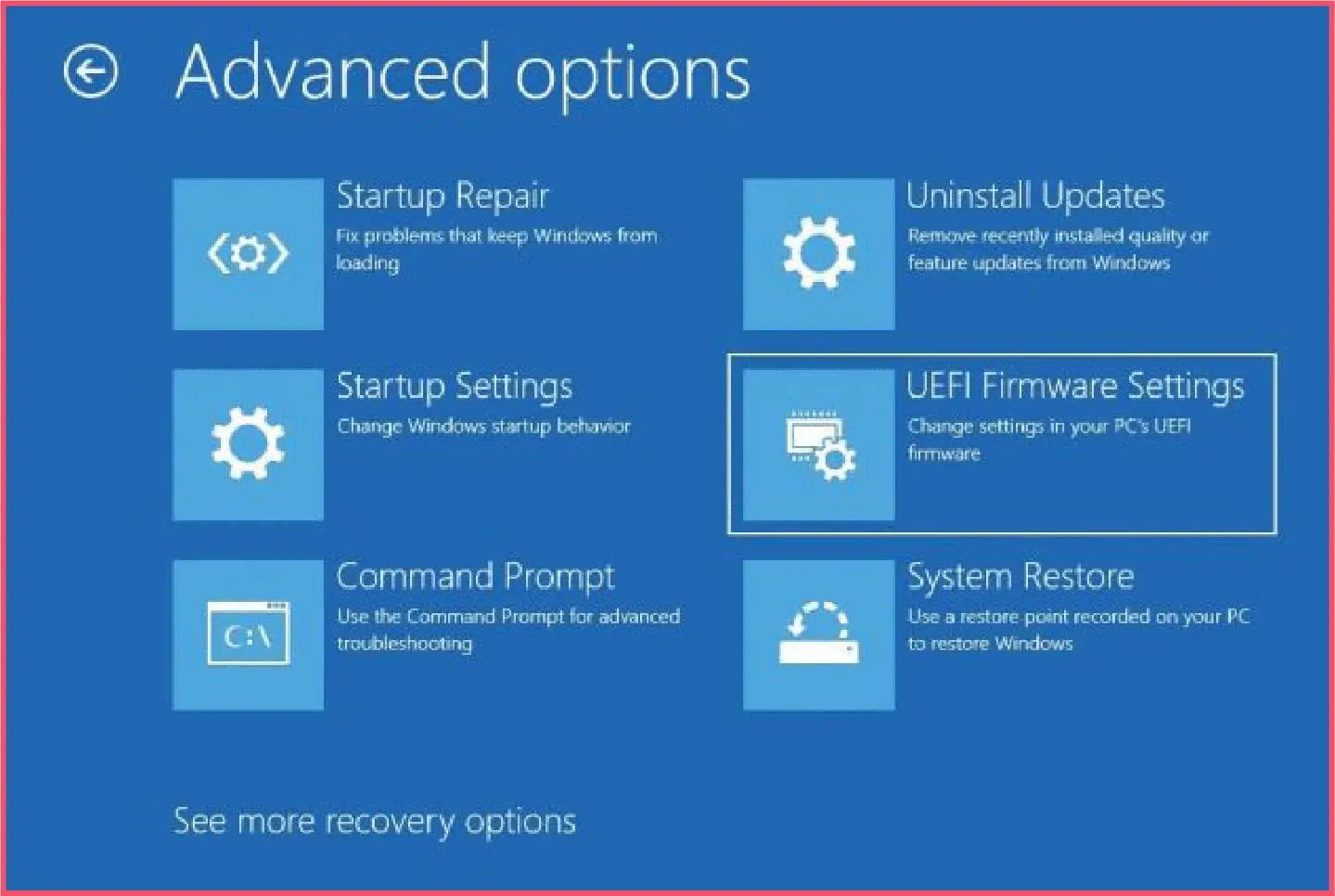

Step 1: Access your system’s BIOS or UEFI

1. Restart your PC.

2. As soon as the system begins to boot, press the BIOS key repeatedly. Standard keys include: Delete (Del), F2, F10, or Esc.

3. Your system will enter the BIOS/UEFI interface, which is where all motherboard-level settings are adjusted.

Note: If you see the Windows login screen, you missed the timing, just restart and try again.

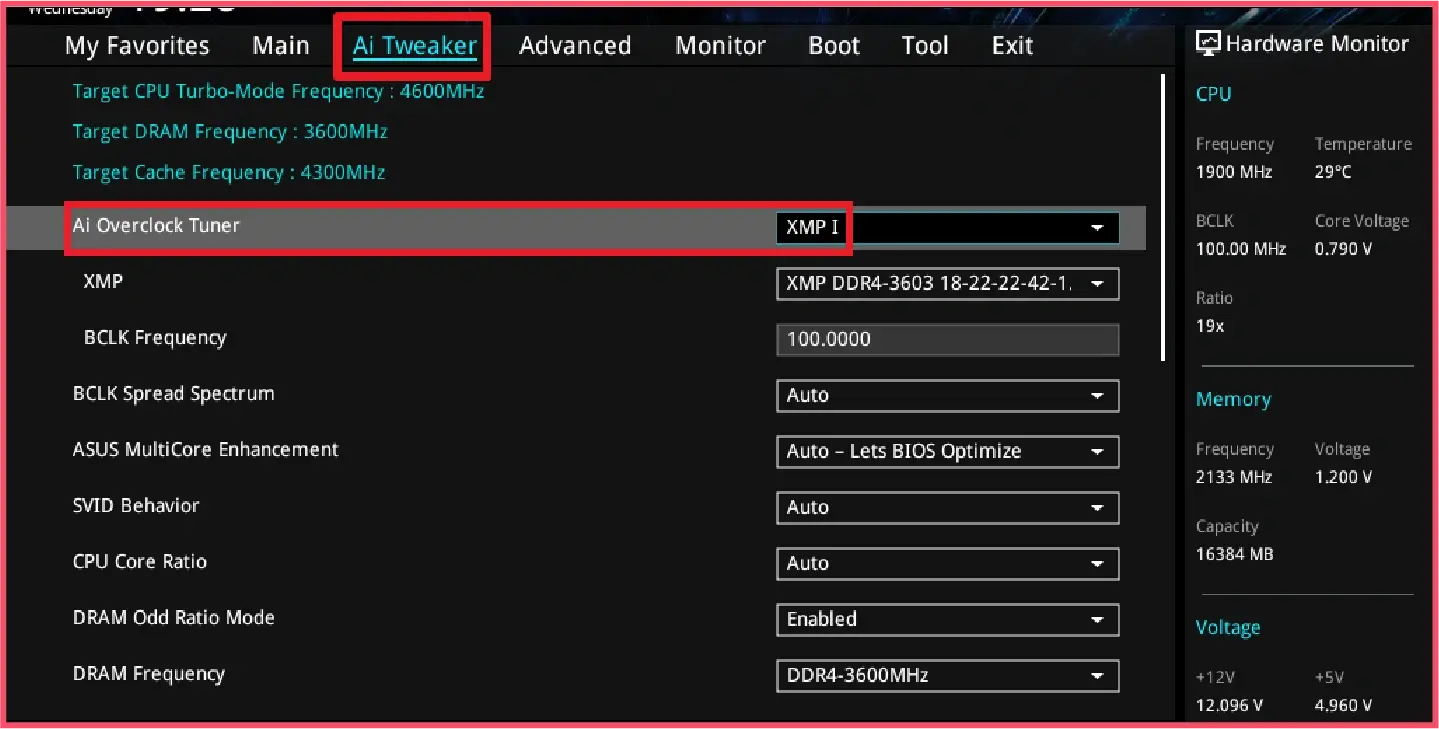

Locate and activate the XMP setting

Every motherboard brand places the XMP option in slightly different menus. Look for sections labelled:

• AI Tweaker (ASUS)

• Extreme Tweaker (ASUS higher-end boards)

• OC Tweaker (ASRock)

• Tweaker (Gigabyte)

• OC (MSI)

• Advanced Memory Settings / Overclocking Settings

Inside these menus, you will see the XMP option listed as:

• XMP

• XMP 1 / XMP 2 (multiple profiles)

• A-XMP (MSI’s version for AMD boards)

• DOCP (ASUS AMD boards)

• EXPO (AMD’s official memory profile format)

Simply switch XMP from “Disabled” to “Enabled” or select the profile that matches your RAM’s rated speed (for example: 3200 MHz, 3600 MHz, etc.).

Step 3: Save your settings and restart

After enabling XMP:

1. Press F10 or choose Save & Exit from the BIOS menu.

2. Your PC will reboot, sometimes more than once. This is normal; the motherboard is training memory settings to ensure stability.

When Windows loads, your system should now be using the correct high-speed RAM profile.

How to check if XMP is working properly?

After enabling XMP, it’s a good idea to verify that your RAM is indeed running at the correct speed. There are two simple and reliable methods: Windows Task Manager and CPU-Z.

Method 1: Check RAM speed in Windows Task Manager

1. Press Ctrl + Shift + Esc to open the Task Manager.

2. Go to the Performance tab.

3. Select Memory on the left.

4. Look for Speed.

If XMP is active, you should see the RAM’s advertised speed (e.g., 3200 MHz, 3600 MHz, 4000 MHz). If you still see a low value like 2133 MHz or 2666 MHz, XMP was not applied successfully.

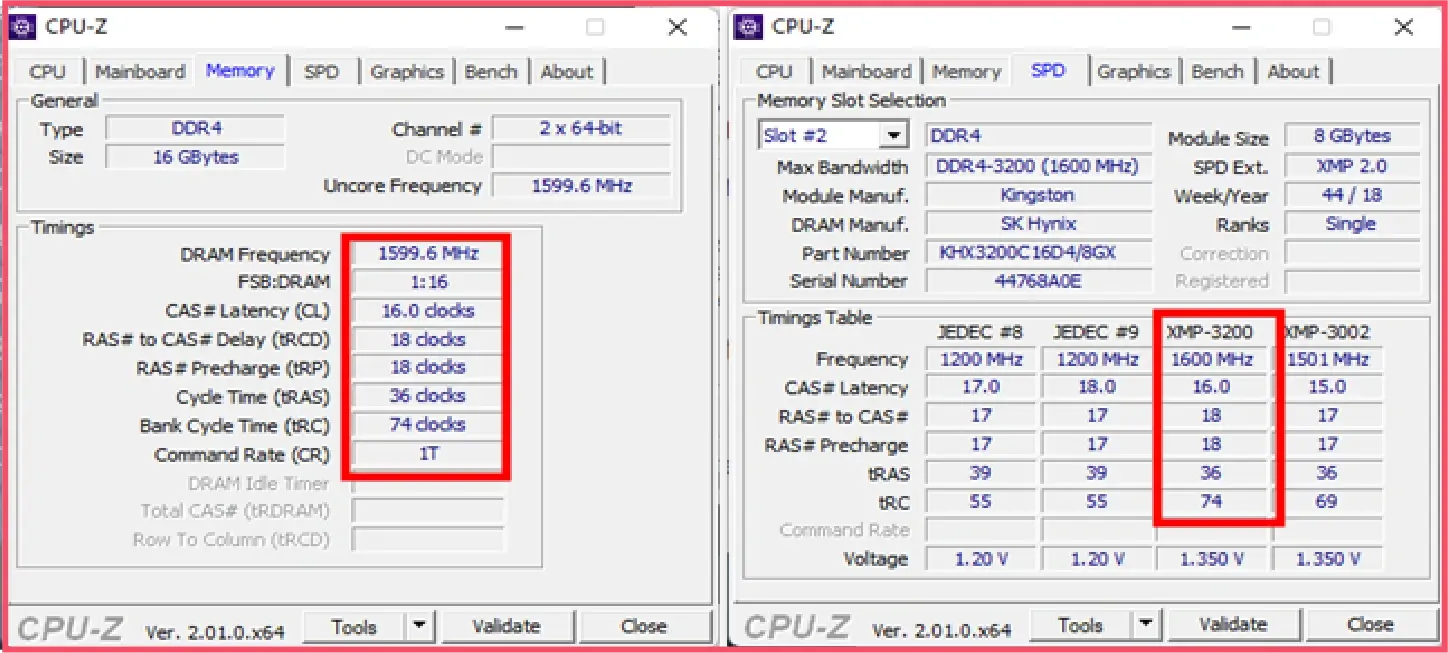

Method 2: Check details using CPU-Z (third-party software)

CPU-Z provides more precise memory information:

1. Download and install CPU-Z.

2. Open the application and go to the Memory tab.

3. Look at DRAM Frequency.

Important: DDR memory is “double data rate,” so the actual frequency shown is half of the effective speed.

To verify XMP:

• If you enabled 3200 MHz RAM, CPU-Z should show around 1600 MHz.

• If you enabled 3600 MHz RAM, CPU-Z should show around 1800 MHz.

This confirms the memory is running at its XMP profile specifications.

What are the benefits of enabling XMP?

Turning on XMP is one of the easiest ways to boost your PC’s performance without extra hardware. It instantly applies optimized memory settings so your RAM operates at the speed it was designed for.

• XMP allows your RAM to run at its full advertised speed instead of the slower default JEDEC speed, ensuring you get the performance you paid for.

• It provides a simple, one-click method to apply optimized overclocking settings without needing manual tuning or advanced BIOS knowledge.

• XMP profiles are pre-tested and validated by the RAM manufacturer, which makes them a safe and reliable way to boost memory performance.

• Enabling XMP can improve overall system responsiveness, especially during multitasking or running memory-intensive applications.

• Many modern games benefit from faster RAM, leading to smoother frame rates, reduced stuttering, and better minimum FPS performance.

• Video editing, 3D rendering, and other content-creation tasks see noticeable gains due to increased memory bandwidth and lower latency.

• IT workloads such as virtualization, code compilation, and database operations can perform more efficiently with higher-speed memory profiles.

• XMP can help reduce bottlenecks in systems with high-performance CPUs or GPUs, allowing them to operate closer to their maximum potential.

• The process of enabling XMP is reversible and low risk, making it an easy performance upgrade for most users.

• Using XMP helps maintain system stability because the settings are configured to match the exact capability of your specific RAM kit.

What are some key considerations before using XMP?

Before enabling XMP, it’s important to understand how it affects your hardware and system stability. While it’s generally safe, a few factors should be reviewed to ensure the best experience.

• Make sure your motherboard supports memory overclocking because many entry-level or OEM systems lock out XMP functionality.

• Verify that your CPU’s memory controller can handle the RAM’s XMP speed, as some processors have stricter limits on supported frequencies.

• Check that your RAM modules include valid XMP profiles, since standard JEDEC-only memory cannot be overclocked automatically.

• Review your motherboard’s QVL (Qualified Vendor List) to confirm that your specific RAM kit has been tested for compatibility.

• Be aware that enabling XMP slightly increases memory voltage, which may cause instability on older or lower-quality hardware.

• Understand that not all systems will boot successfully with XMP enabled, especially when using high-frequency kits above 3600 MHz.

• Know that mixing different RAM brands or speeds can make XMP profiles fail or force the system to downclock all modules.

• Keep in mind that enabling XMP is still a form of overclocking and may occasionally cause crashes, reboots, or blue screens.

• Consider running a POST or memory stability test after enabling XMP to ensure your system can handle the applied profile.

• Remember that BIOS updates can improve memory compatibility, so updating firmware may resolve issues when XMP fails to load.

Troubleshooting common issues after enabling XMP

If you run into problems after enabling XMP, these steps can help diagnose and resolve the issue quickly.

• If your PC fails to boot after enabling XMP, you should reset or clear the CMOS to restore default BIOS settings.

• If the system keeps restarting in a loop, you should enter the BIOS and try selecting a lower XMP profile or manually lowering the memory frequency.

• If you experience random crashes or blue screens, you should test memory stability using tools like MemTest86 to confirm whether the RAM can handle the XMP settings.

• If Task Manager shows a lower speed than expected, you should check CPU-Z to verify the actual DRAM frequency and confirm that the correct profile is applied.

• If only some RAM sticks are recognized, you should reseat the memory modules and ensure they are installed in the correct dual-channel slots.

• If your system behaves differently after updates, you should update the motherboard BIOS, as newer firmware often improves RAM compatibility.

• If temperatures rise after enabling XMP, you should check airflow and ensure your system cooling is capable of handling the increased voltage.

• If mixed RAM kits cause instability, you should remove mismatched modules and test only the matched set with XMP enabled.

• If the system still won’t stabilize, you should consider manually adjusting voltage or timings, or running the memory at a slightly reduced frequency.

Conclusion

XMP is one of the easiest ways to unlock the full potential of your RAM. Instead of running at the slow default speeds, a single BIOS setting lets your system take advantage of the RAM manufacturer's optimized performance settings.

For IT professionals, gamers, and creators alike, enabling XMP can deliver noticeable improvements in system responsiveness, workload performance, and application speed.

As long as your components support it and you understand what XMP is, it is a safe, effective way to get the memory performance you paid for.
