What is Read-only Memory (ROM)?

In the complex world of modern computing, memory is the foundation that enables devices to process information and execute tasks efficiently. While we often think about storage for photos or the memory needed for high-end games, there’s a quiet yet critical component working behind the scenes: Read-only Memory (ROM).

ROM serves as the permanent backbone of a computer’s startup process, storing essential instructions that wake your device and guide its operation. Without ROM, a computer wouldn’t know how to start, making it a vital element in every computing system. In this guide, we will understand what ROM is, its characteristics, the type of data it stores, and more.

What is ROM?

Read-only Memory (ROM) is a type of non-volatile memory that permanently stores the essential instructions a computer needs to start and operate. Unlike RAM, which temporarily holds data while a device is running, ROM retains its contents even when the power is off.

Its importance lies in its role as the foundation of the system boot-up. ROM contains the firmware, such as the BIOS or bootloader, that tells the device how to initialize hardware, load the operating system, and begin functioning.

Without ROM, a computer or smart device wouldn’t know how to turn on or execute its first commands, making it an indispensable part of modern computing.

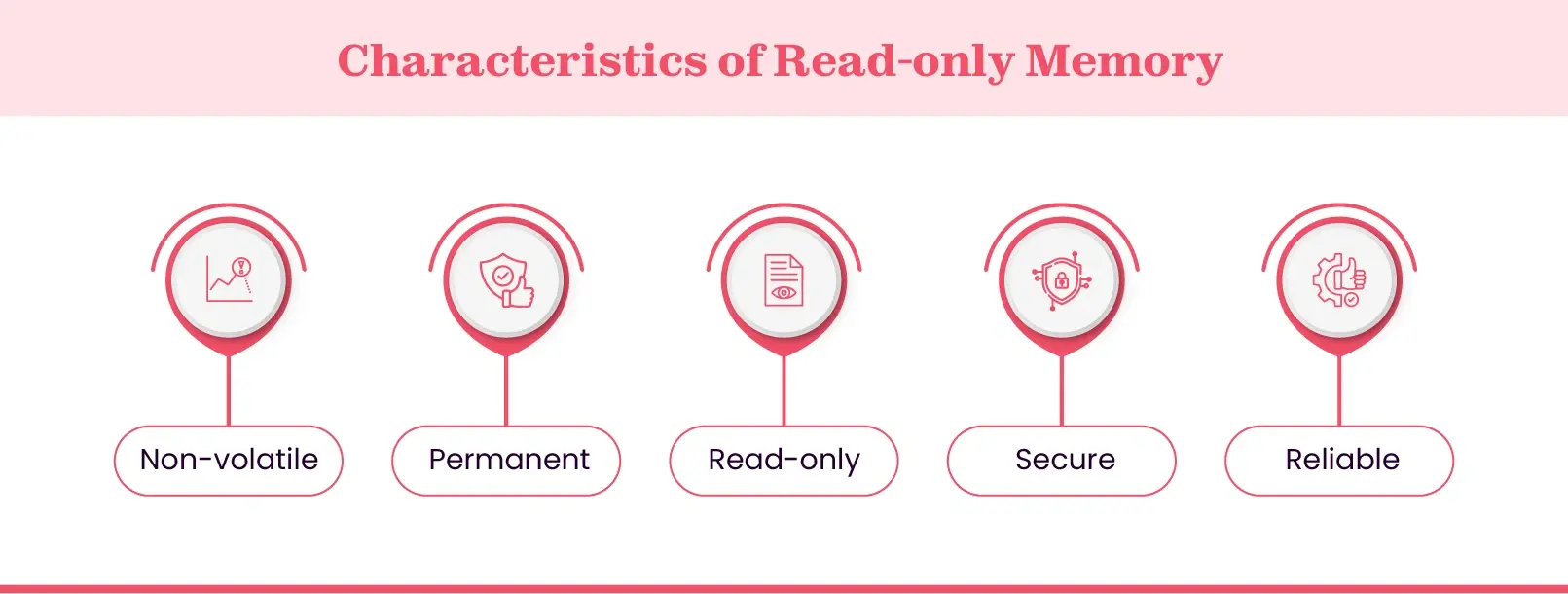

What are the key characteristics of ROM?

ROM has several defining attributes that set it apart from other memory types like RAM or storage drives. These characteristics make it ideal for storing essential system instructions that must remain stable and accessible at all times.

• Non-volatile: ROM keeps its data even when the power is turned off, ensuring critical startup instructions are always available.

• Permanent: Traditionally written during manufacturing, ROM data is meant to remain unchanged during everyday use, though some modern types allow limited updates.

• Read-only: The processor can read information from ROM but cannot easily modify it, unlike writable memory such as RAM.

• Secure: Its resistance to modification protects core system code from accidental changes or malicious tampering.

• Reliable: ROM chips are durable and provide the stable foundation required for boot processes and embedded systems.

What critical data does ROM store?

ROM is slower than RAM and much smaller than storage drives, so it’s reserved for only the most essential instructions a device needs to function. These foundational programs ensure your hardware can start up, communicate internally, and load the operating system.

• Firmware: Low-level software that directly controls hardware components and acts as the bridge between physical hardware and higher-level applications.

• BIOS (Basic Input/Output System): Found in PCs, the BIOS performs startup checks, initializes hardware, and helps the operating system communicate with connected devices.

• Bootloaders: Small programs that locate the operating system on your storage drive and load it into RAM so the device can start.

• Microcode: Ultra-low-level instructions that guide how the CPU executes machine code, ensuring the processor behaves correctly at the circuit level.

How does ROM work in a computer system?

ROM acts as the starting point for every computer. When you power on your device, RAM is empty and the processor needs immediate guidance. ROM provides the essential instructions the CPU reads first, allowing the system to boot and initialize hardware.

1. Power on: The CPU receives power and begins executing its startup sequence.

2. Fetch instructions: The processor looks to a fixed address in the ROM chip to retrieve its first instruction.

3. Initialization: ROM code (typically BIOS or UEFI) checks system health, performs the POST (Power-On Self-Test), and initializes hardware such as the display, keyboard, and storage.

4. Handoff to bootloader: Once hardware is ready, ROM transfers control to the bootloader, which loads the operating system into RAM.

While ROM functions similarly to RAM in circuitry, its internal structure is designed for permanence:

• Traditional Masked ROM: Stores data through permanent physical connections representing binary values.

• Modern Flash ROM: Uses floating-gate transistors to trap electrons, storing binary states electronically without moving parts.

These characteristics allow ROM to reliably hold critical instructions that remain intact even when the device is powered off.

What are the different types of ROM?

ROM has come a long way, from rigid, factory-programmed chips to modern, reprogrammable memory. As technology evolved, engineers designed new ROM types that offered more flexibility, allowing updates, bug fixes, and faster performance.

• MROM (Mask ROM): The earliest form of ROM, programmed permanently during manufacturing. Cheap but completely non-editable.

• PROM (Programmable ROM): Ships blank and can be programmed once using a PROM programmer. Data becomes permanent after fuses are burned.

• EPROM (Erasable Programmable ROM): Includes a quartz window that lets users erase data with UV light and reprogram the chip, making it reusable but inconvenient.

• EEPROM (Electrically Erasable Programmable ROM): Allows electrical erasing and rewriting without removing the chip from the device. Enables BIOS updates and firmware fixes.

• Flash Memory: A fast, block-erasable form of EEPROM. Used widely in SSDs, USB drives, memory cards, and modern firmware storage.

Where is ROM used today? Common applications

ROM isn’t limited to traditional computers; it's built into almost every modern electronic device. Its stability and permanence make it ideal for storing essential instructions that must always be available, regardless of power or resets.

• Personal computers and laptops: Every motherboard includes a ROM chip that stores the BIOS or UEFI firmware. This software runs hardware checks, initializes components, and starts the operating system.

• Mobile phones, tablets, and smart devices: Smartphones rely on Flash ROM to store the operating system (Android/iOS), bootloader, and recovery software. This is why devices can always return to factory settings.

• Video game consoles and cartridges: Classic consoles used ROM cartridges to store game data. Today’s consoles use internal flash ROM to run system software, manage updates, and control the main dashboard.

• Embedded systems and appliances: Everything from your car’s Engine Control Unit (ECU) to microwaves, smart TVs, routers, medical devices, and IoT gadgets uses ROM to store firmware that controls core functions.

ROM vs. other memory types

ROM vs. RAM

ROM is permanent memory used for startup instructions, while RAM is temporary memory used to run apps and tasks. Here’s a simple breakdown to help you understand their roles at a glance:

ROM vs. hard drives (HDD & SSD)

ROM provides essential, permanent instructions for device startup, while hard drives (HDD & SSD) serve as main storage for your files, applications, and operating system.

Conclusion

Read-only Memory (ROM) is the unsung hero of the electronic world. Without it, computers and smart devices wouldn’t be able to start up. ROM bridges the gap between lifeless hardware and active software, delivering the critical instructions needed to boot a system.

Over time, the technology has evolved, from unchangeable Mask ROM to versatile Flash memory, but its core purpose remains the same: to provide secure, permanent, and reliable storage for the most essential code in computing.
