What is a checksum, and how to use one?

Information integrity is vital to ensure data is not corrupted or tampered with during transfer, storage, or software validation. This is where checksums come in. Checksums are a simple yet powerful tool to verify that data remains intact and reliable. In this article, let us understand what a checksum is, its working, uses, and how checksum validation and checksum verification help maintain reliable data.

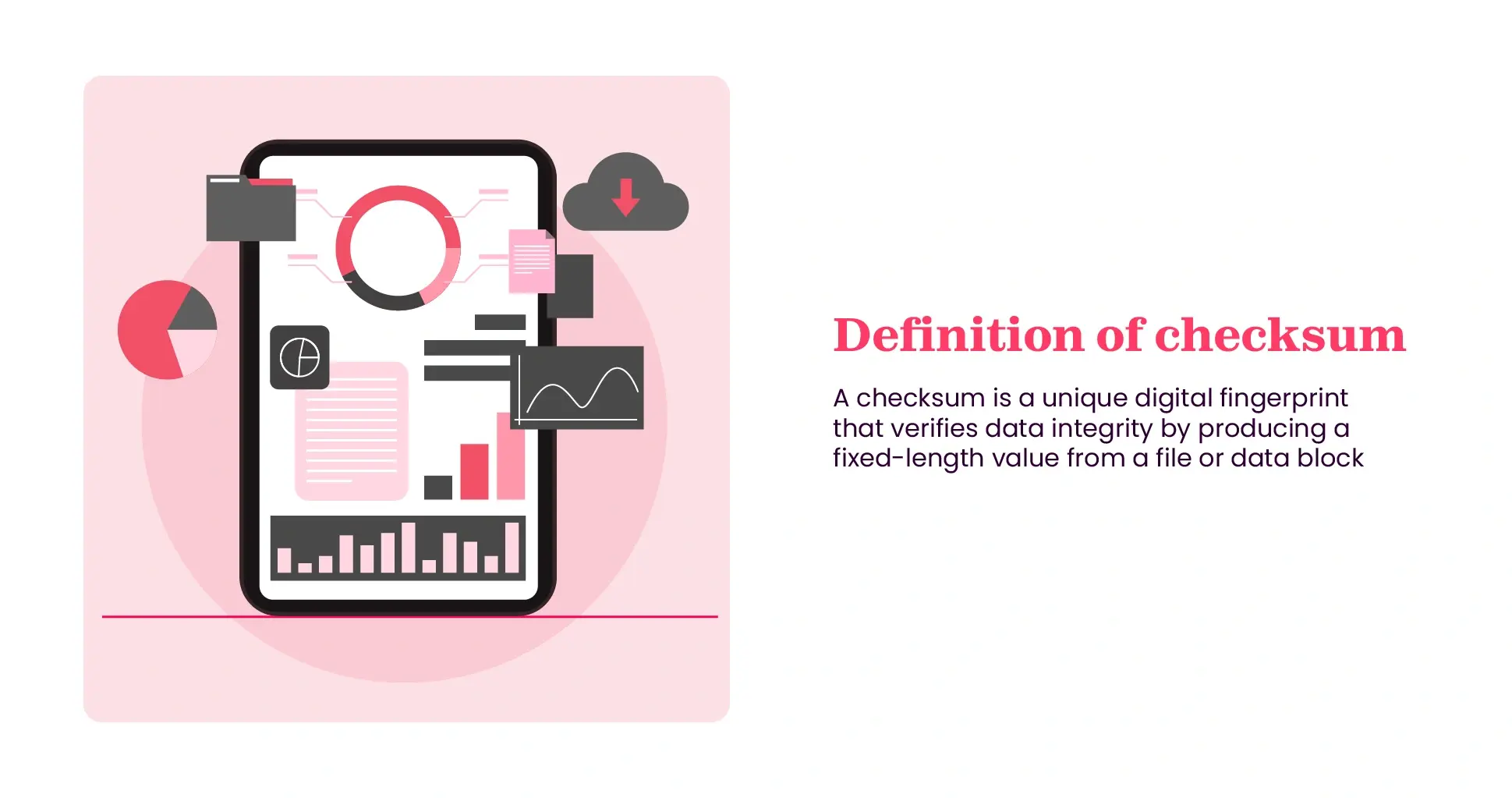

What is a checksum?

A checksum is a small value generated from a block of data to verify its integrity. It acts as a digital fingerprint that represents the exact state of that data at a specific point in time.

When data is processed through a checksum algorithm, it produces a fixed-length string of letters and numbers. When this process uses cryptographic methods, the resulting value is often called a hash.

Checksums allow quick verification that data hasn’t been corrupted or altered. The sender calculates a checksum before sharing a file, and the receiver compares it with their own calculation. Matching values indicate the data arrived intact and unchanged.

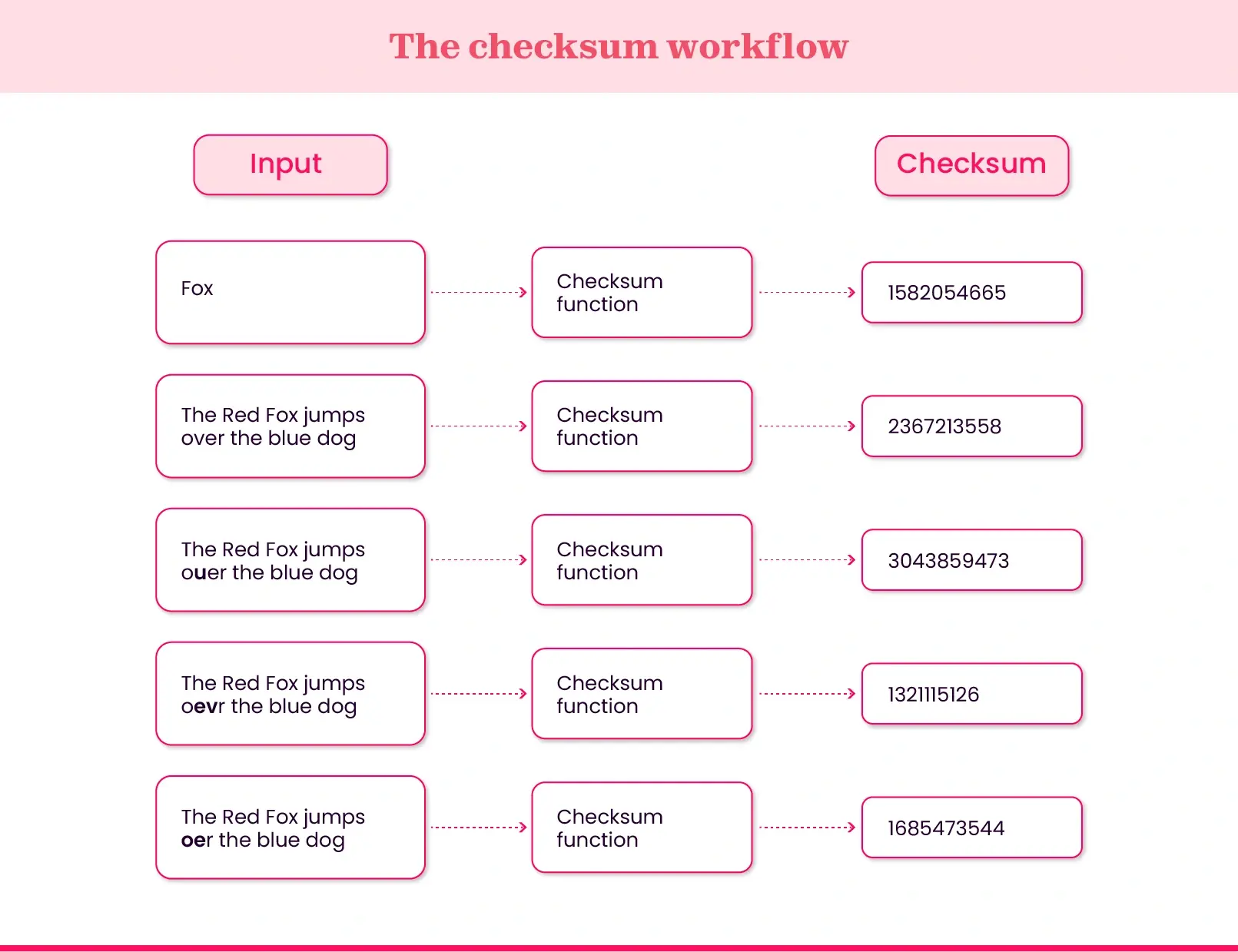

How do checksums work?

Checksums generate a compact numeric signature of a data block, allowing the receiver to verify that the information arrived intact.

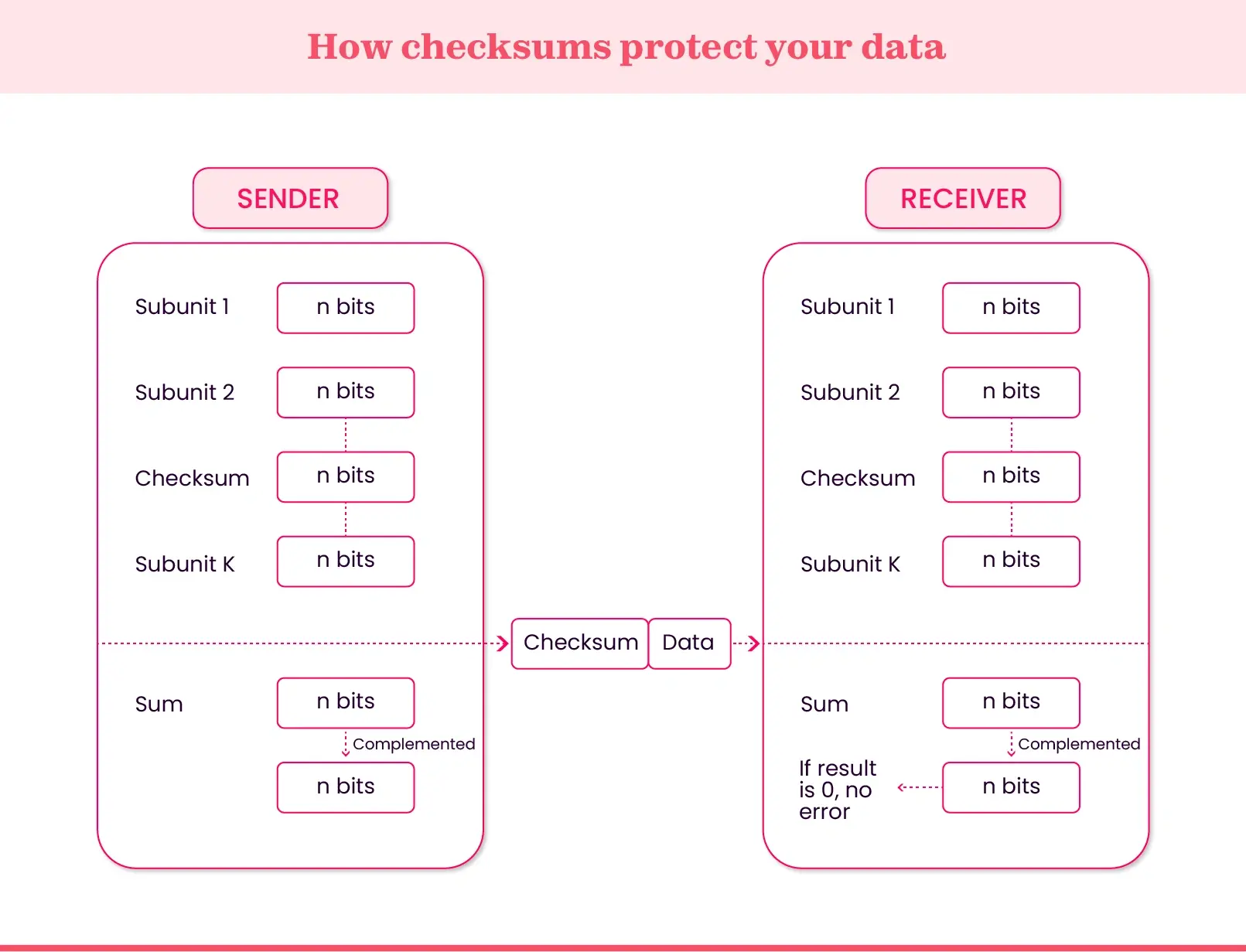

On the sender’s side, the data is divided into equal-sized segments, often 16-bit units. These segments are then combined using a specific arithmetic process, such as one's complement addition. The result of this calculation is a unique value that reflects the exact composition of the original data. This value, known as the checksum, is attached to the data before it’s transmitted.

When the data reaches the recipient, the same procedure is repeated: the incoming data is split into the same segment size and run through the same algorithm. If the newly computed checksum matches the one that was sent, the data is assumed to be complete and unaltered. Any mismatch, even by a tiny amount, indicates corruption or possible interference, prompting the receiver to recheck or request the data again.

What are the common use cases for checksums?

Checksums play a key role in maintaining data integrity across many areas of computing and cybersecurity. Below are the most common and practical use cases:

• File and software downloads: When downloading installers, patches, or ISO images, publishers often provide an MD5 or SHA checksum. Users can compare this with their own calculated checksum to ensure the file hasn’t been corrupted in transit or tampered with by an attacker.

• Data transmission: Network protocols use checksums to verify each packet of data as it moves across the network. If a packet arrives with a checksum mismatch, it’s flagged as corrupted and typically discarded or retransmitted.

• Data storage and archiving: Over time, stored data can degrade (bit rot) or be altered unintentionally. Periodic checksum scans help detect these issues early, ensuring backups, archives, and long-term storage remain reliable.

• Cybersecurity monitoring and detection: Security tools maintain baseline checksums of critical system files. Any unexpected change to these values signals possible malware, tampering, or unauthorized activity.

• Password storage and authentication: Instead of saving raw passwords, systems store their hash values. When a user logs in, the entered password is hashed and compared to the stored value. This protects users even if a database is exposed.

• Spam and threat detection: Email security platforms generate checksums of message content and compare them to signatures of known spam or phishing messages, enabling efficient filtering with minimal processing.

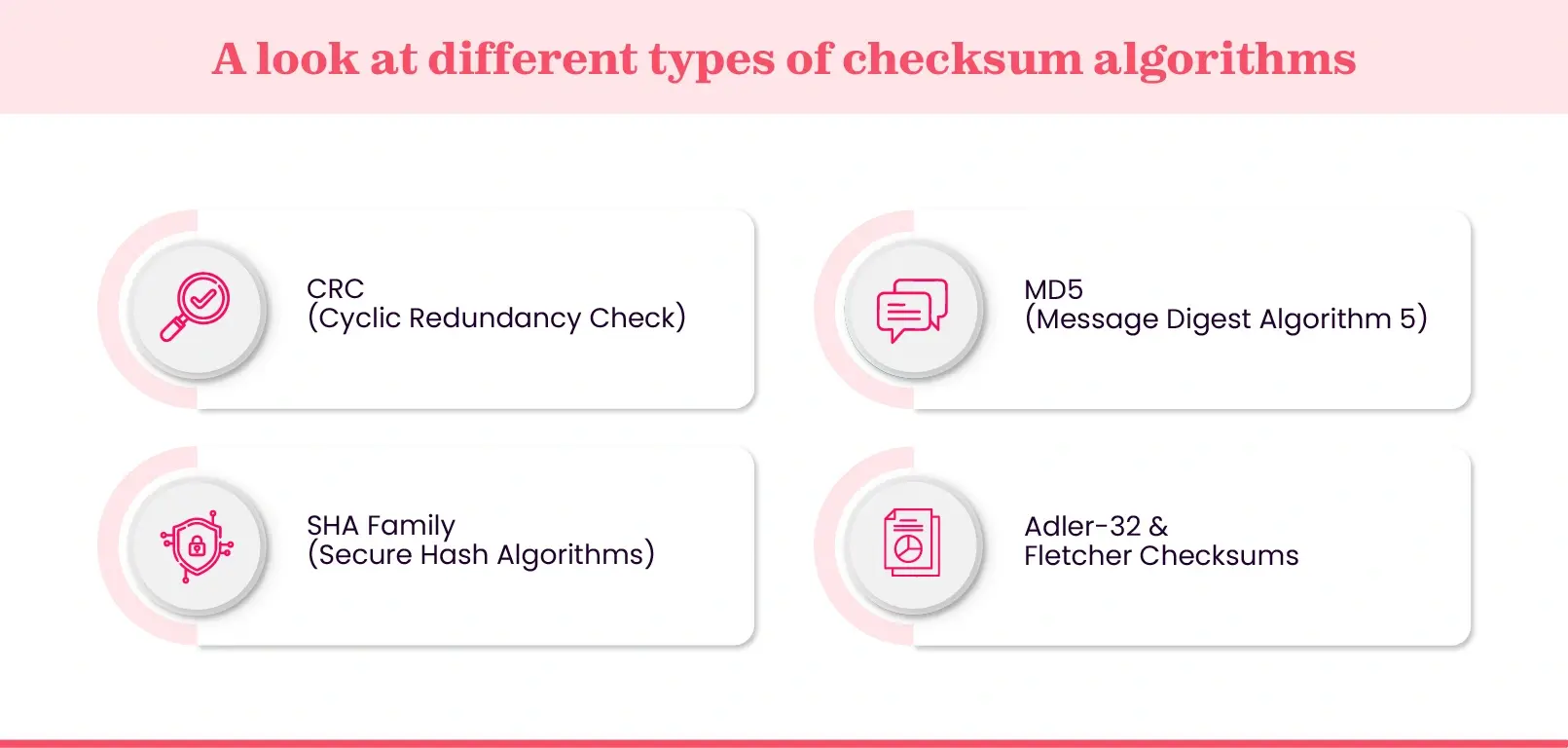

What are the different types of checksum algorithms?

Checksum algorithms come in several forms, each designed for specific purposes such as error detection, file integrity checks, or security validation. While some algorithms are optimized for speed and simplicity, others focus on cryptographic strength. Below is an overview of the most commonly used checksum and hashing algorithms.

1. CRC (Cyclic Redundancy Check)

CRC is widely used in networking, storage devices, and communication protocols. It’s designed to detect accidental data corruption, such as bit flips or transmission errors, by performing polynomial division on data. CRCs are fast, lightweight, and ideal for real-time systems, but they are not secure against intentional tampering.

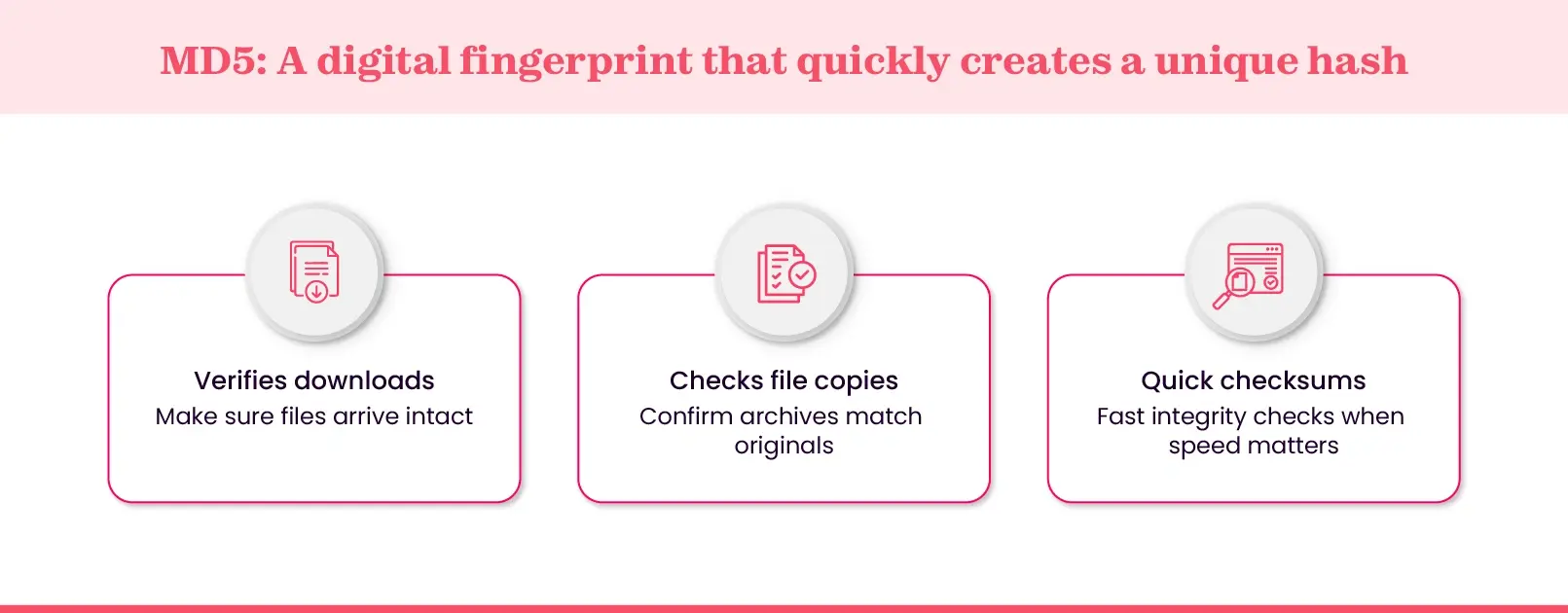

2. MD5 (Message Digest Algorithm 5)

MD5 generates a 128-bit hash value and was once the standard for file integrity checks. It’s easy to compute and widely supported, but no longer considered cryptographically secure due to known collision vulnerabilities.

Despite its cryptographic weaknesses, MD5 remains popular due to its simplicity, speed, and widespread tool support. However, it should never be relied upon for securing sensitive or critical data.

3. SHA Family (Secure Hash Algorithms)

The SHA family includes SHA-1, SHA-256, SHA-384, and SHA-512. These functions are more secure and resistant to collisions than MD5. SHA-256 and above are widely used in modern security applications like digital certificates, code signing, and blockchain technologies.

4. Adler-32 & Fletcher Checksums

These algorithms are simpler than CRC and are often used in applications where speed is more important than strong error detection. Adler-32, for instance, is used in zlib compression.

Beyond these, several other hashing algorithms and checksum methods are widely used in IT and cybersecurity, each with its own strengths and ideal use cases:

SHA-1

SHA-1 produces a longer hash than MD5 and was once widely used for secure applications. However, due to discovered collision vulnerabilities, it is now considered insecure for most cryptographic purposes. It still appears in some legacy systems and older protocols.

SHA-256 / SHA-512 (SHA-2 family)

These algorithms offer strong security and excellent resistance to collisions. SHA-256 and SHA-512 are widely used in modern security applications such as TLS/SSL certificates, code signing, blockchain technology, password hashing frameworks, and file integrity checks. They are slower than MD5 but provide far stronger protection against tampering.

SHA-3

SHA-3 is the newest standard, based on the Keccak algorithm. It was designed as a next-generation, secure hashing method to complement SHA-2. It is highly resistant to collisions and preimage attacks, making it suitable for high-security applications.

CRC32

Cyclic Redundancy Check (CRC32) is a non-cryptographic checksum method commonly used for error detection in ZIP archives, network packets, and storage devices. While not suitable for security purposes, CRC32 is extremely fast and highly effective at catching accidental data corruption.

How to use and verify a checksum?

Using a checksum involves two key steps: generating the checksum before the data is sent and verifying it after the data is received.

1. Choose the right algorithm: Different checksum and hashing algorithms offer varying levels of speed and security. For example, MD5 is lightweight and fast, but SHA-256 offers much stronger resistance against tampering. Pick the one that aligns with your integrity or security requirements.

2. Generate the checksum: After selecting an algorithm, run your file or data through it to produce the checksum value. Most operating systems and tools support built-in checksum verification functions.

3. Validate the result: Compare the checksum you calculated with the expected value, such as the one provided by a software vendor. A match indicates the data is unchanged; a mismatch means something has been altered and needs investigation.

4. Update checksums as data evolves: If the underlying data changes regularly, recalculate and refresh the stored checksums to ensure your integrity checks remain accurate over time.

Best practices for implementing checksum

Implementing checksums effectively requires careful planning to ensure data integrity and reliability. Here are the key best practices:

• Choose the right algorithm for the task: Select a checksum or hashing algorithm that fits your use case. Use CRCs for fast error detection, MD5 for quick integrity checks where security is not critical, and SHA-256 or SHA-3 for security-sensitive applications.

• Verify checksums immediately after transfer or download: Always compare calculated checksums with the provided values right after receiving a file to detect corruption or tampering early.

• Automate checksum generation and verification: Use scripts, system tools, or backup software to automatically calculate and check checksums, reducing the risk of human error.

• Maintain an audit log of checksums: Keep records of checksums for important files and system components to track changes over time and facilitate forensic analysis if needed.

• Recalculate checksums after updates or modifications: Whenever data changes, generate a new checksum to ensure future integrity checks remain accurate.

What causes an inconsistent checksum?

An inconsistent checksum occurs when the checksum calculated from a file or data does not match the expected value. This usually indicates that the data has been altered or corrupted in some way. Common causes include:

• File modification: Any changes to the file after the original checksum was created, such as edits, added comments, or modifications to embedded data, will result in a different checksum.

• Data corruption during transfer: Errors during download or network transfer, such as unstable connections or incorrect transfer settings (e.g., ASCII vs. binary mode), can corrupt files and produce mismatched checksums.

• Hardware failure: Faulty components like hard drives, memory modules, or unstable power supplies can corrupt stored or transmitted data, leading to checksum discrepancies.

• Incorrect hashing algorithm: Using a different algorithm than the one originally used to generate the checksum (for example, calculating an MD5 checksum when the reference uses SHA-256) will naturally produce a mismatch.

• Wrong file or version: Downloading an incorrect file or a different version than the one used to generate the original checksum will also cause inconsistencies.

Conclusion

A checksum acts as a digital fingerprint that helps verify the integrity and authenticity of data. By generating a unique, fixed-size value from a file, it can detect accidental corruption during transfer or storage. When using strong algorithms like SHA-2 or SHA-3, checksums can also protect against deliberate tampering. They are an essential best practice for validating software downloads and maintaining the integrity aspect of the CIA Triad in information security.
