What is WLAN and how does it work?

The ability to access networks without physical cables is fundamental in today’s interconnected world. This convenience is largely attributed to the Wireless Local Area Network (WLAN), a technology that has revolutionized how we connect our devices and access information.

From homes to bustling corporate campuses, WLANs provide the flexibility and mobility necessary for modern digital life. This guide will delve into the intricacies of what WLAN is, offering a comprehensive overview of their functionality, architecture, security, and diverse applications.

What is WLAN?

A Wireless Local Area Network (WLAN) is a computer network that connects two or more devices using wireless communication within a limited geographical area, such as a home, office, school, or campus.

Essentially, it is a type of Local Area Network (LAN) that employs radio technology instead of traditional wired connections. WLANs allow users to move freely within the network's coverage while maintaining connectivity to the network and, through a gateway, to the wider internet.

While "WLAN" is a broad term for any wireless local network, Wi-Fi is the most prevalent type of WLAN. Wi-Fi networks adhere to the IEEE 802.11 standards, making them the most widely adopted computer networks globally.

Although all Wi-Fi networks are WLANs, not all WLANs are Wi-Fi, as other radio transmission technologies could also form a wireless local area network.

How does a WLAN work?

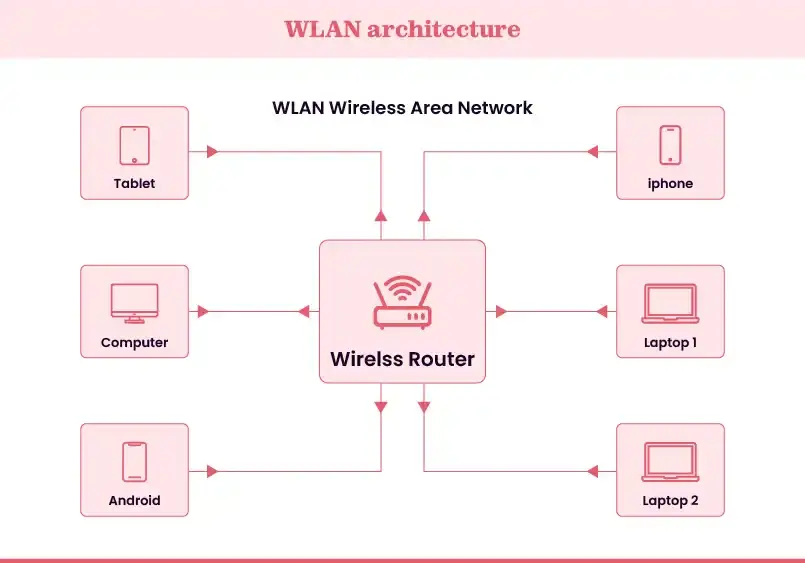

A Wireless Local Area Network (WLAN) allows devices like laptops and smartphones to connect and share data wirelessly using radio waves instead of cables. It relies on an Access Point (AP), usually built into a wireless router, which acts as a bridge between wireless devices and the wired network or internet. The AP receives radio signals from devices, converts them into Ethernet data for the network, and sends responses back as radio signals.

WLANs operate on radio frequency bands such as 2.4 GHz, 5 GHz, and 6 GHz, which affect speed, range, and interference levels. Before joining a network, a device must scan for available WLANs, select one, and authenticate using a password or credentials to ensure secure access.

When data is sent, the device’s wireless adapter converts digital information into radio signals that are transmitted to the Access Point. The AP forwards the data to its destination and returns responses the same way, enabling continuous two-way communication. To reduce data collisions, WLANs use protocols like CSMA/CA, while security standards such as WPA2 and WPA3 encrypt data to protect it from unauthorized access.

WLAN vs Wi-Fi vs LAN

While often used interchangeably, WLAN, Wi-Fi, and LAN refer to distinct but related concepts in computer networking. Understanding their differences is crucial for grasping network technology.

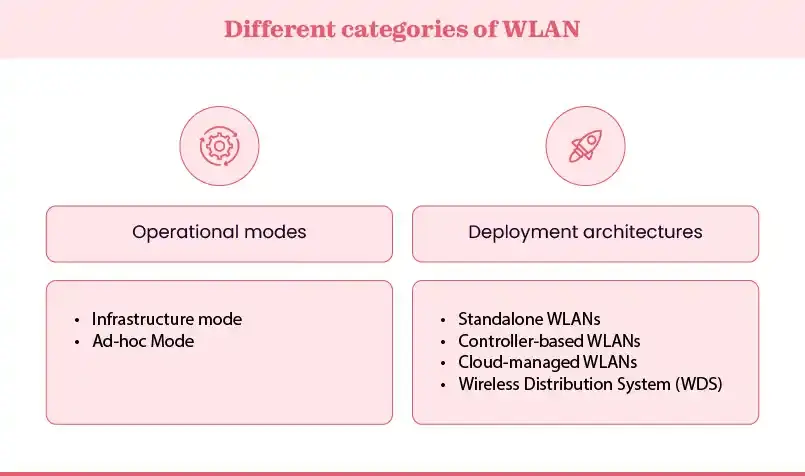

What are the different types of WLANs?

WLANs can be classified based on operational modes and deployment architectures, allowing them to support environments ranging from small homes to large enterprises.

Operational modes (IEEE 802.11)

Infrastructure mode

This is the most common WLAN mode, where wireless devices communicate through a central Access Point (AP). The AP manages communication, handles authentication, and connects devices to a wired LAN or the internet. Infrastructure mode supports roaming, allowing users to move between multiple APs without losing connectivity. Its strong security, scalability, and centralized management make it ideal for homes, offices, campuses, and public Wi-Fi networks.

Ad-hoc Mode (IBSS – Independent Basic Service Set)

In ad-hoc mode, devices connect directly to each other in a peer-to-peer (P2P) manner without an Access Point. Each device acts as both sender and receiver, forming a temporary network. This mode is easy to set up and useful for small or emergency networks, but it has limited scalability, weaker security, and usually no direct internet access. Modern peer-to-peer technologies like Wi-Fi Direct follow a similar concept, where one device can act as a group owner.

Deployment architectures

Standalone WLANs

These use individual Access Points configured independently. They are common in homes and small offices, where a single router provides all wireless connectivity.

Controller-based WLANs

In large organizations, multiple Access Points are managed by a wireless controller. This enables centralized management, advanced security policies, seamless roaming across VLANs, and improved performance. It also reduces on-site IT workload and improves network reliability.

Cloud-managed WLANs

An evolution of controller-based systems, cloud-managed WLANs allow administrators to deploy, monitor, and troubleshoot networks remotely through a cloud platform. They eliminate the need for on-premises controllers, reduce costs, and are ideal for businesses with multiple locations.

Wireless Distribution System (WDS)

WDS allows Access Points to connect wirelessly to each other, extending network coverage without a wired backbone. APs can act as main, relay, or remote base stations, forwarding data between them while maintaining client device information.

What are the advantages and disadvantages of using a WLAN?

WLANs have transformed connectivity by offering significant benefits, yet they also come with inherent limitations. Understanding both aspects is key to effective deployment.

Advantages of using WLAN

• Enhanced mobility: Users can connect to network resources from anywhere within the coverage area without being tied to cables, enabling flexible work and improved productivity.

• Easy installation & expansion: WLANs require minimal wiring, making setup faster and less disruptive. New devices or temporary workspaces can be added without changing physical infrastructure.

• Cost-effective: Reduced need for cabling, installation labor, and maintenance lowers overall network costs, especially in large or complex spaces.

• Scalable: Networks can grow easily by adding more Access Points to extend coverage and support more users and devices.

• Supports diverse devices: Enables simultaneous connectivity for laptops, smartphones, tablets, and IoT devices, supporting modern interconnected environments.

Disadvantages of using WLAN

• Security risks: Wireless signals can be intercepted, making WLANs vulnerable to eavesdropping, unauthorized access, spoofing, and DoS attacks without strong security measures.

• Interference: Signals can be disrupted by other Wi-Fi networks, Bluetooth devices, microwaves, and physical obstacles like walls or metal structures.

• Limited range & variable performance: Signal strength drops with distance and barriers, leading to inconsistent speeds and reliability.

• Bandwidth limitations: High user density or heavy applications can cause congestion, slower speeds, and compatibility issues.

• Requires skilled setup: Proper design, channel planning, and security configuration are needed for optimal performance.

How to secure your wireless LAN?

Wireless security protocols have evolved significantly to counter growing threats:

• Wired Equivalent Privacy (WEP): WEP was an early security protocol designed to provide security comparable to wired networks. However, due to several fundamental flaws, it is no longer considered secure and is easily crackable. Its use should be avoided.

• Wi-Fi Protected Access (WPA): WPA was introduced as an interim solution to address WEP's weaknesses. It offered stronger encryption (TKIP) and improved user authentication.

• Wi-Fi Protected Access II (WPA2): WPA2 quickly replaced WPA and became the industry standard for wireless security. It uses AES (Advanced Encryption Standard) encryption, which is much more robust than TKIP, and provides stronger authentication mechanisms. WPA2 is still widely used and considered secure when properly configured.

• Wi-Fi Protected Access 3 (WPA3): WPA3 is the latest generation of Wi-Fi security, offering enhanced encryption and authentication capabilities. It provides stronger protection against brute-force attacks, individual data encryption in public hotspots (Wi-Fi Enhanced Open), and improved password-based authentication, even for networks with weak passwords. WPA3 is designed for the modern security landscape with an increasing number of connected devices.

What are the best practices for network security and encryption?

Implementing the following best practices is crucial for securing your WLAN:

• Always use WPA2 or WPA3: Configure your Access Points to use the strongest available encryption. WPA3 is preferred, but WPA2 is acceptable for older devices that may not support WPA3. Avoid WEP and Wi-Fi Protected Setup (WPS), which has known vulnerabilities.

• Employ strong, unique passwords: Change default administrator passwords on your Access Points immediately. Use complex, unique passphrases for your Wi-Fi network that combine uppercase and lowercase letters, numbers, and symbols. For enterprise networks, consider RADIUS or other enterprise authentication methods for granular control.

• Regular firmware and security updates: Keep your wireless router and Access Point firmware up to date. Manufacturers frequently release updates to patch known security vulnerabilities and improve performance.

• Network segmentation: Implement network segmentation by creating separate guest networks or VLANs for visitors and IoT devices. This isolates these devices from your primary internal network, limiting potential exposure in case of a breach on the guest network.

• Monitor and log network activity: Regularly monitor connected devices and traffic for any unusual or suspicious activity. Logging network events can help detect and respond to security threats quickly.

• Firewalls, intrusion Detection/Prevention Systems (IDPS): Utilize firewalls to control incoming and outgoing network traffic. Deploy IDPS to detect and prevent malicious activities. For remote access or enhanced security, use Virtual Private Networks (VPNs) to encrypt data traveling over public or insecure networks.

What are the common applications and use cases for WLANs?

WLANs are ubiquitous in modern life, facilitating connectivity across a vast array of environments and applications. Their flexibility and mobility have made them indispensable for various sectors.

• Home & small offices: Connect laptops, smartphones, smart TVs, printers, and IoT devices, supporting work-from-home, entertainment, and device sharing without cables.

• Enterprise environments: Provide secure, seamless connectivity across offices, warehouses, and factories, supporting communication, data access, video conferencing, and asset tracking.

• Public hotspots: Enable internet access in cafes, airports, hotels, libraries, and campuses, often using captive portals to manage user access.

• Educational institutions: Support e-learning, online exams, research, and collaboration across classrooms, libraries, and dormitories.

• Industrial IoT & smart buildings: Connect sensors and smart systems for real-time monitoring, automation, predictive maintenance, and efficient resource management.

Conclusion

WLANs have fundamentally reshaped how individuals and organizations connect and interact with the digital world. By enabling wireless communication, they offer unparalleled mobility, flexibility, and scalability, allowing devices to stay connected seamlessly across diverse environments.

While the convenience of WLANs comes with the imperative for robust security measures against inherent vulnerabilities, the continuous evolution of protocols like WPA3 and advancements in network management, including cloud-managed solutions, ensure secure and efficient wireless experiences. As the number of internet-enabled devices continues to surge, WLANs remain a cornerstone of modern connectivity, driving innovation and empowering a more interconnected future.
