What is RS-232C: A complete guide

Data communication relies on numerous standards that allow devices to exchange information seamlessly. Among them, RS-232C is a key early version of the enduring RS-232 standard, providing a reliable physical interface for serial data transfer.

Introduced in the 1960s, RS-232C established the foundation for decades of communication between computers and peripheral devices.

What is RS-232C?

RS-232C is a key early version of the RS-232 standard, defining a robust physical interface for serial data communication. Introduced in the 1960s by the Electronic Industries Association (EIA), it set the foundation for reliable asynchronous communication between computers and peripheral devices, enabling point-to-point binary data exchange for decades.

At its core, RS-232C specifies electrical, mechanical, and functional characteristics for serial communication between Data Terminal Equipment (DTE), such as a computer, and Data Circuit-terminating Equipment (DCE), such as a modem. It ensures low-speed, reliable data transfer with clearly defined voltage levels, connector standards, and signal functions.

What is RS-232C used for?

Initially designed for teletypewriters and modems, RS-232C quickly expanded to personal computers, controllers, and peripheral devices. Its primary purpose is to connect a DTE device (computer, controller) to a DCE device (modem, instrumentation).

RS-232C is flexible, and using a null modem (crossover cable), two DTE or two DCE devices can communicate directly. This versatility made it widely adopted for point-to-point serial connections and reliable binary data exchange.

How does RS-232C communication work?

RS-232C relies on asynchronous serial data transfer, where bits are sent sequentially over a single line. Timing is handled via start and stop bits, not a shared clock.

Key elements include:

1. Electrical signal characteristics: Defines voltage ranges (+3V to +15V for logical ‘0’, -3V to -15V for logical ‘1’) to maintain signal integrity and noise immunity.

2. Mechanical interface: Specifies connector types, dimensions, and pin arrangements.

3. Functional description: Assigns each pin a role for data, timing, and control.

4. Subsets of interchange circuits: Allow specialized configurations for different communication applications.

Understanding RS-232C pinout and signal functions

RS-232C connections typically utilize either a 25-pin (DB25) or, more commonly, a 9-pin (DB9) D-subminiature connector. Key signals include:

• Transmit Data (TXD): This pin is used by the transmitting device to send data to the receiving device.

• Receive Data (RXD): This pin is used by the receiving device to get data from the transmitting device.

• Ground (GND): This provides a common electrical reference point for both connected devices, which is crucial for signal integrity.

• Request to Send (RTS) and Clear to Send (CTS): These are hardware handshaking lines. RTS is asserted by the DTE to indicate it's ready to send data, and CTS is asserted by the DCE to signal its readiness to receive.

• Other control lines: Additional pins may include Data Terminal Ready (DTR), Data Set Ready (DSR), and Carrier Detect (CD), which manage connection status and availability.

What is the role of handshaking in data flow control?

Handshaking ensures that the transmitting device does not overwhelm a slower receiver:

• Hardware handshaking: Uses RTS/CTS lines to manage physical data flow.

• Software handshaking: Uses special characters (XON/XOFF) in the data stream for flow control, ideal when fewer pins are available.

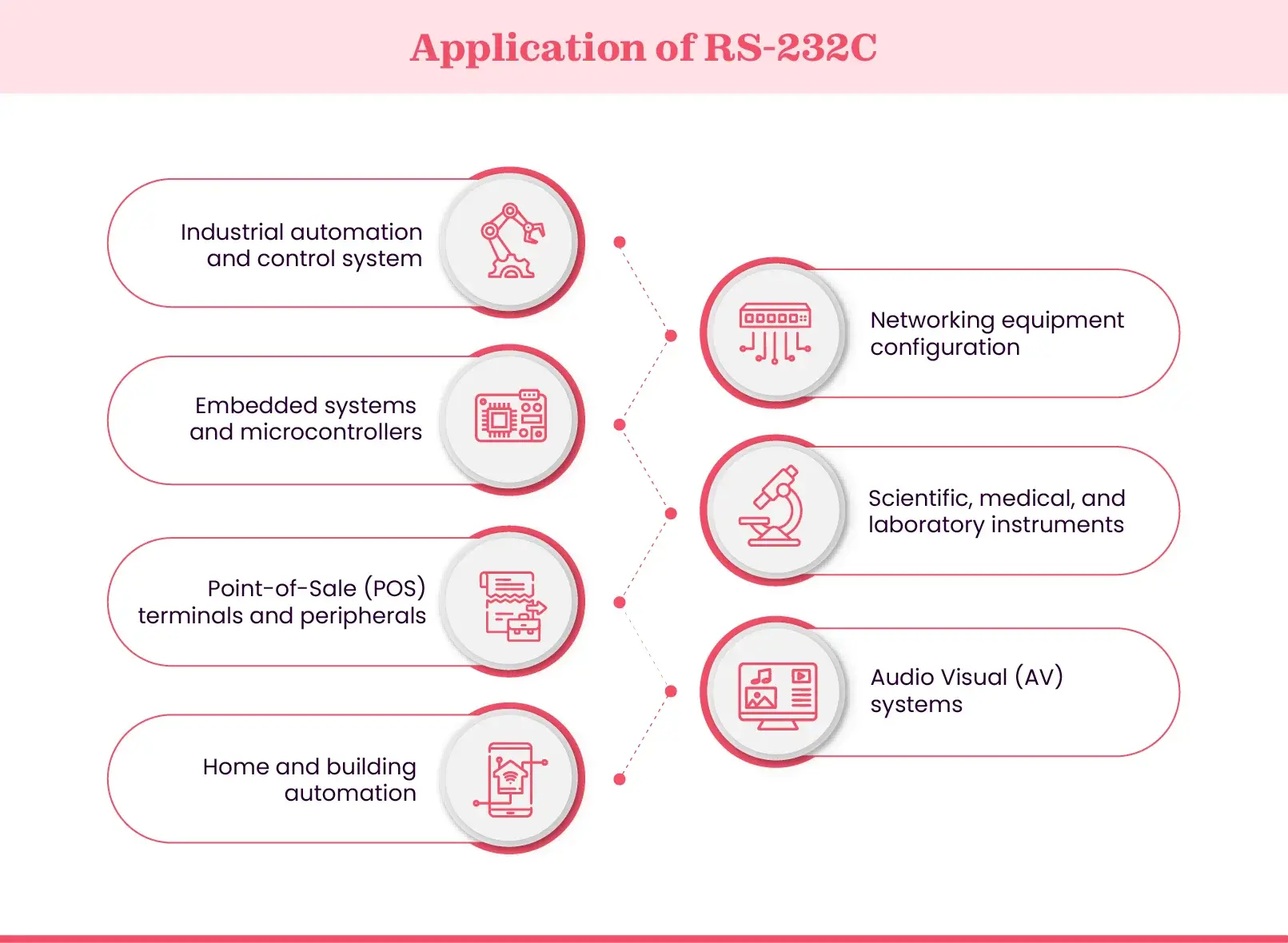

What are the applications of RS-232C?

Despite modern protocols, RS-232C remains vital in niche and industrial settings due to its simplicity, reliability, and two-way communication. Key applications:

• Industrial automation and control systems: Connecting Programmable Logic Controllers (PLCs), sensors, and actuators in factories.

• Networking equipment configuration: Providing console access for configuring routers, switches, and firewalls, especially in older or specialized network environments.

• Embedded systems and microcontrollers: Offering a straightforward debugging and communication interface for development boards and embedded devices.

• Scientific, medical, and laboratory instruments: Interfacing with analytical equipment, test apparatus, and data acquisition systems.

• Point-of-Sale (POS) terminals and peripherals: Connecting cash registers, barcode scanners, and receipt printers.

• Audio Visual (AV) systems: Used extensively for controlling high-end AV equipment like Blu-ray players, digital media players, televisions, and projectors (e.g., turning on/off, changing inputs, adjusting settings). It does not transmit audio or video content itself.

• Home and building automation: Integrating non-AV devices such as lighting systems, motorized blinds, access control, heating, and air conditioning units into centralized control systems.

What are the advantages of RS-232C?

• Simple and Cost-Effective: Minimal hardware/software complexity for point-to-point communication.

• Universal Standard: Long-standing adoption ensures broad device compatibility.

• High Noise Immunity: Large voltage swings protect against electromagnetic interference over short cables.

• Two-Way Communication: Provides feedback on command execution, unlike one-way methods such as infrared.

What are the limitations of RS-232C?

• Limited Distance: Maximum recommended cable length ~15 meters (50 feet).

• Slower Speeds: Up to 20 kbps for the C version, slower than modern interfaces.

• Noise Susceptibility Over Distance: Single-ended signaling can degrade over longer runs.

• Point-to-Point Only: Requires extra hardware for multi-device connections.

RS-232C vs. USB

RS-232C vs. RS-422 and RS-485

Conclusion

RS-232C is a foundational serial communication standard that shaped early computing and device interconnection. While modern protocols like USB and Ethernet dominate, RS-232C remains essential in industrial, scientific, and AV control applications due to its simplicity, reliability, and two-way feedback capability.
