What is Energy-Efficient Ethernet (EEE) and how does it work?

Network infrastructure consumes more energy as worldwide data traffic increases. Traditional Ethernet technology was designed for constant readiness, maintaining full power regardless of traffic levels. This results in unnecessary energy waste during idle periods.

Energy-Efficient Ethernet (EEE), standardized as IEEE 802.3az, was introduced to address this inefficiency. It enables Ethernet devices to dynamically reduce power consumption during periods of low activity while maintaining full performance and compatibility. This guide explores what Energy-Efficient Ethernet is, how EEE works, its benefits, hardware requirements, compatibility considerations, and deployment strategies

What is Energy-Efficient Ethernet (EEE)?

Energy-Efficient Ethernet (EEE) is an enhancement to traditional Ethernet defined by the IEEE 802.3az standard. Its purpose is to reduce power consumption during low or idle network traffic without affecting throughput or reliability.

Unlike conventional Ethernet, which operates at full power continuously, EEE allows devices to adjust energy usage dynamically based on real-time demand. This intelligent power management delivers measurable energy savings and environmental benefits.

Additional read: A guide to high-quality network design for MSPs

How EEE differs from traditional Ethernet?

The fundamental distinction between EEE and traditional Ethernet lies in their approach to power management during idle or low-traffic periods.

How does Energy-Efficient Ethernet work?

Energy-Efficient Ethernet functions through several key mechanisms designed to conserve power when the network is not actively transmitting data.

Key mechanisms of Energy-Efficient Ethernet include:

1. Low Power Idle (LPI)

Low Power Idle is the foundation of EEE. When no data is being transmitted, a device sends an LPI signal to its link partner, instructing it to enter a low-power state. During LPI, portions of the physical layer (PHY) are powered down, significantly reducing energy use.

2. Rapid Wake-Up

When traffic resumes, the transmitting device signals the link to return to full power. Wake-up typically occurs within microseconds, ensuring no noticeable latency or packet loss.

3. Active link maintenance

The Ethernet link does not disconnect during LPI. Instead, it remains in a synchronized quiescent state with periodic refresh signals exchanged between devices to maintain readiness.

Green ethernet features

Beyond IEEE 802.3az, some vendors include additional energy-saving capabilities such as cable length detection (reducing signal strength for shorter cables) and automatic port power-down when no device is connected.

Additional read: The Basics of OS Patching

What are the key benefits of implementing EEE?

Implementing Energy-Efficient Ethernet (EEE) offers a multitude of advantages that extend beyond mere power savings, impacting operational efficiency, environmental responsibility, and hardware longevity.

• Significant power reduction: EEE scales energy consumption according to link utilization, dramatically lowering power usage in networks with fluctuating traffic.

• Cost savings: Lower electricity usage reduces operational expenses, particularly in data centers and large enterprise networks with thousands of ports.

• Environmental impact: Reduced energy consumption lowers carbon emissions and supports sustainability and ESG initiatives.

• Improved hardware longevity: Lower heat generation reduces thermal stress on components, improving reliability and extending device lifespan.

• Enhanced monitoring and compliance: EEE integrates with SNMP and network management tools, enabling energy reporting and compliance with standards like ISO 50001 and ISO 14001.

What is the difference between EEE and Green Ethernet?

While often used interchangeably, Energy-Efficient Ethernet (EEE) and Green Ethernet are distinct concepts, though they both aim to reduce power consumption in network devices. EEE is a specific, standardized technology, whereas "Green Ethernet" is a broader term that can encompass EEE and other power-saving features

What are the hardware requirements for EEE-compliant switches and NICs?

For Energy-Efficient Ethernet (EEE) to function correctly and deliver its benefits, both ends of an Ethernet link, the network switch port and the network interface card (NIC) of the connected device, must be EEE-compliant.

• EEE-compliant switches: Modern managed switches, particularly Gigabit and 10 Gigabit Ethernet switches, typically support EEE. For example, cloud-managed Catalyst switches running specific firmware versions (like CS17 or higher) are often EEE-compatible. It's crucial to verify the switch's specifications or consult its documentation to confirm EEE support. EEE is generally not supported on SFP interfaces on some switch models.

• EEE-compliant NICs: Similarly, the network adapter in the end device (e.g., a computer, server, or IoT device) must also support the IEEE 802.3az standard. Most modern operating systems and network drivers include support for EEE, but older hardware or specific industrial/specialized NICs may lack this feature.

When configuring EEE, it's important to note that changing the EEE configuration on a switch port often causes the interface to "bounce" (restart its auto-negotiation process) as it needs to re-establish the link with the new EEE settings. EEE is usually disabled by default and must be explicitly enabled on both the switch port and the client device's NIC settings for successful negotiation and operation.

Additional read: What is network discovery?

How to check for and enable EEE support?

To use Energy-Efficient Ethernet (EEE), defined under IEEE 802.3az, both the switch and the connected device must support and enable it.

Check switch support

Review the switch’s technical documentation to confirm 802.3az compatibility. Log in to the switch via CLI or web interface and look under port settings for options labeled EEE, 802.3az, or Energy-Efficient Ethernet. After enabling, verify the port status shows successful negotiation.

Enable EEE on the switch

In the switch dashboard, navigate to port configuration and toggle EEE to Enabled, then save changes. Some cloud-managed switches enable EEE through an API by setting the relevant 802.3az parameter to true.

Check and enable on client NIC (Windows)

Open Device Manager → Network Adapters → right-click your Ethernet adapter → Properties → Advanced tab. Look for Energy Efficient Ethernet or similar and set it to Enabled.

Both ends must have EEE enabled for power savings to activate.

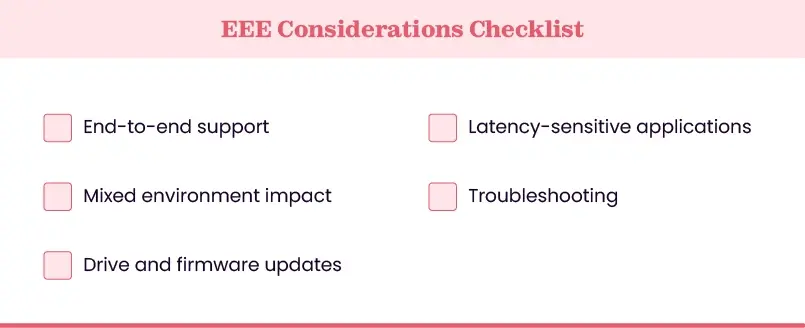

What are the compatibility considerations and potential performance issues?

While Energy-Efficient Ethernet (EEE) offers significant benefits, its implementation requires careful attention to compatibility and an awareness of potential performance considerations.

• End-to-end support: Both the switch port and the connected NIC must support and enable EEE. If only one side supports it, the link runs in full-power mode with no energy savings.

• Mixed environments: Legacy devices without EEE will not benefit, which can limit overall network-wide savings.

• Driver and firmware updates: Outdated drivers or switch firmware may cause compatibility issues. Keeping systems updated ensures stable operation.

• Latency-sensitive applications: EEE wake-up times are measured in microseconds. While typically unnoticeable, ultra-low-latency environments (e.g., audio-over-IP or high-frequency trading) may prefer disabling EEE on critical links.

• Troubleshooting: If intermittent connectivity or performance issues occur, temporarily disabling EEE can help determine whether it is the cause.

What are the best practices for deployment in different environments?

Effective deployment of Energy-Efficient Ethernet (EEE) varies based on the network environment. Adhering to best practices ensures optimal energy savings without compromising performance.

Data centers and enterprise networks

In large-scale data centers and enterprise environments, EEE can deliver substantial energy and cost savings due to the sheer number of network ports.

• Phased rollout: Implement EEE in phases, starting with non-critical segments or areas with predictable low traffic periods. This allows for monitoring and troubleshooting without impacting core operations.

• Comprehensive audit: Before deployment, conduct a thorough audit of all network equipment (switches, servers, workstations) to confirm EEE (802.3az) compatibility. Prioritize upgrades for non-compliant devices in high-density areas.

• Centralized management: Utilize centralized network management systems (NMS) and monitoring tools (e.g., SNMP integration) to configure, monitor, and report on EEE status and power savings across the infrastructure.

• Performance baselines: Establish performance baselines (latency, throughput) before enabling EEE. Continuously monitor these metrics after deployment to detect any unexpected performance deviations, especially for latency-sensitive applications.

• Firmware and driver updates: Ensure all switches and NICs have the latest stable firmware and driver versions to guarantee optimal EEE functionality and avoid known compatibility issues.

• Consider high-speed links: High-speed uplinks and core switches often have higher power requirements, making them prime candidates for EEE to achieve significant savings during periods of low utilization.

Small office and Home networks (SOHO)

For smaller networks, while the absolute savings might be less than in enterprises, EEE still contributes to lower electricity bills and a greener footprint.

• Check device compatibility: Verify that your router/switch and connected devices (PCs, smart TVs, network-attached storage) support EEE. Many modern consumer-grade devices include EEE support, sometimes marketed as "Green Ethernet."

• Enable on both ends: Ensure EEE is enabled in the settings of both your switch/router and the individual network adapters of your client devices. This is often found in the advanced settings of the NIC driver.

• Monitor for issues: While rare, if you experience unusual network behavior (e.g., dropped connections, unexplained lag) after enabling EEE, try disabling it on specific devices or ports to isolate the issue.

• Router/Switch configuration: Access your router's or small office switch's web interface to find and enable EEE settings for its ports. If available, also utilize "Green Ethernet" features like cable length detection.

• Benefits for sporadic usage: SOHO networks often have periods of inactivity, making them ideal for EEE's power-saving capabilities during nights, weekends, or when specific devices are idle.

Across all environments, clear documentation of EEE configurations and regular monitoring are crucial to maximize benefits and quickly address any potential challenges.

What are the common use cases and applications for EEE?

Energy-Efficient Ethernet (EEE) finds broad application across diverse networking scenarios, offering significant energy savings and operational advantages without sacrificing performance.

Conclusion

Energy-Efficient Ethernet (EEE), standardized as IEEE 802.3az, improves network efficiency by allowing devices to enter Low Power Idle (LPI) during low traffic periods. This reduces power consumption, lowers costs, and supports environmental sustainability without affecting performance in most cases.

Unlike the broader term “Green Ethernet,” EEE is a defined standard that ensures consistent energy savings. Successful deployment depends on device compatibility and proper configuration. As demand for efficient IT infrastructure grows, EEE remains a key technology for reducing energy use and extending hardware lifespan.
