What is a chipset and why is it so important?

The chipset plays a critical role in a computer, serving as the motherboard’s central hub for data and communication. It controls how the CPU, memory, storage, graphics, and peripherals interact, directly impacting system performance, compatibility, and expandability. Knowing what the chipset is, its function helps you understand your computer’s capabilities.

What is a chipset?

A chipset is a set of integrated circuit "chips" on a motherboard that manages the data flow between a computer's core components. It acts as the "glue" or "traffic controller," ensuring that all parts of the system can effectively communicate and work together.

Initially, chipsets were literally a set of multiple chips, but modern designs often consolidate these functions into a single, more efficient unit.

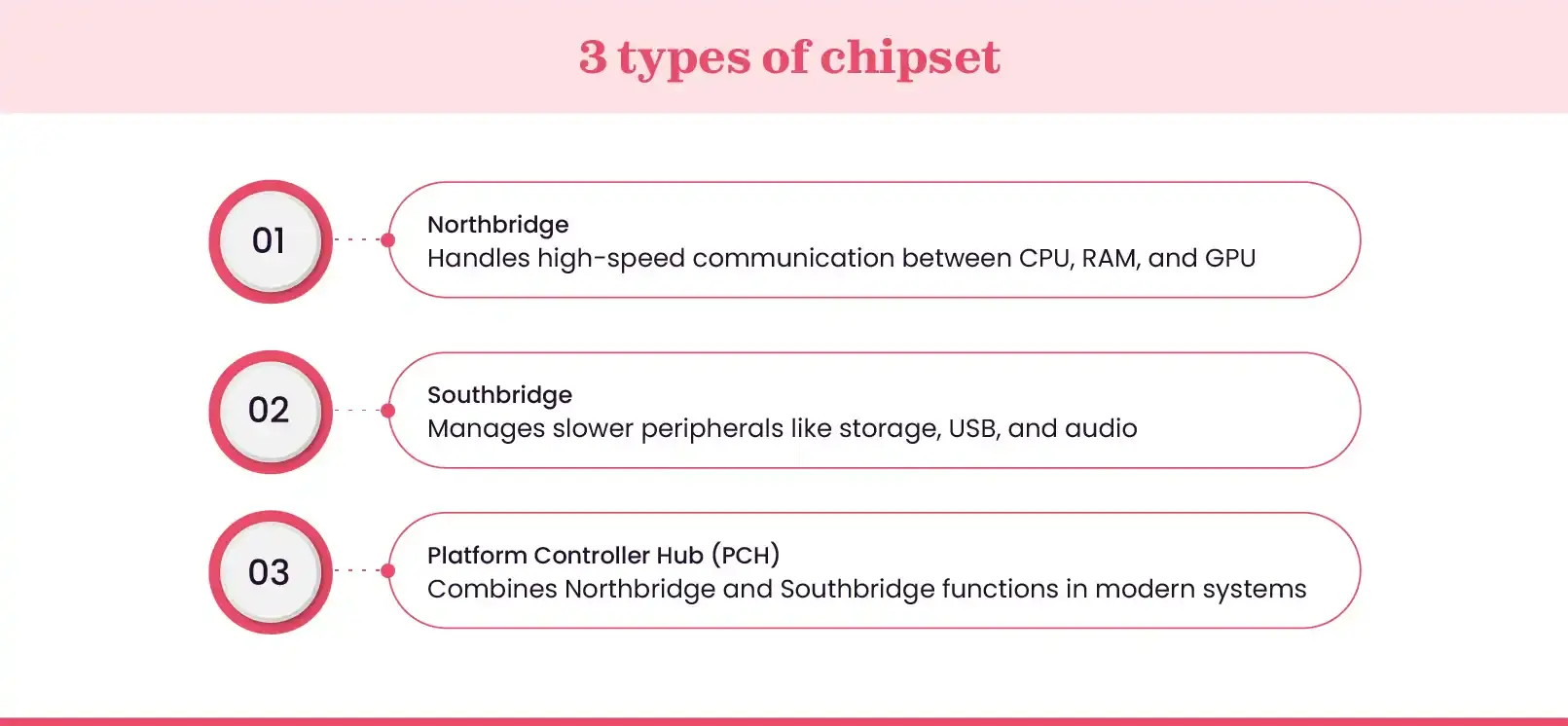

What are the types of chipset?

Chipsets come in different types, each designed to manage specific aspects of a computer’s data flow and connectivity.

• Northbridge: This chipset is responsible for high-speed communication between the CPU, RAM, and graphics controller. It acts as the primary data highway for performance-critical components, ensuring the processor can quickly access memory and handle graphical data efficiently. In modern systems, some Northbridge functions are integrated directly into the CPU.

• Southbridge: The Southbridge manages lower-speed peripheral devices, including storage drives, USB ports, audio controllers, and networking interfaces. While it doesn’t directly handle high-speed data like the Northbridge, it is essential for system stability, enabling smooth interaction with input/output devices and expansion cards.

Implementing effective network design strategies helps maintain smooth and reliable data communication across all connected devices.

• Platform Controller Hub (PCH): Found in most modern computers, the PCH integrates the functions of both Northbridge and Southbridge into a single chip. This consolidation improves efficiency, reduces latency, simplifies motherboard design, and supports advanced features like USB 3.0/4.0, SATA storage, and enhanced security and power management capabilities. It is the standard in current Intel and AMD platforms.

Why is the chipset so important?

The chipset is vital because it determines a computer's fundamental capabilities and overall performance potential. Its impact extends to various aspects of your computing experience.

• Traffic management: The chipset directs data flow between the CPU, RAM, storage, and peripherals, ensuring smooth and efficient communication.
• Component compatibility: It determines which processors, memory types, and expansion devices (PCIe cards, USB devices) are supported on a motherboard.
• Performance optimization: A high-quality chipset reduces latency, speeds up data transfer, and minimizes bottlenecks, improving overall system responsiveness and stability.
• Feature support: It enables modern technologies such as USB 3.0/4.0, SATA drives, onboard audio, networking, and overclocking capabilities.
• Power management: The chipset regulates power delivery across components, enhancing energy efficiency and extending battery life in laptops and mobile devices.
• System stability: Acting as the central hub, a reliable chipset reduces errors and prevents system crashes, ensuring smooth operation under heavy workloads.

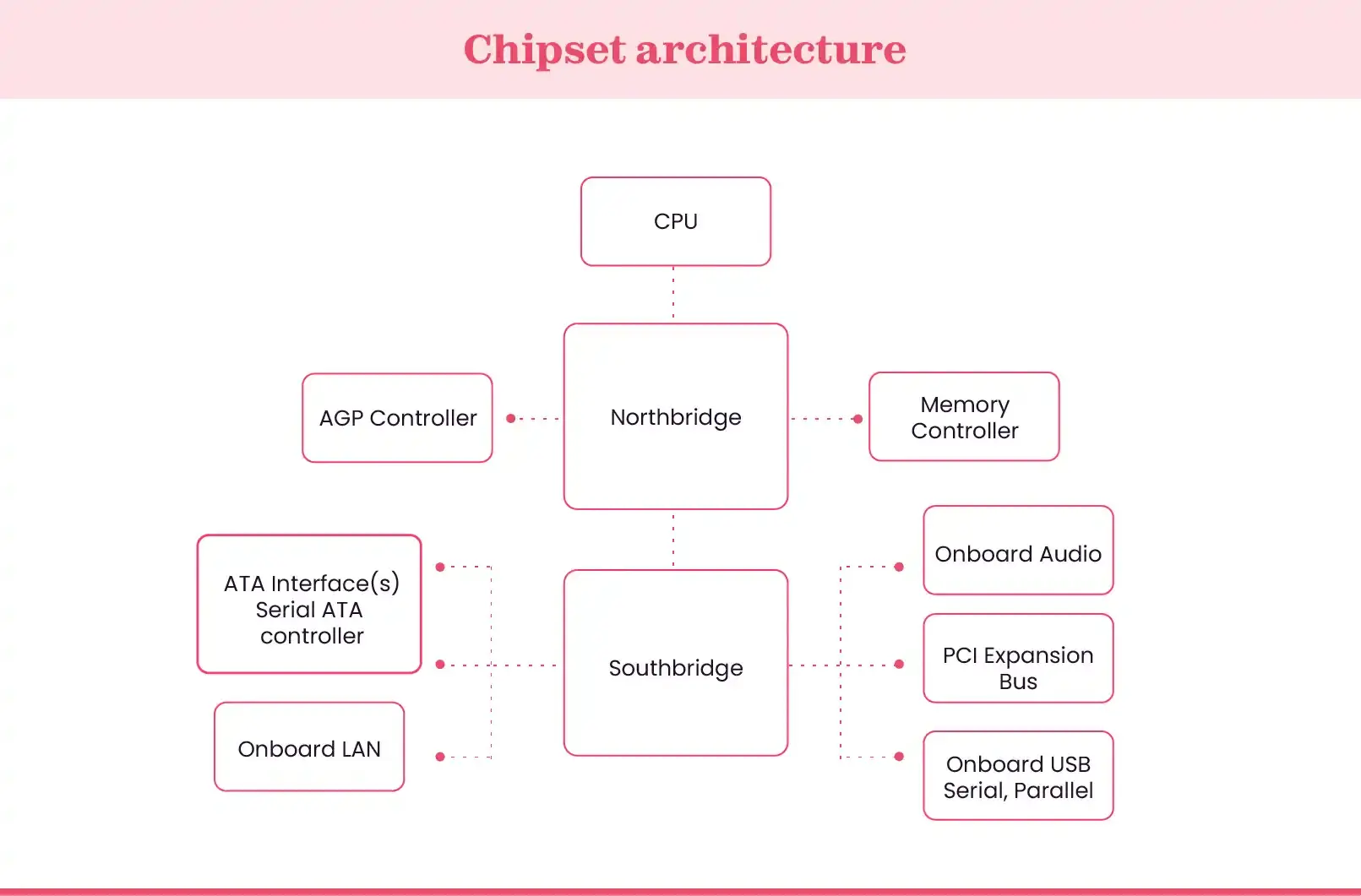

How does a chipset work?

A chipset acts as the central communication hub on a motherboard, directing data between the CPU, memory, storage, graphics, and peripheral devices. It ensures that information flows efficiently, prioritizing high-speed traffic to critical components while managing slower connections to I/O devices.

The Northbridge (or its integrated equivalent) handles high-speed interactions, such as CPU-to-RAM and CPU-to-GPU data transfer, while the Southbridge manages slower peripherals like USB ports, SATA drives, and audio devices. Modern systems use a Platform Controller Hub (PCH) that combines these functions, optimizing performance and reducing latency.

By coordinating data traffic, managing power delivery, and supporting essential system features, the chipset ensures the computer operates smoothly, efficiently, and reliably under all workloads.

Additional read: How does modern network monitoring look like?

How to identify the chipset of a device?

Identifying your device's chipset is straightforward, especially for desktop computers. This information is crucial for understanding compatibility and potential upgrades.

To identify your PC's chipset, you can use several methods:

1. Check the motherboard name (Desktop PCs)

For custom-built or prebuilt PCs, the chipset is often included in the motherboard model name. For example, in ASUS ROG STRIX B650E-E GAMING WIFI, "B650E" indicates the chipset. You can also find this information printed on the motherboard itself or in its documentation.

2. Use device manager (Windows)

• Open Device Manager via the Windows search bar.
• Expand the System Devices category.
• Look for entries containing keywords like chipset, Platform Controller Hub (PCH), or manufacturer names such as Intel, AMD, NVIDIA, VIA, or SIS, usually followed by a model code.

Using a Windows MDM makes it much easier to manage how files run across multiple devices, providing a complete guide to enforcing standardized application policies.

3. Use system information tools

• CPU-Z: Provides detailed information about CPU, motherboard (including chipset), memory, and graphics.
• Speccy: Offers a comprehensive overview of system components, including chipset.
• Windows System Information (msinfo32): May list the chipset under "Motherboard Manufacturer" or "Motherboard Model," though details can vary depending on integration.

4. Mobile devices (Smartphones & Tablets)

Chipset information is typically listed in the device specifications on the manufacturer’s website or within the device itself under Settings > About phone/tablet.

This approach ensures you can accurately identify your chipset for troubleshooting, upgrades, or performance optimization.

Chipset vs. CPU

While both the Central Processing Unit (CPU) and the chipset are indispensable to a computer's operation, they perform fundamentally different roles.

Chipset vs Motherboard

The terms "chipset" and "motherboard" are sometimes mistakenly used interchangeably, but they refer to distinct, albeit interdependent, components.

What are the limitations of the chipset?

While essential, chipsets do come with inherent limitations that users should be aware of:

• Non-upgradable: The chipset is permanently soldered to the motherboard, so upgrading it requires replacing the entire board. Its features (PCIe version, USB standards, overclocking support) are fixed.

• Compatibility restrictions: Chipsets support specific CPU families and generations, limiting future processor upgrades without a new motherboard.

• Limited PCIe lanes: High-performance setups with multiple GPUs or NVMe drives may exceed available lanes, reducing bandwidth for some devices.

• Heat generation: Advanced chipsets can produce significant heat, requiring additional cooling solutions.

• Power consumption: Chipsets add to overall system power draw, which is especially important in laptops and mobile devices.

Conclusion

The chipset is a crucial component on your motherboard that manages communication between the CPU, RAM, GPU, storage, and peripherals. From compatibility and high-speed connectivity to PCIe expansion and overclocking support, it shapes a system’s capabilities.

Modern chipsets, integrated as a Platform Controller Hub (PCH), are non-upgradable but define motherboard performance and features. Understanding its role helps users build stable, high-performing systems.
