What are web services and what are their types?

When it comes to modern digital ecosystem, software applications are expected to work together, share data, and access remote functionalities in real time. This essential machine-to-machine communication is made possible through web services. More than simple software components, web services offer a standardized, platform-independent, and flexible approach to integrating diverse systems over the internet.

This comprehensive guide explores what web services are, their significance, underlying technologies and more.

What are web services?

A web service is fundamentally a standardized method for two distinct software applications or systems to communicate and exchange data over a network, typically the internet. It acts as an interface that allows heterogeneous applications, developed on different platforms and in various programming languages, to interact seamlessly.

At its heart, a web service enables machine-to-machine interaction. Unlike websites, which are designed for human users interacting through a graphical interface, web services are built for programmatic access.

They allow one application (the "client" or "service requester") to send requests to another application (the "server" or "service provider") and receive structured responses, all without requiring either application to understand the internal workings of the other.

This communication is made possible through:

• Network accessibility: Web services operate over standard web protocols, primarily HTTP/HTTPS.

• Standardized messaging: They use common data formats like XML (Extensible Markup Language) or JSON (JavaScript Object Notation) to structure the exchanged data. These formats are universally understood, ensuring language and platform independence.

• Interface description: Web services often provide a machine-readable "contract" or description (like WSDL for SOAP services or OpenAPI/Swagger definitions for REST APIs) that details available functions, required parameters, and expected response formats.

Additionally, effective network design strategies help ensure efficient and reliable communication between all connected devices.

Why are web services important in modern applications?

Web services have become indispensable in modern software development due to their ability to foster integration and efficiency across complex ecosystems.

Interoperability across platforms

Web services allow applications built with different languages, operating systems, and hardware to communicate using standard protocols. For example, a Java app on Windows can interact with a Python app on Linux, ensuring smooth cross-platform data exchange.

Reusability and modularity

Web services promote reusable, modular design by allowing common functions, such as payment processing, authentication, or inventory management, to be built once and used by multiple applications. This reduces development time, minimizes errors, simplifies maintenance, and supports loose coupling between systems.

What is the role of web services in cloud computing and microservices?

Web services are fundamental pillars in modern architectural paradigms like cloud computing and microservices.

In cloud computing, web services facilitate the delivery and consumption of resources and functionalities (Software as a Service, Platform as a Service, Infrastructure as a Service) over the internet. Cloud-based applications heavily rely on web services to communicate with each other, external applications, and underlying cloud infrastructure components.

For microservices architecture, web services are the primary mechanism for inter-service communication. Microservices are small, independent services that run in their own processes and communicate using lightweight mechanisms, often HTTP-based APIs which are essentially RESTful web services. This design promotes agility, scalability, and resilience by allowing individual services to be developed, deployed, and scaled independently.

How do web services actually work?

Web services operate on a fundamental request-response model, typically over HTTP, using standardized data formats.

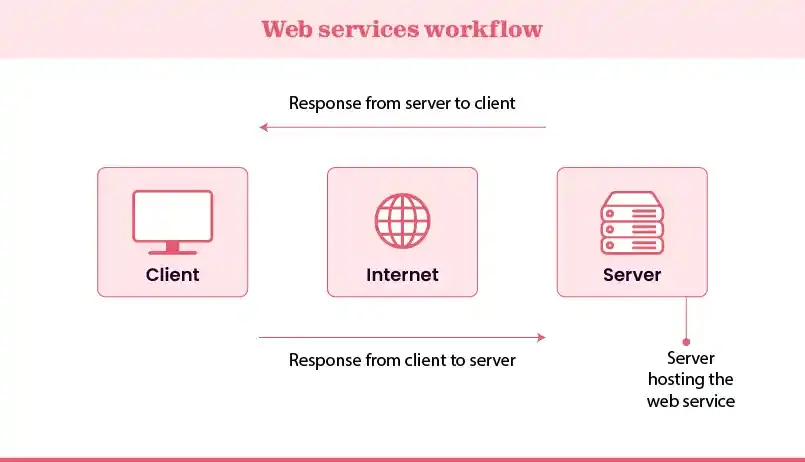

The client-server request-response model

The basic interaction follows a client-server request-response model:

1. A client application (service requester) identifies a need for a specific service or data from another application (service provider).

2. The client constructs a request message in a standardized format (e.g., XML or JSON).

3. This request message is sent over the internet (using protocols like HTTP) to the service provider.

4. The service provider receives, interprets, and processes the request.

5. After performing the requested action, the service provider generates a response message, also in a standardized format.

6. This response is sent back to the client, which then interprets the data and continues its operations.

The process: Discovery, messaging, and description

The complete lifecycle of a web service interaction involves several key stages:

• Service Description (WSDL): Before a client can use a web service, it needs to know how to interact with it. This is typically achieved through a Web Services Description Language (WSDL) file for SOAP services, or OpenAPI/Swagger definitions for REST APIs. This document describes:

• The service's location (URI).

• The operations it offers (functions).

• The input parameters required for each operation.

• The format of the output and potential error messages.

• Service Discovery (UDDI): Historically, Universal Description, Discovery, and Integration (UDDI) registries were intended to act as directories where web services could be published and discovered. While UDDI did not gain widespread adoption and most major vendors discontinued their UDDI solutions, the concept of discovery remains crucial. Modern service discovery often happens through API gateways, internal registries, or even simply through documentation and search.

• Messaging (SOAP/REST): Once a service is discovered and its description understood, communication occurs using messaging protocols or architectural styles like SOAP or REST, which define how the request and response messages are formatted and transmitted.

Additional read: How does modern network monitoring look like?

The role of XML and JSON in data exchange

For communication to be truly platform-independent, the data exchanged between applications must be in a universally understood format. This is where XML and JSON play a critical role.

• XML (Extensible Markup Language): XML is a markup language designed to store and transport data. It uses tags to define the structure and meaning of data, making it human-readable and machine-interpretable across different systems and programming languages. SOAP web services rely heavily on XML for their messaging format.

• JSON (JavaScript Object Notation): JSON is a lightweight data-interchange format that is easy for humans to read and write, and easy for machines to parse and generate. It has become particularly popular with RESTful web services due to its conciseness and native compatibility with JavaScript, making it ideal for web and mobile applications where bandwidth and performance are critical.

Both XML and JSON provide the necessary common language for data exchange, enabling applications to understand each other's messages regardless of their native environment.

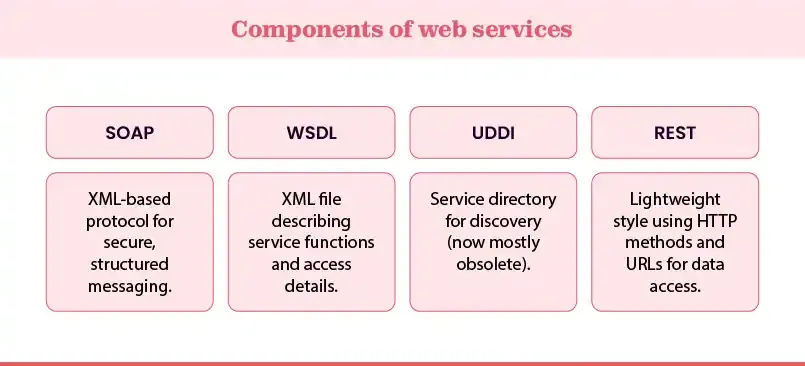

What are the key components of web services?

While the term "web service" can be broad, certain technologies and protocols are commonly associated with their implementation, particularly in the context of SOAP-based services, and to a lesser extent, REST.

SOAP (Simple Object Access Protocol)

SOAP is a messaging protocol for exchanging structured information in the implementation of web services. It is an XML-based protocol, meaning all SOAP messages are formatted using XML. SOAP messages are typically transmitted over HTTP or SMTP (Simple Mail Transfer Protocol) and consist of:

• Envelope: The root element that defines the start and end of the message.

• Header (optional): Contains attributes for message processing, such as security information or transaction IDs.

• Body: Contains the actual message content, which could be a request for an operation or the response data.

SOAP is highly structured and relies on strict definitions, often favored in enterprise environments requiring high security, transactional integrity, and formal contracts.

Additional read: What is network discovery?

WSDL (Web Services Description Language)

WSDL is an XML-based language used to describe the functionality offered by a web service. It acts as a contract between the service provider and the service requester, detailing:

• The operations (methods) a service provides.

• The data types of messages it sends and receives.

• The communication protocols it supports.

• The network address (endpoint) of the service.

A client application can read the WSDL file to understand how to interact with the web service, ensuring proper communication.

UDDI (Universal Description, Discovery, and Integration)

UDDI was an XML-based standard for describing, publishing, and discovering web services. Envisioned as a "phone book" for web services, its goal was to allow businesses to list their services and for other applications to find them programmatically. However, due to its complexity and the rise of alternative discovery methods, UDDI never achieved widespread adoption and is largely deprecated today.

REST (Representational State Transfer)

REST is an architectural style for designing networked applications, rather than a strict protocol like SOAP. RESTful web services (often called RESTful APIs) emphasize a stateless, client-server approach, treating all data as "resources" identifiable by unique URLs. Interactions with these resources are performed using standard HTTP methods:

• GET: Retrieve data.

• POST: Create new data.

• PUT: Update existing data (full replacement).

• PATCH: Partially update existing data.

• DELETE: Remove data.

REST is known for its simplicity, scalability, and flexibility, making it the dominant architectural style for web and mobile APIs.

SOAP vs REST

SOAP is a strict, protocol-based approach with built-in standards for security and reliability, while REST is a flexible architectural style that is lightweight, faster, and commonly used for modern web and mobile APIs.

What is the relationship between an API and a web service?

The terms "API" and "web service" are often used interchangeably, but there's a crucial distinction.

An API (Application Programming Interface) is a set of definitions and protocols for building and integrating application software. It is an interface that specifies how software components should interact.

Think of it as a menu in a restaurant: it lists what you can order, how to order it, and what kind of meal to expect. An API can be a library within a single application, a framework, or an interface exposed over a network.

A web service is a type of API that is specifically designed to operate over a network, typically the internet, using standard web protocols. All web services are APIs, but not all APIs are web services.

Are all APIs web services?

No, not all APIs are web services. This is a common point of confusion.

• All web services are APIs: By definition, a web service provides an interface for applications to interact, making it a form of API.

• Not all APIs are web services: An API can exist entirely within a local system, such as a set of functions in a programming library or an operating system's API. These APIs do not necessarily use network protocols like HTTP for communication and therefore are not "web services."

In summary:

• API: A broad term for any interface that allows software components to interact.

• Web Service: A subset of APIs that specifically use web protocols (like HTTP/HTTPS) to enable communication over a network.

What are the real-world examples and applications of web services?

Web services power much of our daily digital experience, often without us realizing it.

• E-commerce: Online stores query inventory web services to check product availability and real-time stock levels before confirming purchases.

• Travel industry: Booking sites aggregate flight, hotel, and car rental data from multiple provider web services to show real-time options and prices.

• Finance: Apps use web services for live currency exchange rates, stock prices, and market data from financial exchanges.

• Weather apps: Mobile apps request location-based weather services to display current conditions and forecasts.

What are the primary benefits of using web services?

Web services have a lot to offer to the users. Here, have a look at the primary benefits:

• Interoperability: As discussed, they allow diverse applications to communicate, regardless of their underlying technology stack.

• Reusability: Core business logic can be exposed as services and reused across multiple applications, reducing development effort.

• Loose coupling: Systems are weakly associated, meaning changes to the internal implementation of a service don't necessarily break consuming applications, as long as the interface remains stable.

• Platform independence: Based on open standards, they work across different operating systems, programming languages, and hardware.

• Scalability: Services can often be scaled independently to handle increasing loads.

• Cost-effective communication: Using HTTP as a transport protocol leverages existing internet infrastructure, making communication relatively inexpensive.

What are the common challenges with web services?

Though web services offer powerful integration capabilities, they also present several challenges.

• Complexity (especially SOAP): SOAP services, with their strict XML structures and extensive standards, can be complex to develop, configure, and debug, requiring specialized tools.

• Performance overhead: XML's verbosity can lead to larger message sizes compared to more lightweight formats like JSON, potentially impacting performance over slow networks.

• Security concerns: While SOAP offers robust security standards (WS-Security), implementing and managing them correctly can be intricate. For REST, securing APIs requires careful consideration of HTTPS, authentication (OAuth, API keys), and authorization.

• Discoverability (UDDI's failure): The initial vision for universal discovery through UDDI never materialized, requiring alternative, often less standardized, methods for finding services.

• Lack of state (REST): While statelessness is a benefit for scalability, managing session state across multiple requests can be challenging for developers when designing RESTful services.

Conclusion

Web services have transformed modern software by enabling seamless communication between applications across networks. They provide standardized methods for interoperability, reusability, and modular design, forming the foundation of cloud computing and microservices.

Whether choosing SOAP for strict security or REST for simplicity and performance, web services remain essential for efficient data exchange and the connected digital experiences we rely on daily.
