What is SMB (Server Message Block) and how does it work?

The Server Message Block (SMB) protocol is a foundational network file sharing protocol, indispensable for sharing resources across local networks and beyond. Originally developed by IBM in the 1980s and later evolved by Microsoft Windows, SMB allows applications to read and write to files and request services from server applications in a network environment.

Beyond simple file transfers, it plays a crucial role in interprocess communication, enabling different programs to interact across a network as if the resources were locally attached.

This comprehensive guide delves into what SMB (Server Message Block) is, its core functionalities, working and more.

What is SMB (Server Message Block)?

The Server Message Block (SMB) protocol is a client-server communication protocol designed to provide shared access to various resources over a network. These resources include files, directories, printers, and other peripherals.

Essentially, SMB allows client applications to securely open, read, move, create, update, and delete files on remote servers, as well as interact with server programs configured to respond to SMB client requests. This makes it a crucial component for collaborative and distributed computing environments, especially in enterprise settings.

How does SMB enable remote resource access?

SMB operates on a request-response model between clients and servers. When a client device (e.g., a user's computer or a smartphone) needs to access file storage on an SMB server (e.g., a file share or a network printer), it initiates the interaction by sending an SMB request.

Upon receiving this request, the server processes it and sends an SMB response back to the client. This exchange establishes a communication channel, allowing for a two-way conversation.

Once access is granted, the client can then perform desired actions on the remote resource as if it were locally available, such as reading documents, writing to files, or sending print jobs. Although SMB functions at the application layer, it relies on lower-level network protocols, primarily TCP/IP, for data transport.

Effective resource sharing starts with a solid foundation, which you can explore in our guide on network design for MSPs.

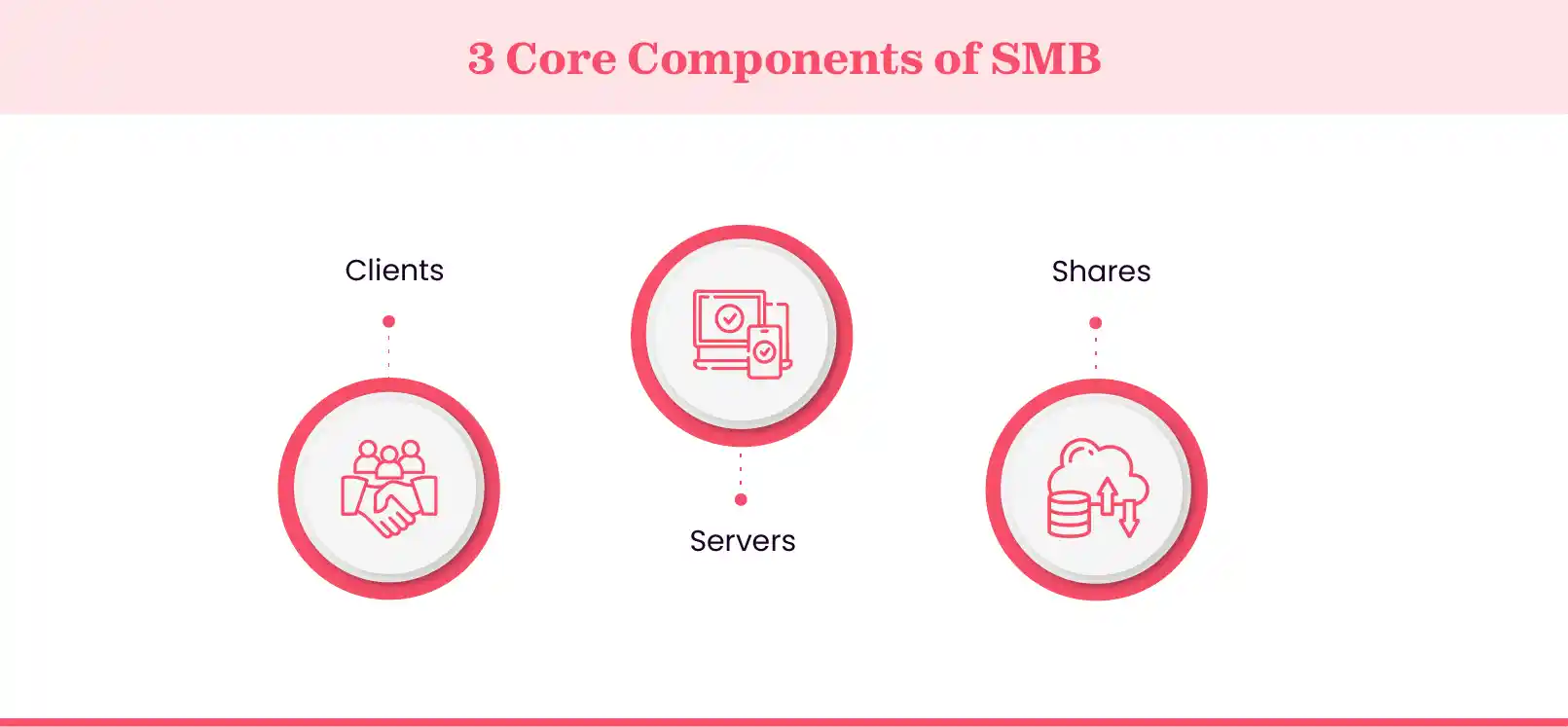

What are the key components of SMB?

Understanding the fundamental components of the SMB ecosystem is crucial to grasping its functionality:

• Clients: These are the devices or applications that initiate requests for network resources. Examples include desktop computers, laptops, smartphones, or other network devices that need to access shared files or use network printers.

• Servers: These devices host the shared resources and respond to client requests. A server might be a dedicated file server, a print server, a network-attached storage (NAS) device, or even another workstation configured to share its resources.

• Shares: These refer to the specific resources that a server makes available over the network. Shares can be entire directories (folders), individual files, printers, or other network services. Clients access these shares, not the entire server's disk, providing a controlled and permission-based approach to resource sharing.

The evolution of SMB Dialects

The journey of the SMB protocol reflects the evolving needs of network computing, from simple file sharing to robust, secure data fabric.

The SMB protocol originated in the 1980s within a group at IBM, designed primarily for file sharing in DOS environments. Its initial implementation introduced concepts like opportunistic locking (OpLock) for client-side caching to reduce network traffic.

Microsoft later adopted and significantly expanded SMB, integrating it into products like LAN Manager and eventually into the Windows Server operating systems. With Windows NT 4.0 and later Windows 95, Microsoft introduced its enhanced version of SMB under the name Common Internet File System (CIFS). CIFS added several improvements over the original SMB 1.0, including support for larger file sizes, direct transport over TCP/IP, and symbolic/hard links.

Is SMB the same as CIFS?

While the terms SMB and CIFS have historically been used interchangeably, particularly in older documentation and informal discussions, it's crucial to understand their distinct meanings in modern contexts.

CIFS (Common Internet File System) is not a separate protocol from SMB; rather, it refers to a specific dialect or implementation of the SMB 1.0 protocol developed by Microsoft. When Microsoft extended SMB, they branded this improved version as CIFS. Therefore, all CIFS implementations are technically SMB, but not all SMB versions are CIFS.

Today, distinguishing between these terms is paramount, especially concerning security. Modern SMB versions (2.x and 3.x) offer vastly superior security features and performance compared to the older CIFS/SMB 1.0.

Relying on the older terminology can lead to confusion and potentially compromise network security. Most experts now recommend disabling SMB 1.0/CIFS entirely due to its known vulnerabilities.

What are the different SMB versions?

The SMB protocol has undergone several significant revisions, each introducing improvements in performance, efficiency, scalability, and security.

SMB 1.0 (CIFS): The vulnerable original

SMB 1.0, later known as CIFS, was the first widely adopted version and provided basic file and print sharing. While reliable for its time, it relies on outdated architecture and lacks modern security features. This version is highly vulnerable to cyberattacks, including ransomware exploits like WannaCry. For this reason, SMB 1.0 is now considered obsolete and should be disabled.

SMB 2.x: Performance and efficiency gains

SMB 2.x introduced with Windows Vista, offered major improvements in speed, efficiency, and scalability. It reduced unnecessary network communication, improved performance over wide-area networks, and added stronger message signing for better security. These enhancements made SMB more reliable for growing business environments.

SMB 3.x: The modern standard for security and performance

SMB 3.x represents the modern standard, designed for today’s data centers and cloud environments. It introduced advanced new features such as SMB encryption, multichannel support for higher throughput, and failover capabilities for improved availability. With strong security protections and better performance, SMB 3.x is the recommended version for modern networks.

Keeping these dialects secure requires a proactive approach to updates, which you can manage effectively through server patch management.

How does the SMB protocol work?

The SMB protocol operates on a client–server model, enabling secure and efficient sharing of files, printers, and other network resources. At its core, SMB follows a request–response workflow: the client sends a request to access a resource, the server verifies permissions and performs the requested action, and then responds with the result or data.

This cycle forms the foundation of all SMB interactions.

Before any resources can be accessed, a connection is established through a handshake process. The client first opens a TCP connection (typically on port 445), negotiates the highest supported SMB version with the server, and then sets up a session by providing authentication credentials. Once verified, the client gains access based on its permissions.

With an active session, clients can perform various operations such as opening, reading, writing, creating, deleting, or closing files; listing, creating, or renaming directories; sending print jobs to shared printers; and even exchanging data between applications across different machines.

To improve performance, SMB uses Opportunistic Locking (OpLocks), which allows clients to cache file data locally and reduce network traffic. Level 1 OpLocks allow full read/write caching, Level 2 enables read-only caching for multiple clients, and Batch or Filter OpLocks optimize repeated access for multiple read-only users. SMB 2.1 further enhanced this with OpLock leasing, improving efficiency and response times.

Overall, SMB’s client–server design, handshake process, and caching mechanisms make it a reliable, secure, and high-performance protocol for network resource sharing.

Why is SMB security a critical concern?

Server Message Block (SMB) widespread use makes it a significant target for cyberattacks. Here’s why SMB security is critical:

1. Frequent targets of ransomware – SMB vulnerabilities have historically been exploited by ransomware strains, such as WannaCry and NotPetya, which leveraged SMB flaws to spread rapidly across networks.

2. Sensitive data exposure – SMB handles file sharing and network resource access, meaning an unprotected SMB service can expose sensitive organizational data to attackers.

3. Legacy protocol risks – Older versions like SMBv1 are outdated and lack modern security features, making them susceptible to attacks like man-in-the-middle (MITM) and credential harvesting.

4. Lateral movement for attackers – Once attackers gain access via SMB, they can move laterally within a network, compromising additional systems and escalating privileges.

5. Network-wide impact – Exploited SMB vulnerabilities can affect not just a single system but an entire enterprise network, amplifying the consequences of an attack.

6. Compliance and regulatory requirements – Many data protection regulations mandate secure network protocols; failing to secure SMB can lead to compliance violations and legal penalties.

Securing your data involves more than just protocol settings, so be sure to check our list of backup mistakes to avoid to protect your infrastructure.

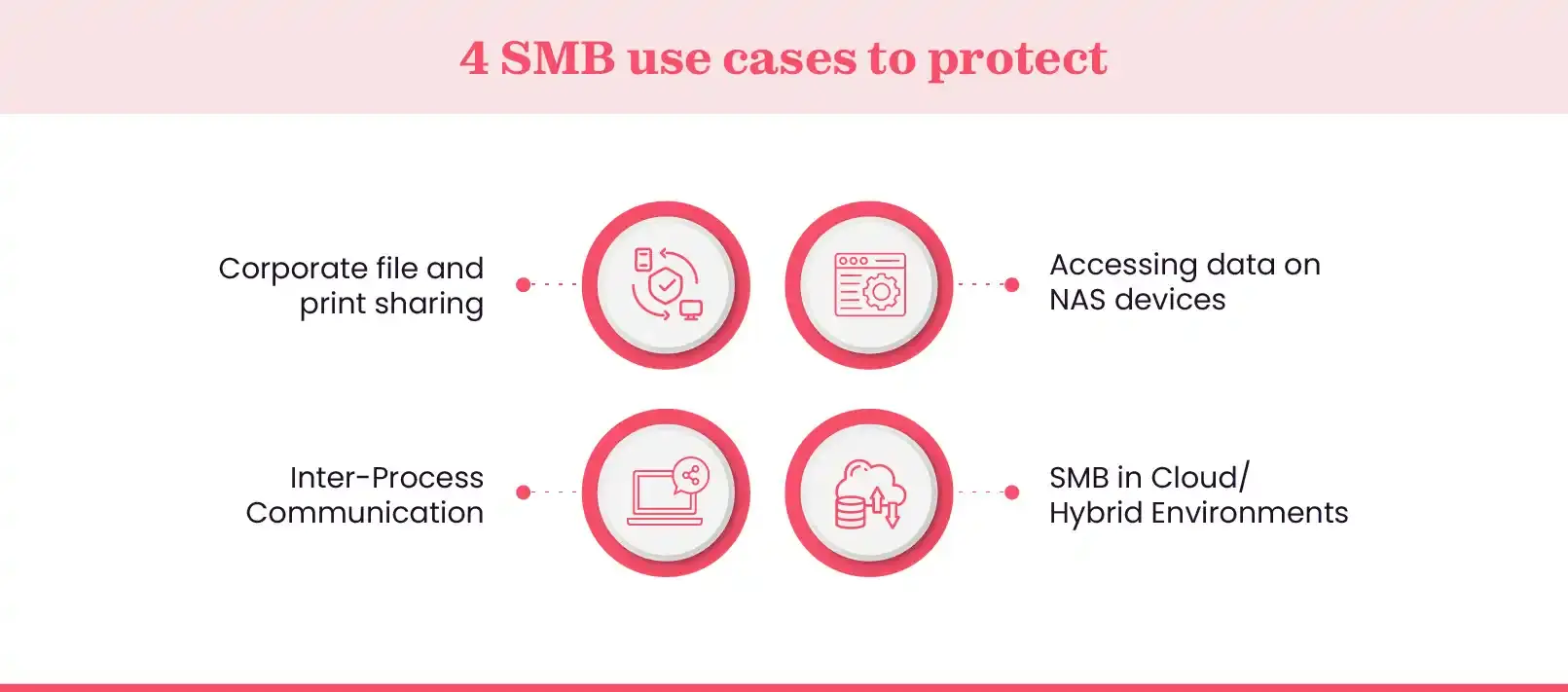

What are the common use cases and applications of SMB?

The SMB protocol is integral to many network operations, serving diverse purposes in both small and large organizations.

1. Corporate file and print sharing – SMB enables employees to share files, folders, and printers seamlessly across Windows-based networks, improving collaboration and resource accessibility.

2. Accessing data on Network Attached Storage (NAS) devices – Many NAS devices rely on SMB to allow multiple users and systems to read and write files over the network efficiently.

3. Inter-Process Communication (IPC) – SMB supports IPC mechanisms, allowing applications and services on different systems to communicate securely, exchange data, and coordinate tasks.

4. SMB in cloud and hybrid environments – Modern cloud platforms, such as Azure Files, leverage SMB to provide familiar file-sharing capabilities in cloud or hybrid deployments, enabling businesses to extend on-premises workflows to the cloud.

SMB’s flexibility across both local and cloud environments makes it a backbone protocol for file sharing and network communication in many IT infrastructures.

To see how SMB fits into different infrastructure choices, view our cloud vs. on-premise solutions infographic.

SMB vs. NFS (Network File System)

Both SMB and NFS are widely used file-sharing protocols, but they have different origins and primary domains of use:

SMB vs. FTP

SMB, FTP, and SFTP all deal with files over a network but are designed for different primary use cases:

Conclusion

The Server Message Block (SMB) protocol is a cornerstone of modern networking, enabling seamless resource sharing and inter-process communication across diverse environments. From its early origins at IBM to its extensive development and widespread adoption by Microsoft, SMB has continuously evolved to meet the demands of dynamic IT infrastructures.

The transition from the vulnerable SMB 1.0 (CIFS) to the highly secure and performant SMB 3.x series marks a critical turning point, emphasizing the importance of staying updated and implementing robust security practices. By understanding its working principles, embracing modern versions, and adhering to best security practices, organizations can harness the full potential of SMB for efficient, secure, and reliable network operations.
