What is a Remote Access Server (RAS) and how to set it up?

The ability to securely connect to a company’s internal network from outside the office has become indispensable for modern businesses. This capability is made possible by Remote Access Server (RAS) technology, which enables authorized users to access corporate systems, data, and applications from virtually anywhere.

This guide explores what a Remote Access Server is, how it works, its core functionalities, essential components, implementation considerations, and how it has evolved within today’s broader landscape of remote connectivity and secure access solutions.

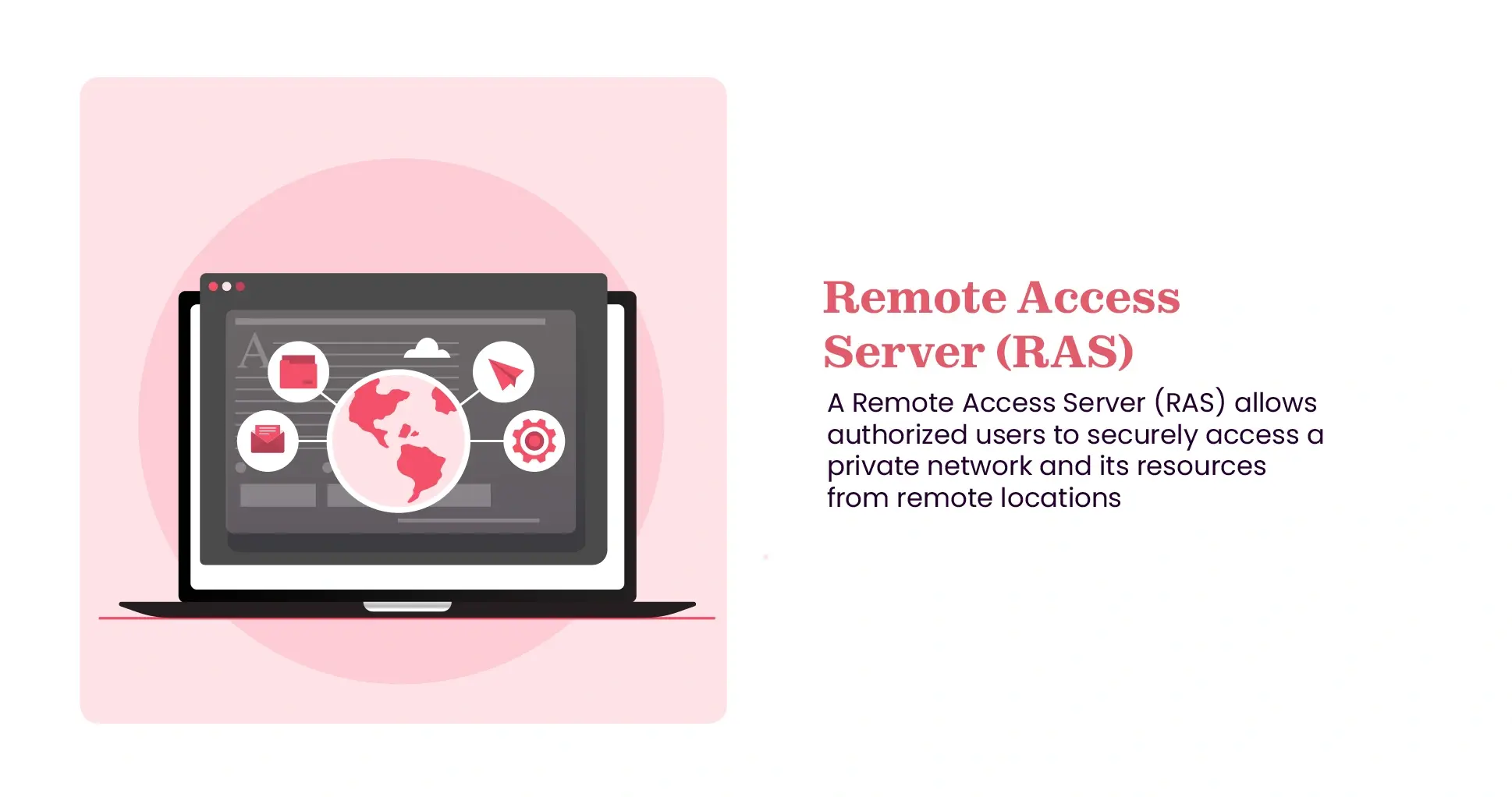

What is a Remote Access Server (RAS)?

A Remote Access Server (RAS) is a specialized server that provides a gateway for remote users or devices to connect to a private network, such as a corporate local area network (LAN).

It acts as an intermediary, allowing authorized users to access network resources and services as if they were physically present on the local network. This capability is crucial for enabling telecommuting, field operations, and access to internal systems from various off-site locations.

How is an RAS different from a standard network server?

A Remote Access Server (RAS) differs from a standard network server primarily in its function and client base. A standard network server is typically designed to provide shared resources, such as files, applications, and printers, to users who are already connected to the local network. Its primary role is resource hosting and management within the immediate network environment.

In contrast, an RAS server is specifically engineered to facilitate remote access to those internal resources for users who are outside the local network. It manages the connection establishment, authentication, and secure communication channels for external clients, effectively extending the network perimeter to remote users.

While a standard server focuses on serving users within the LAN, an RAS focuses on connecting users to the LAN from afar.

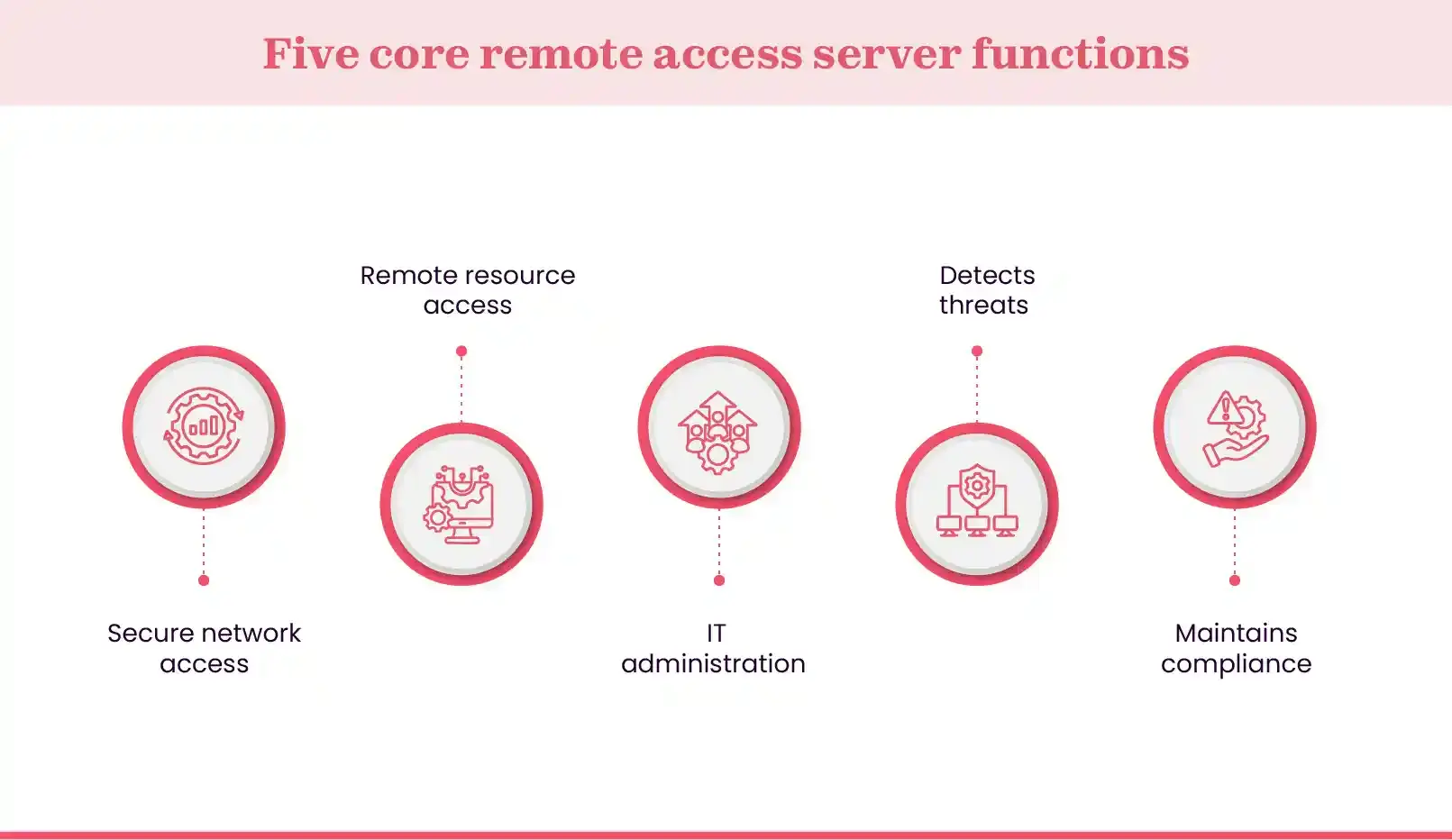

What tasks can a remote access server perform?

A Remote Access Server (RAS) enables organizations to operate smoothly with a distributed workforce by supporting several critical functions:

• Secure network access & connectivity: Provides a secure gateway for remote users by authenticating identities and establishing encrypted connections, ensuring only authorized access to internal networks over public internet connections.

• Remote resource access: Allows users to access shared files, internal applications (e.g., ERP or CRM systems), and network peripherals, effectively replicating the in-office experience from any location.

• IT administration & support: Enables IT teams to remotely manage systems, deploy updates, troubleshoot issues, monitor performance, and configure devices without needing on-site access.

• Security & monitoring: Enforces access policies, logs user activity, monitors connections, and integrates with authentication systems to help detect threats and maintain compliance.

• Specialized functions: Supports niche or legacy use cases, such as connecting point-of-sale systems, remote sensors, or industrial control systems to centralized networks for continuous operation and data collection.

What are the essential features of a Remote Access Server (RAS)?

To operate effectively and securely, a Remote Access Server (RAS) relies on several core features that ensure reliable connectivity, strong security, and scalable performance.

User authentication methods (RADIUS, TACACS+)

Authentication is critical for protecting remote access. RAS solutions commonly integrate with centralized authentication protocols to verify user identities and enforce consistent policies:

• RADIUS (Remote Authentication Dial-In User Service): Provides centralized Authentication, Authorization, and Accounting (AAA). The RAS forwards user credentials to a RADIUS server for verification, enabling unified security controls across the organization.
• TACACS+ (Terminal Access Controller Access-Control System Plus): Often used for network device administration, TACACS+ separates authentication and authorization, allowing more granular control and flexible policy enforcement.

Encryption and data security standards

To safeguard data transmitted over public networks, RAS platforms use secure tunneling and encryption protocols:

• PPTP (Point-to-Point Tunneling Protocol): An older tunneling protocol with basic encryption. Due to known vulnerabilities, it is now considered less secure and largely deprecated.
• L2TP (Layer 2 Tunneling Protocol): Creates a secure tunnel but relies on IPsec for encryption. When paired with IPsec, it provides strong protection for remote connections.
• IPsec (Internet Protocol Security): A robust suite of protocols that authenticates and encrypts IP packets, widely used to secure VPN tunnels and remote access traffic.

Scalability and concurrent connection support

An effective RAS must support a growing and fluctuating number of users without performance degradation. Key capabilities include:

• Concurrent connection handling allows many users to connect simultaneously.
• Scalable architecture that accommodates organizational growth and peak demand.
• Load balancing and clustering to distribute traffic and ensure high availability.

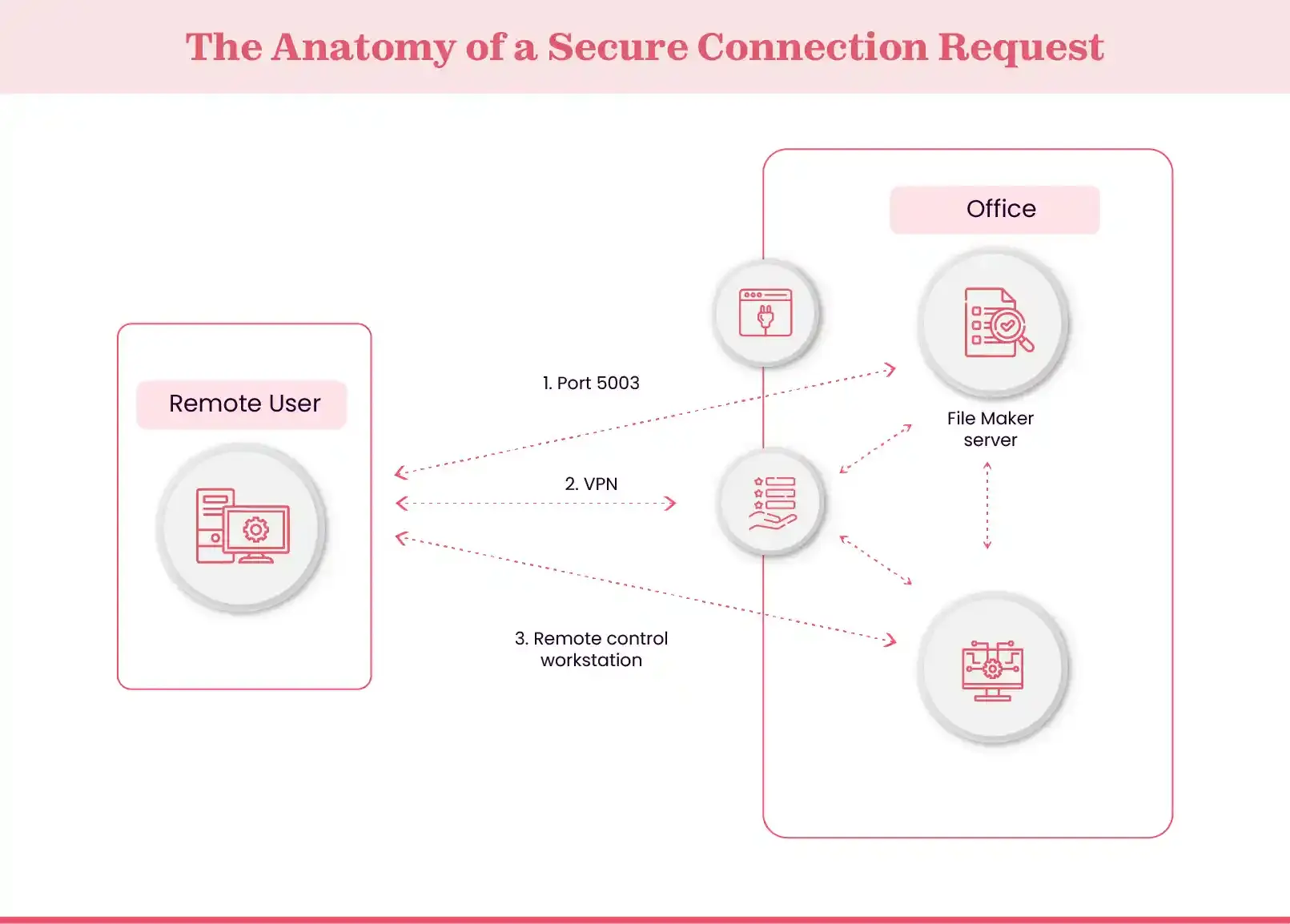

How to set up a Remote Access Server (RAS)?

Setting up a Remote Access Server involves configuring both the server and the client to establish a secure and functional connection.

• Client initiates connection: A remote user's device (e.g., laptop, smartphone) attempts to connect to the RAS. This typically involves using client software (often built into the OS or a dedicated VPN client).

• RAS receives request: The RAS, which listens on a specific network port, receives the incoming connection request.

• Authentication: The RAS prompts the client for credentials (username, password). These credentials are then sent to an authentication server (e.g., a RADIUS server or Active Directory) for verification.

• Authorization: If authentication is successful, the authentication server informs the RAS whether the user is authorized to access the network and what resources they are permitted to use.

• Tunnel establishment & encryption: A secure tunnel is established between the client and the RAS using a specific protocol (e.g., PPTP, L2TP/IPsec). Data exchanged through this tunnel is encrypted to ensure confidentiality and integrity.

• IP address assignment: The RAS assigns the remote client an IP address, making the client appear as if it is part of the local network.

• Resource access: The client can now access network resources according to the authorized permissions.

What are the key protocols that enable remote connections?

While more modern protocols are prevalent today, earlier Remote Access Servers relied heavily on specific data link layer protocols:

• PPP (Point-to-Point Protocol): This protocol is a standard for encapsulating network layer protocols (like IP) over a point-to-point link. PPP was widely used to establish direct connections over modems, ISDN lines, and later, for initial broadband connections. It provides a standard way to transmit data packets, handle authentication, and negotiate network configurations.

• SLIP (Serial Line Internet Protocol): An older and simpler protocol than PPP, SLIP was primarily used for transmitting IP packets over serial lines, such as dial-up connections. It lacks many of the advanced features of PPP, such as error detection, compression, and robust authentication, making it largely obsolete in modern networking environments.

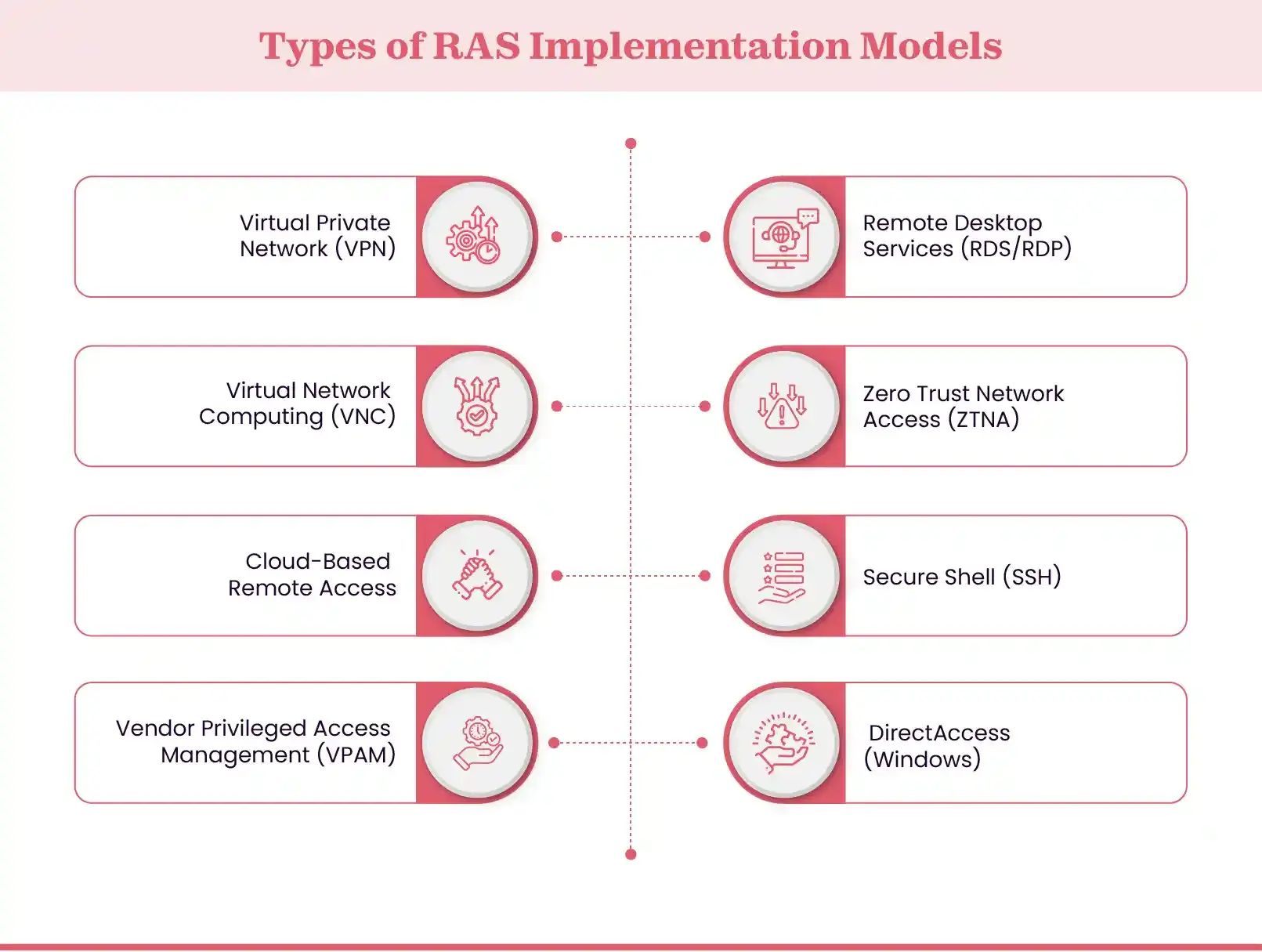

What are the types of Remote Access Server implementations?

Remote Access Servers can be deployed in several ways, each designed to meet different operational and security needs. Below are the most common implementation models used in modern environments.

Virtual Private Network (VPN)

A VPN-based RAS establishes an encrypted tunnel between a remote device and the corporate network over the internet. This approach allows remote users to function as if they are physically on-site, with full access to internal systems and resources. Popular technologies include OpenVPN, WireGuard, and IPsec/L2TP.

Remote Desktop Services (RDS/RDP)

Remote Desktop solutions enable users to connect to a complete graphical desktop hosted on a remote machine. Commonly used in Windows environments, this method is ideal for IT administrators managing servers and employees accessing their workstations from home.

Virtual Network Computing (VNC)

VNC provides cross-platform remote desktop control using a graphical interface. Because it is platform-independent, it is often used in mixed operating system environments where flexibility is required.

Zero Trust Network Access (ZTNA)

ZTNA represents a modern, security-first approach to remote access. Instead of granting full network visibility, it provides access only to specific applications. Each session is validated based on user identity, device posture, and contextual risk, significantly reducing attack surfaces.

Cloud-Based Remote Access

This model delivers secure access to applications and systems hosted in cloud platforms such as AWS or Azure through web-based portals. It supports distributed teams by removing reliance on on-premises infrastructure.

Secure Shell (SSH)

SSH enables secure command-line access to servers and network devices. It is widely used by system administrators for configuration, maintenance, and automation tasks in Linux, Unix, and network appliance environments.

Vendor Privileged Access Management (VPAM)

VPAM solutions provide controlled, time-limited access for third-party vendors and contractors. This ensures maintenance tasks can be completed without exposing the broader network or sensitive systems.

DirectAccess (Windows)

DirectAccess is a Windows-specific technology that automatically connects managed devices to the corporate network in the background. Users do not need to manually initiate a VPN session, improving usability while maintaining secure connectivity.

What is the difference between Remote Access Server (RAS) vs. VPN?

A Remote Access Server is the overall system that enables and manages remote connectivity, while a VPN is one of the key technologies it uses to secure those connections.

How to secure remote access infrastructure?

Given that a Remote Access Server acts as a gateway to your internal network, its security is paramount. A compromised RAS can provide attackers with direct entry into sensitive systems.

• Require multi-factor authentication with centralized identity management and least-privilege access.

• Use modern encrypted protocols and disable outdated or weak encryption methods.

• Continuously verify users and devices while granting only application-level access.

• Ensure devices are patched, secured, and validated before allowing access.

• Log and monitor all remote sessions to detect anomalies and suspicious behavior.

• Isolate critical systems and restrict users to only necessary resources.

• Provide time-limited, monitored access with session recording for accountability.

• Implement redundancy, backups, and regular testing to maintain service continuity.

Conclusion

Remote Access Servers have been instrumental in enabling organizations to support remote work in an increasingly connected world. Evolving from early dial-up solutions to today’s secure VPN-based systems, RAS technologies now form the backbone of safe and reliable remote connectivity.

By combining strong authentication, strict access controls, modern encryption, and ongoing monitoring, organizations can provide flexible access to internal resources while protecting critical systems and sensitive data.
